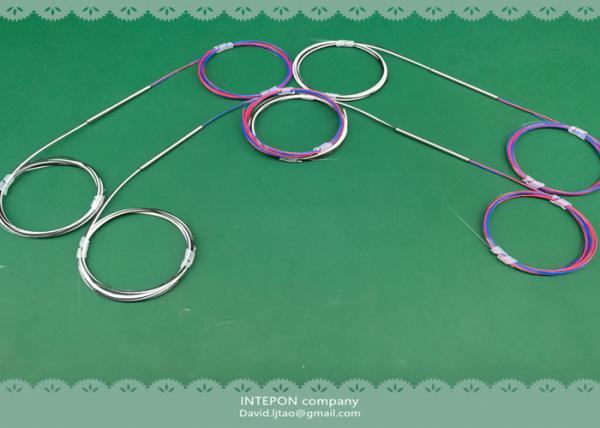

Fiber coupler, made in China, 2x2 port, 33:67, 900um loose tube, 3.0x45mm.
Fiber coupler, made in China, 2x2 port, 33:67, 900um loose tube, 3.0x45mm.
Specifications
Brand Name :
INTEPON
Model Number :
fiber coupler
Certification :
RoHS, ISO9001:2015
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
3000 pcs per month
Wavelength :
1310nm
Type :
2x2 port
Window :
single window
Coupling ratio :
33:67
Fiber type :
900um loose tube
Connector type :
without connector
Insertion loss :
33%≤5.7dB, 67%≤2.2
Packaging size :
3.0x54mm
Description

Fiber coupler, made in China, 2x2 port, 33:67, 900um loose tube, 3.0x45mm.

The fiber coupler is a general fiber device which is widely used in CATV network. The coupling ratio can be chosen according to customer's requirements.

We can't promise you that our price is the lowest price in this field but we can provide you the moderate price.

If you have no idea about the coupling ratio, you can provide your insertion loss to us.

Features

Window: single window

Low insertion loss

Coupling ratio: 33%: 67%

Directivity: ≥55dB

PDL: ≤0.15dB

Compact size: 3.0x54mm package size

Applications

split the light signal

CATV network

FTTH system

Fiber sensor

Specifications
Parameters Unit Specification
Operating wavelength Range nm 1310
Insertion loss dB ≤5.7/≤2.2
Polarization Dependent Loss (PDL) dB ≤0.15
Coupling ratio % 33:67
Packge size mm 3.0x54
Directivity dB ≥55
Return Loss dB ≥50
Power handling(mW) mW ≤500
Pigtail length m 1m or special
Port color - 1m or special
Tensile Load N ≤5
Operating Temperature C -5 to +70
Storage Temperature C -40 to +85
Remark
* Above specifications are tested without connector at room temperature
With connector, 0.3dB higher for IL & 5dB lower for RL per connector.

Fiber coupler, made in China, 2x2 port, 33:67, 900um loose tube, 3.0x45mm.

Q&A:

Q: What's your Payment terms?

A: We accept TT & Western Union for payment.

Q: How to order a sample?

A: You can contact us directly and tell us your requirements on any of our products.

Q: Could you print our company logo or design on the products?

A: Yes, we can accept your need but we will share the charge with you.

Q: If we decide to move forward with our order what is the next step?

A: You place an order first. Then we will send you PI. After you settle the payment by TT or the Western Union. We will arrange production for you.

Q: What is your normal production lead time for a first order and then for repeat orders?

A: It depends on the product you need. For example, if you purchased a 1550nm fiber circulator for your first order, and then you look for it again, but we will check the material of it and tell you the delivery time.

Q: Do you have warranty policy?

A: Yes, we have. We provide 12 months maintenance warranty.
