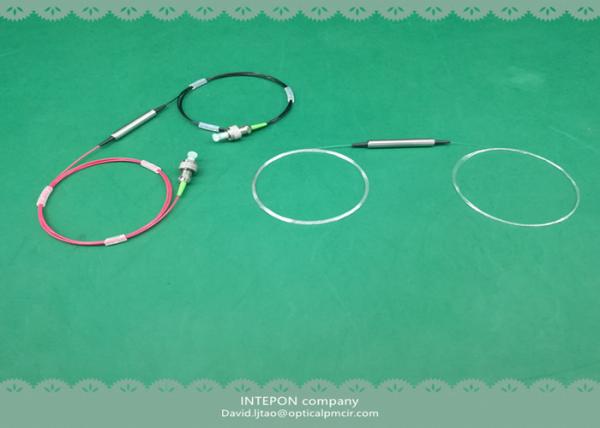

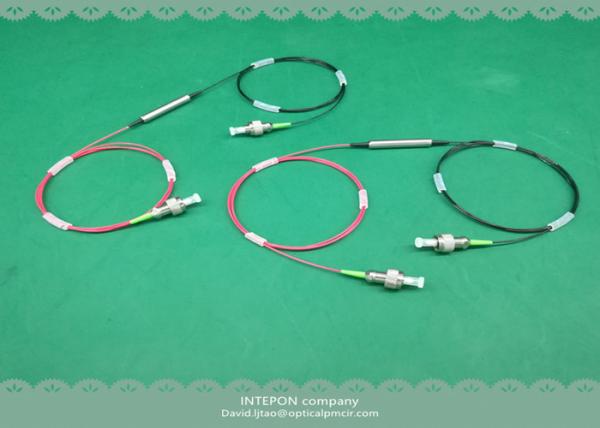

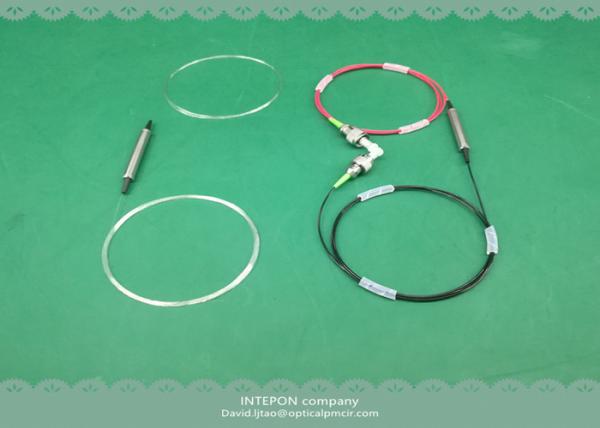

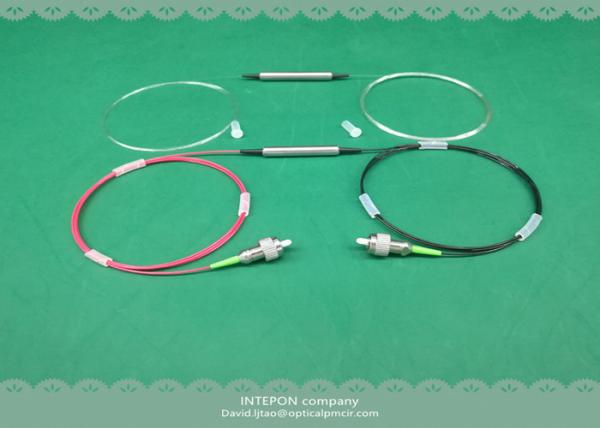

Isolator+WDM hybrid device, T1060R980, single stage, forward pump, 20dB extinction ratio, SM98-PS-U25D
Isolator+WDM hybrid device, T1060R980, single stage, forward pump, 20dB extinction ratio, SM98-PS-U25D
Isolator+WDM hybrid device, T1060R980, single stage, forward pump, 20dB extinction ratio, SM98-PS-U25D
Isolator+WDM hybrid device, T1060R980, single stage, forward pump, 20dB extinction ratio, SM98-PS-U25D
Isolator+WDM hybrid device, T1060R980, single stage, forward pump, 20dB extinction ratio, SM98-PS-U25D
Isolator+WDM hybrid device, T1060R980, single stage, forward pump, 20dB extinction ratio, SM98-PS-U25D
Isolator+WDM hybrid device, T1060R980, single stage, forward pump, 20dB extinction ratio, SM98-PS-U25D
Isolator+WDM hybrid device, T1060R980, single stage, forward pump, 20dB extinction ratio, SM98-PS-U25D
Specifications
Brand Name :
INTEPON
Model Number :
Isolator+WDM
Certification :
RoHs, ISO9001:2015
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
300~500pcs per month
Wavelength :
T1064/R980
Insertion loss :
≤1.8dB
Fiber type :
Fujikura SM98-PS-U25D
Connector type :
FC/APC
Package size :
5.5x35mm
Extinction ratio :
20dB
Description

Isolator+WDM hybrid device, T1060R980, single stage, forward pump, 20dB extinction ratio, SM98-PS-U25D.

The IWDM is based on isolator core & filter. An IWDM device equals to an isolator with WDM. if you want to use two functions, you can just use one device to achieve your target.

Features

Extinction ratio: ≥20dB

Compact size: 5.5x35mm package size

Fiber type: SM98-PS-U25D

Connector type: FC/APC

Return loss: ≥50dB

Applications

Fiber amplifier

Fiber optic instrument

Fiber sensor

PM EDFA

Fiber lasers

Specifications
Parameters Unit Specification
Operating wavelength Range nm 1060/980
Insertion loss (signal to common) dB ≤1.8
Insertion loss (common to reflect) dB ≤0.5
Extinction Ratio dB ≥20
Fiber type dB SM98-PS-U25D
Directivity dB ≥50
Return Loss dB ≥50
Power handling(mW) mW ≤500
Pigtail length m 0.8m or other
Port color - Black&Clear
Tensile Load N ≤5
Operating Temperature C -5 to +70
Storage Temperature C -40 to +85
Remark

* Above specifications are tested without connector at room temperature

Isolator+WDM hybrid device, T1060R980, single stage, forward pump, 20dB extinction ratio, SM98-PS-U25D

Q&A:

Q: What's your Payment terms?

A: We accept TT & Western Union for payment.

Q: How to order a sample?

A: You can contact us directly and tell us your requirements on any of our products.

Q: Could you print our company logo or design on the products?

A: Yes, we can accept your need but we will share the charge with you.

Q: If we decide to move forward with our order what is the next step?

A: You place an order first. Then we will send you PI. After you settle the payment by TT or the Western Union. We will arrange production for you.

Q: What is your normal production lead time for a first order and then for repeat orders?

A: It depends on the product you need. For example, if you purchased a 1550nm fiber circulator for your first order, and then you look for it again, but we will check the material of it and tell you the delivery time.

Q: Do you have warranty policy?

A: Yes, we have. We provide 12 months maintenance warranty.
