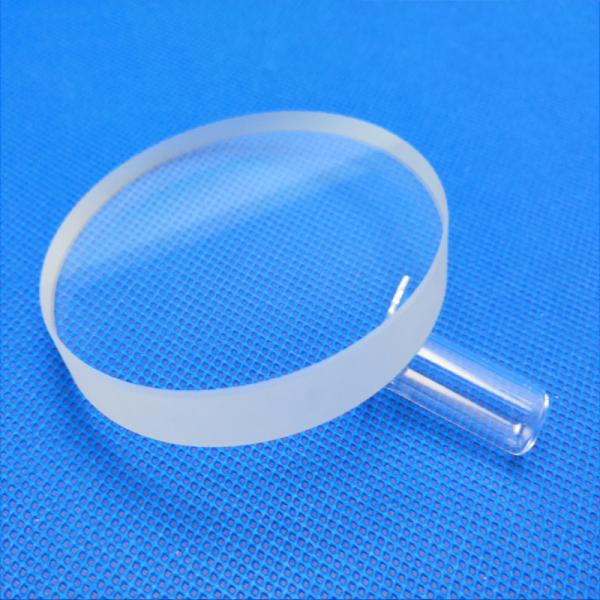

Custom High Purity Synthetic Quartz Glass Plate For Optical
Custom High Purity Synthetic Quartz Glass Plate For Optical
Specifications
Brand Name :
ZCQ
Model Number :
ZCQ
Certification :
SGS,ISO
Place of Origin :
CHINA
MOQ :
1pc
Price :
USD 1 to 100/day
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000000pcs/week
Delivery Time :
5-8 work day
Packaging Details :
Wooden box
Material :
Fused Silica
Purity :
99.999%
Applications :
Optical
Surface :
Polished
Work temperature :
1100degree
Dimension :
Accurate, tight tolerance
Description

Custom High Purity Synthetic Quartz Plate for Optical

Synthetic Quartz Property
Density 1.92*103kg/m3
Compression Strength >1.0*109Pa(N/m2)
Coefficient of Thermal Expansion 5.4*10-7cm/cm°C
Thermal Conductivity LOW
Specific Heat 640J/kg°C
Softening point 1600°C
Annealing point 1050°C

Specification Of ZCQ Supply Synthetic Quartz Plate

Parameter Standard Grade Precision Grade Ultra-precision Grade
Dimensional Tolerance +/-0.1 +/-0.1 +/-0.1
Clear Aperture >80% to >90% >80% to >90% >80% to >90%
Surface Quality 60-40 40-20 20-10 to 10-5
Parallelism 1 arc min 30 arc seconds 1 arc min
Wavefront Distortion 1λper 25mm λ/4 λ/10
Protective Bevel <0.25x45 deg <0.25x45 deg <0.25x45 deg
Coating Optional Optional Optional
Dimension Depends on material
Thickness Depends on material

Custom High Purity Synthetic Quartz Glass Plate For Optical
