Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
Specifications
Brand Name :
ZCQ
Model Number :
Custom
Certification :
RoHs
Place of Origin :
China
MOQ :
Ten piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
2-4 weeks
Packaging Details :
Standard Safe
Material :
Quartz Glass or Borosilicate Glass
Dimension :
φ0.125mm, φ0.126mm, etc.
Application :
Optical Fiber Sleeves
Surface :
Transparent
Resistivity :
7×107Ω.cm
Dielectric Strength :
250～400Kv/cm
Dielectric Constant :
3.7～3.9
Dielectric absorption coefficient :
<4×104
Dielectric loss coefficient :
<1×104
Deformation Point :
1280℃
Description

High Precision Custom Glass Capillary Tubes with Conical Funnel for Fiber Sleeves

High purity Capillary Quartz Tubes & Rods(or Quartz/Glass Capillary Tubes & Rods) with its optical, physical, mechanical, electrical, and other outstanding features, are widely used in optical fiber and communication industry such as PLC Splitter, Wavelength Division Multiplexer (WDM), Fiber Optic Sensor (FOS), Fiber Optic Sensors, Optical Fiber Communication Systems and other optical fiber transmission facilities. Quartz Capillary Tubing is the essential component and required material of the Gas Chromatographs, High Performance Capillary Electrophoresis Chromatograph (HPCE), High Performance Liquid Chromatograph (HPLC) and Micro fluidics instruments in Electronic, Medical Treatment, and Optical industry.

Square capillary
Parameter Diameter Tolerance 单Unit
Length 1~2000 ±0.2 mm
Width 0.3x0.3~6x6 ±0.03
ID 0.1x0.1~5x5 ±0.03
Material Quartz glass, borosilicate glass, and other materials
Specification Other dimensions and tolerances can be manufactured according to customer requirements

Capillary rod
Parameter Diameter Tolerance Unit
Length 1-2000 ±0.2 mm
Square side length 0.2-6 ±0.03
Round diameter 0.06-5 ±0.03
Material Quartz glass, borosilicate glass, and other materials
Specification Other dimensions and tolerances can be manufactured according to customer requirements

Circular capillary
Parameter Diameter Tolerance Unit
Length 1~2000 ±0.2 mm
OD 0.2~6 ±0.03
ID 0.06~5 ±0.03
Material Quartz glass, borosilicate glass, and other materials
Specification

Other dimensions and tolerances can be manufactured according to customer requirements

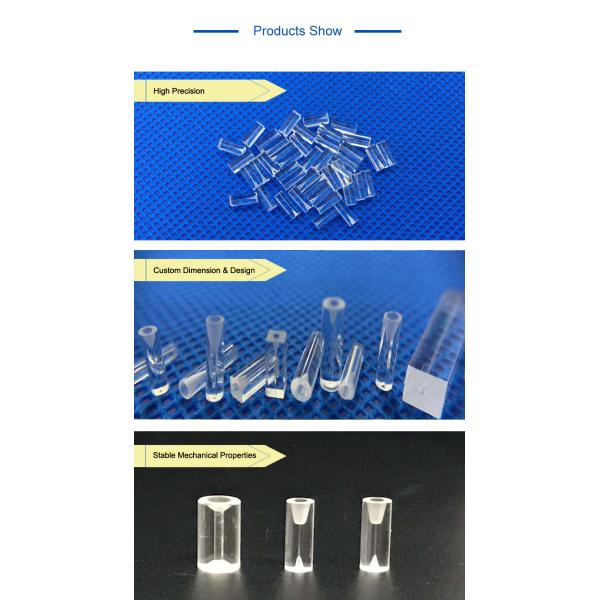

Conical Funnel Square Glass Capillary Tube For Fiber Sleeves

Conical Funnel Square Glass Capillary Tube For Fiber Sleeves

Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
