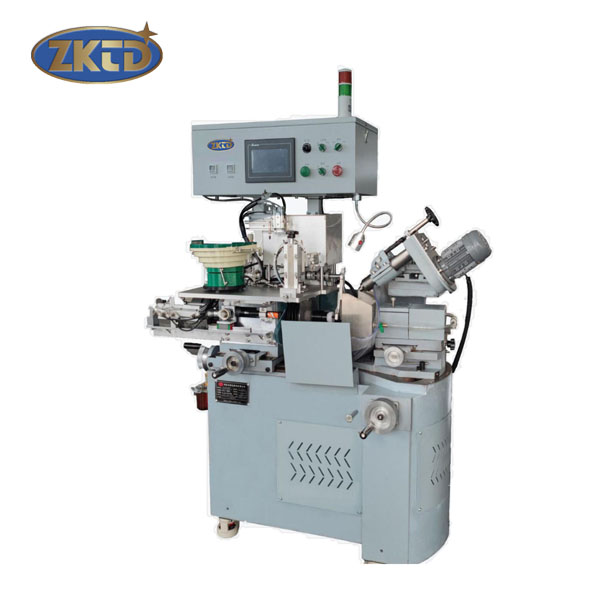

Vibrating Disc Automatic Mill Grinding Machine

The machine is suitable for spherical milling of small and medium-sized optical glass to meet the requirements of size and appearance.

1) Equipped with automatic feeding vibrating plate to replace manual feeding and reduce manual labor intensity;

2) The micrometer equipped with data transmission can automatically identify the difference between the two sides of the lens and automatically turn the glass to meet the demand;

3) Configure vacuum detection to monitor the vacuum degree of glass adsorption in real time to avoid empty pieces;

4) The pressure and damping can be adjusted to avoid glass processing and crushing;

5) 7 "touch screen is configured, and all parameters and buttons can be set, checked and troubleshooting through the screen;

6) The cast iron base of the whole machine, the matching surface is scraped and formed, the structural design is reasonable, and has the characteristics of precision, stability and high efficiency;

7) The appearance of the whole machine is neat and beautiful.

System composition: (residual current protection device must be included to meet Party A's requirements on safety and environment.)

1) The vibrating disk is used as the workpiece carrier to stack a large amount of workpieces;

2) Complete the functions of reclaiming, transportation, centering and clamping through a variety of cylinder combinations;

3) External common buttons for easy adjustment;

4) Touch screen live 3D picture, the buttons are intuitive and clear, not prone to mis-operation;

5) Convenient parameter setting and intuitive fault detection;

6) Install fixed protective covers at all transmission parts;

7) Install safety switch and safety lock on each box cover;

Main Technical Specification

List of main accessories and maintenance parts

See Technical Specification of the Equipment
