36rpm Optical Manufacturing Equipment Spherical Surface Milling Grinding
36rpm Optical Manufacturing Equipment Spherical Surface Milling Grinding
Specifications
Brand Name :
ZKTD
Model Number :
ZKTD-MG80(A)
Certification :
NONE
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
T/T
Supply Ability :
100 SETS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
EXPORT PACKING STANDARD
Maximum machining diameter :
Φ 80mm
Controllable workpiece stroke :
70mm
Rotation range of rotating carriage :
0～45°
Chamferer inclination :
0～45°
Grinding wheel spindle speed :
8000/11000rpm
Workpiece spindle speed :
0-36rpm (Infinitely Variable Speeds)
Spindle power :
1.1KWX2p
Workpiece motor :
0.12KW(1:40)
Description

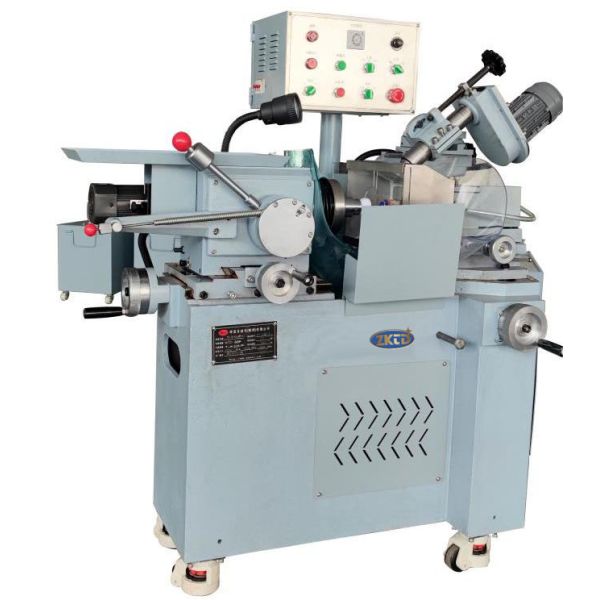

Spherical Surface Milling Grinding Machine

Spherical Surface Milling Grinding Machine is a kind of machine for machining medium and small spherical parts. It is mainly suitable for milling concave and convex spherical mirrors, as well as machining plane mirrors. It is suitable for milling brittle materials such as optical glass, sapphire, ceramics and crystal.

The machine has the characteristics of high efficiency and precision, simple operation, convenient maintenance, beautiful and stable, and does not need special technology. Chamfering device accessories are selected according to requirements.

36rpm Optical Manufacturing Equipment Spherical Surface Milling Grinding

Specification of Spherical Surface Milling Grinding Machine

Sr. Description Value
1 Maximum machining diameter Φ 80mm
2 Controllable workpiece stroke 70mm
3 Rotation range of rotating carriage 0～45°
4 Chamferer inclination 0～45°
5 Grinding wheel spindle speed 8000/11000rpm
6 Workpiece spindle speed 0-36rpm (Infinitely Variable Speeds)
7 Spindle power 1.1KWX2p
8 Workpiece motor 0.12KW(1:40)
9 Grinding wheel drive belt O-type, M55
10 Machine tool installation space (LxWxH) 1.3 × 1.0x1. 5m3
11 Weight of the machine About 600kg

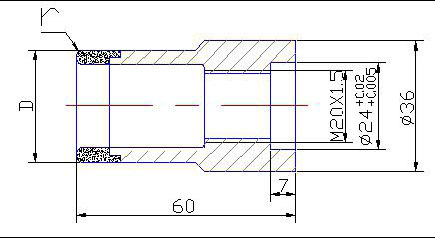

Grinding wheel interface

36rpm Optical Manufacturing Equipment Spherical Surface Milling Grinding

List of main accessories and maintenance parts

See Technical Specification of the Equipment

We mainly supply Optical Glass and Crystal Processing Equipment, Mobile Phone Cover Glass Making Machine, and Japan Second-Hand Optical Processing Equipment. Equipment includes double sided lapping grinding and polishing machine, inner circle cutting optical manufacturing equipment, double head glass engraving machine for making mobile phone cover, mobile screen printing machine, plane and spherical surface milling grinding machine, profiling edging machine, multi wire cutting equipment etc.

If you are interested in any type of optical manufacturing equipment, please feel free to contact us.
