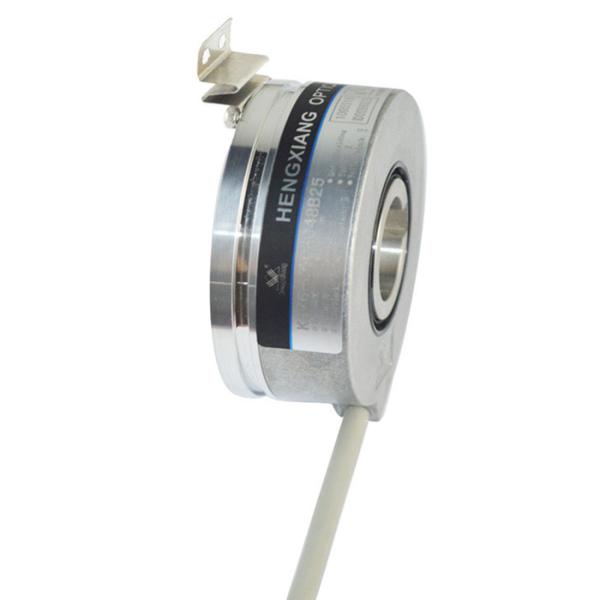

KC76 keyway encoder hole 25mm with 8mm keyway ABZ phase push-pull output 32768ppr

Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.

Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid

Payment terms

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready

Production video

Please email us directly or contact online service right now to get the latest video, otherwise you could visit our YOUTUBE page.

Product Description

Application

Gearbox

DC garage door motor

DC servo motor

Stock driver

PMDC geared motor

Brushless dc motor
Servo motor

Drawing machine

VFD

Inverter

Variable frequency driver

Embroidery machine

Elevator

Printing machinery

Projector

Injection molding machine

Product Basis information

Encoder type: Incremental encoder

External diameter: 76.5mm

Thickness: 28mm

Installation dimension: R34.5mm (spring plate 76T69)

Hollow shaft type: through hole with slot

Hollow shaft diameter: 18mm, 20mm, 22mm; 25mm

Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-

Supply voltage: DC5V; DC8-30V

Outlet type: Cable out from side

GND: not connect to encoder

Our advantage

Utility Model Patent Certificate

Own brand and unique brand

CE certification for all models

Prompt delivery date

100% full inspection before shipment

Customers from about 200 countries

IS09001:2015 Certification

Trademark Registration certificate

FAQ

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.

Q: Can you factory offer a sample?

A: Yes, sample can be provided.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production
