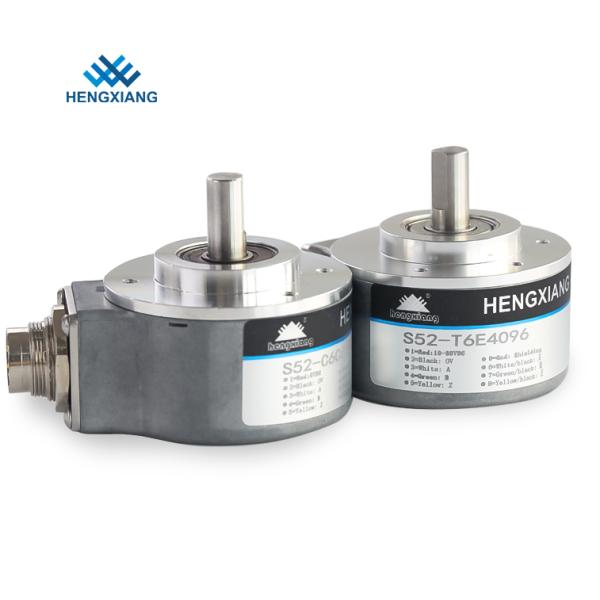

Solid Shaft 8mm S52 Heavy Duty Encoder External Diameter 51mm
Solid Shaft 8mm S52 Heavy Duty Encoder External Diameter 51mm
Solid Shaft 8mm S52 Heavy Duty Encoder External Diameter 51mm
Solid Shaft 8mm S52 Heavy Duty Encoder External Diameter 51mm
Solid Shaft 8mm S52 Heavy Duty Encoder External Diameter 51mm
Solid Shaft 8mm S52 Heavy Duty Encoder External Diameter 51mm
Specifications
Brand Name :
HENGXIANG
Model Number :
S52
Certification :
CE,ISO9001
Place of Origin :
Shanghai,China
MOQ :
1Pcs
Price :
Consult us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100K pieces per year
Delivery Time :
3-5 working days for sample order, 7-15 working days for mass order
Packaging Details :
each 1 piece was packed into single carton box
Product Name :
S52 heavy duty encoder external diameter 51mm solid shaft 8mm HTL output customizable
Encoder type :
Incremental encoder
External diameter :
51mm
Thickness :
29mm
Output mode :
NPN&PNP
Consumption current :
100mA MAX
Top response frequency :
300KHZ
Allowable ripple :
≤3%rms
Load Voltage :
≤DC30V
Mark to Space ratio :
45% to 55%
Description

S52 heavy duty encoder external diameter 51mm solid shaft 8mm HTL output customizable

Product Description

S52 encoder model number for reference

S52-T2N1024 DC12V

S52-Q2F2048 DC30V

S52-TE3V1200 DC8-30V

S52-T3F5760 DC24V

S52-Q4E8192 DC5V

S52- TE4C5000

S52-T6C3600

S52-Q6E2000

S52-TE3PH10000

S52-T12C1024/4 DC5V

S52-Q12E2048/6 DC8-30V

S52-TE12C4096/8 DC5V

Specification

Product Name

S52 heavy duty encoder external diameter 51mm solid shaft 8mm HTL output customizable

Brand

HENGXIANG
Encoder Type Incremental encoder

External diameter

51mm

Thickness

29mm

Output mode​

NPN&PNP

Voltage output

Push-pull output

Difference output(TTL,HTL,RS422)

Consumption current

100mA MAX

Top response frequency

300KHZ

Allowable ripple

≤3%rms

Load Voltage

≤DC30V

GND

not connect to encoder

Mark to Space ratio

45% to 55%

starting torque

less than 5 x 10-3 N.m

Intertia moment

less than 3x 10-6kg.m2

Shaft load

Radial 50N; Axial 30N

Top REV​

3000RPM ;IP65≤2000 RPM

Bearing life

1.5x109 revs at rated load(100000hrs at 2500RPM)

Environmental temperature

Operating:-20 ～+80°；storage:-25 ～+85°

Environmental humidity

Operating and storage: 35-85%RH(noncondensing)

Vibration(endure)

Amplitude 0.75mm,5-55Hz,2 hours for three axis individually

Solid Shaft 8mm S52 Heavy Duty Encoder External Diameter 51mm

Why choose us?

  • HENGXIANG brand--The trustworthy partner
  • CE approved--advantaged product quality;
  • Fast delivery--strong stock product ability;
  • Factory directly provide a competitive price;
  • One-stop service--for your efficient purchasing experience;
  • OEM design accepted--customized design, your own brand accepted.

Factory Encoder Production Capability

  • 5000 pieces per month
  • -------- Production Line Capacity
  • 50000 pieces per year
  • --------Actual Units Produced (Previous Year)

Shipment

  • Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
  • You could select the express according to your requirements if freight collector
  • If you do not have any courier account, we will check and find a cheapest and safety express for you.
  • Our factory has 30% discount with most courier company, so price could be as cheap as possible.

Our advantage

· Over 18 years encoder production experience

· More than 20 years experienced engineers

· Professional working team

· High quality standard

· Quick Response time

· Utility Model Patent Certificate

· Own brand and unique brand

· CE certification for all models

· Prompt delivery date

· 100% full inspection before shipment
