Blind Hole 15mm Heavy Duty Encoder 1000 Ppr Hollow Shaft ABZUVW Phase 4 Poles
Blind Hole 15mm Heavy Duty Encoder 1000 Ppr Hollow Shaft ABZUVW Phase 4 Poles
Blind Hole 15mm Heavy Duty Encoder 1000 Ppr Hollow Shaft ABZUVW Phase 4 Poles
Blind Hole 15mm Heavy Duty Encoder 1000 Ppr Hollow Shaft ABZUVW Phase 4 Poles
Specifications
Brand Name :
HENGXIANG
Model Number :
K52 High speed rotary encoder
Certification :
CE,ISO9001
Place of Origin :
Shanghai,China
MOQ :
1pcs encoder to start order
Price :
negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability :
100K pieces per year
Delivery Time :
3-5 working days for sample order, 7-15 working days for mass order
Packaging Details :
each 1 piece was packed into single carton box
Installation dimension :
R27.5mm(spring plate 50T55)
Product name :
Hollow shaft encoder
External diameter :
52mm
Hollow shaft diameter :
8mm,10mm,12mm;14mm;15mm
Output phase :
Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Resolution :
1000PPR-23040PPR
Cable length :
1000mm(cable with shielding)
Net weight  :
About 310g (with package)
Description

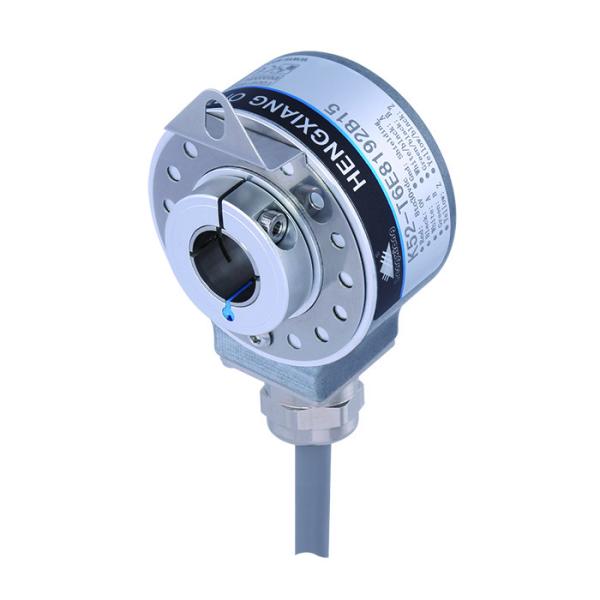

K52 blind hole 15mm hollow shaft heavy duty encoder ABZUVW phase 1000ppr 4 poles

Lead time

3-5 working days for sample after full paid

7-15 days for mass production after full paid

Some Part No. for K52 Series

K52-T12C8192B15

K52-T6E10000B14

K52-C3V5000B10

K52-C2F4096B8

K52-TE1N3600Q14

K52-TE121024/4B10

K52-T6E1440Q12

K52-C4C1250Q10

K52-TE3F1200Q8

K52-T2N1024Q14

K52-TE1F1000B15

K52 series encoder Characteristics

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 51mm
Thickness 39mm
Installation dimension R27.5mm(spring plate 50T55)
Hollow shaft type through hole or blind hole
Hollow shaft diameter 8mm,10mm,12mm;14mm;15mm
Resolution 1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;
4096;5000;5760;8192;10000；11520；16384；20000；23040
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;
2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Consumption current 100mA MAX
Top response frequency 300KHZ
Cable length 1000mm(cable with shielding)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
　 require, but it need payment individually)
Certification CE

Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.
