PC58 Ultra-thin Hollow Shaft Incremental Encoders Through Hole 10000ppr Resolution
PC58 Ultra-thin Hollow Shaft Incremental Encoders Through Hole 10000ppr Resolution
PC58 Ultra-thin Hollow Shaft Incremental Encoders Through Hole 10000ppr Resolution
PC58 Ultra-thin Hollow Shaft Incremental Encoders Through Hole 10000ppr Resolution
PC58 Ultra-thin Hollow Shaft Incremental Encoders Through Hole 10000ppr Resolution
PC58 Ultra-thin Hollow Shaft Incremental Encoders Through Hole 10000ppr Resolution
Specifications
Brand Name :
HENGXIANG
Model Number :
PC58
Certification :
CE,ISO9001
Place of Origin :
Shanghai,China
MOQ :
1pcs encoder to start order
Price :
negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability :
100K pieces per year
Delivery Time :
3-5 working days for sample order, 7-15 working days for mass order
Packaging Details :
each 1 piece was packed into single carton box
Brand :
HENGXIANG
Encoder type :
Incremental encoder
External diameter :
58mm
Thickness :
14mm
Hollow shaft type :
through hole
Hollow shaft diameter :
14mm;15mm;19mm;24mm
Resolution  :
2500/6;2500/8;2500/16;5000/6;5000/8;5000/16;10000/6;10000/8;10000/16
Output phase :
6=A+A-+B+B-+Z+Z-, 6=wire-saving type A+B+Z Lag+U+V+W, 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Outlet type :
Radial cable
Output mode :
Line Driver TTL(DC5V) Less wiring type;Line Driver TTL(DC5V); Line Driver HTL(DC8-30V)
Protection :
IP50
Net weight  :
About 100g (with package)
Description

PC58 hollow shaft diameter 58mm single bearing encoder shell resolution 1024-10000ppr

Major PC58 Series Description

1- Basic Characteristics

PC58 Ultra-thin Hollow Shaft Incremental Encoders Through Hole 10000ppr Resolution

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder

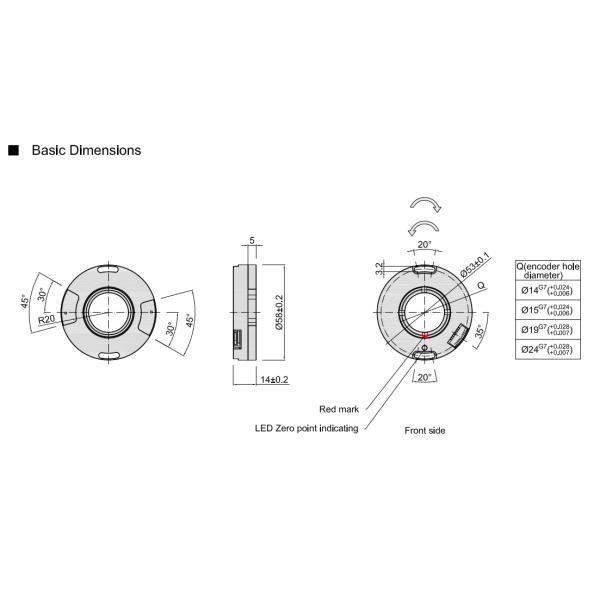

External diameter 58mm
Thickness 14mm
Hollow shaft type through hole
Hollow shaft diameter 14mm;15mm;19mm;24mm;
Resolution 2500/6;2500/8;2500/16;5000/6;5000/8;5000/16;10000/6;10000/8;10000/16
Output phase 6=A+A-+B+B-+Z+Z-, 6=wire-saving type A+B+Z Lag+U+V+W, 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Supply voltage DC5V ; DC8--30V
Outlet type Radial cable
Output mode Line Driver TTL(DC5V) Less wiring type
Line Driver TTL(DC5V); Line Driver HTL(DC8-30V)
Consumption current 100mA MAX
Top response frenquency 500KHz; 800KHz
GND not connect to encoder, must be effectively connected to GND
Starting torque less than 9.8 x 10-3 N.m
Inertia moment less than 6.5×10-6kg.m2
Environmental temperature Operating:-20 ～+95℃；storage:-25 ～+100℃
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Protection IP50
Material aluminium alloy
Certification CE
package Carton box
Net weight About 100g (with package)

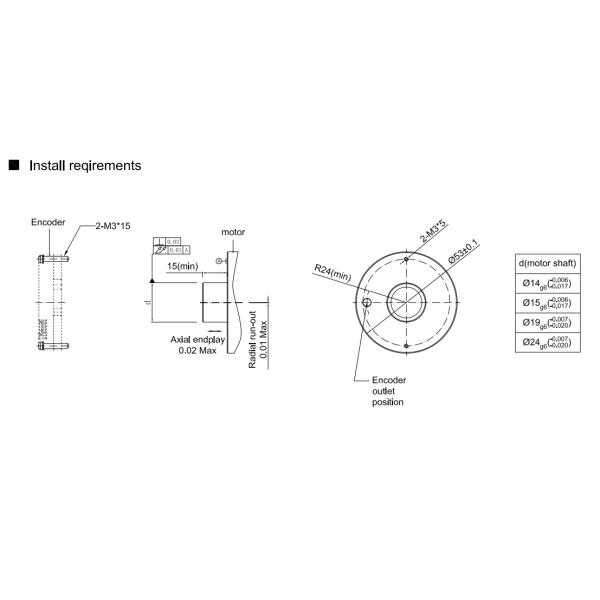

PC58 Ultra-thin Hollow Shaft Incremental Encoders Through Hole 10000ppr Resolution

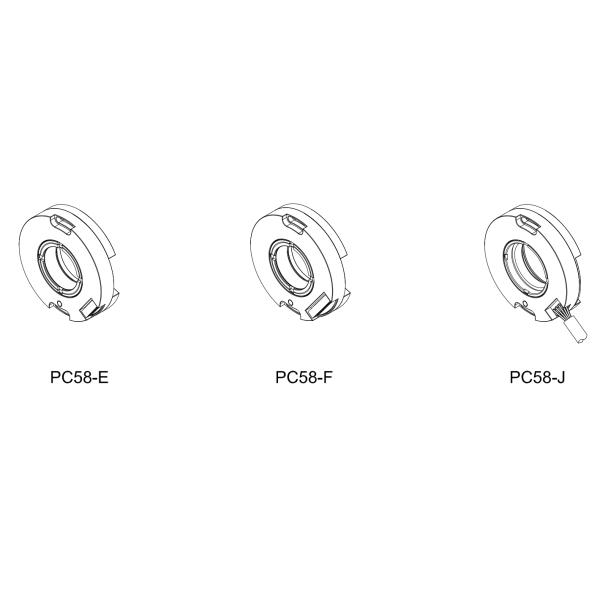

PC58 Ultra-thin Hollow Shaft Incremental Encoders Through Hole 10000ppr Resolution

2- FAQ

Q1: What are our strengths?

A1: ※Quality Assurance -- The products have passed the authoritative certifications of CE-ATC, ISO, QMS, etc. by the third-party testing 　　 institutions.

※Leading technology -- with new high precision sensor R&D technology and professional design team, constantly improving performance, 21 years focus on quality, 3 invention patents 17 application patents.

※Tailor-made - With mature technical capability and rich development experience, we can tailor encoders for different precision needs in various mechanical equipment.

※Efficient service - make full use of the existing environmental information resources unified planning, unified specifications, unified construction, time-saving and efficient.

Q2:What can we do for you?

A2:We can provide you with services in the field of elevator, motor, CNC, textile, robot, wind, medical, assembly line equipment and other automation technology industries.

Q3: How to select a right encoder model?

A3: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q4: Do you offer technical support?

A4: Yes, we have professional technician who can solve all your doubts.

3- Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)

4- Technology patents & Certificates
Awarded honorable enterprise certificates such as 3 invention patents and 17 utility model patents, CE-ATC certificate, ISO Quality Management System Certification, QMS Quality Management System certificate, and pioneer enterprise
We passed the national quality management system certification with all the items tested conforming to it, thus gaining the professional production qualification.

5- Our History
In 1988-1998, The elder generation produced optical products in a small workshop in Dongtou District, Wenzhou, laying a solid foundation for the subsequent development of encoders and infrared optics.
In 1999, The founder was employed by Shanghai No.1 Optical Factory as a senior engineer, engaged in optical research and development, and made many scientific breakthroughs.
In 2000, The founder took the opportunity of privatization of state-owned enterprises and planned to establish a company.
In 2001, Shanghai Hengxiang Optical Electronics Co., Ltd. was formally established, and the first S38 series products are independently developed in the same year.
In 2008-2019, Formally joined Alibaba's to expand overseas markets, and obtained ISO Quality Management System Certification.
In 2010- 2014, Three invention patents ,five new utility patents and a CE-ATC certificate was obtained.
Awarded the Honor of Shanghai High-tech Enterprise and Alibaba Integrity Pioneer Enterprise.
In 2015-2020, Moved factory to Songjiang Chuangyi International Industrial Park ,Obtained QA international certification and QMS quality management system certification.
In 2021, Obtained 14 new utility patents.
