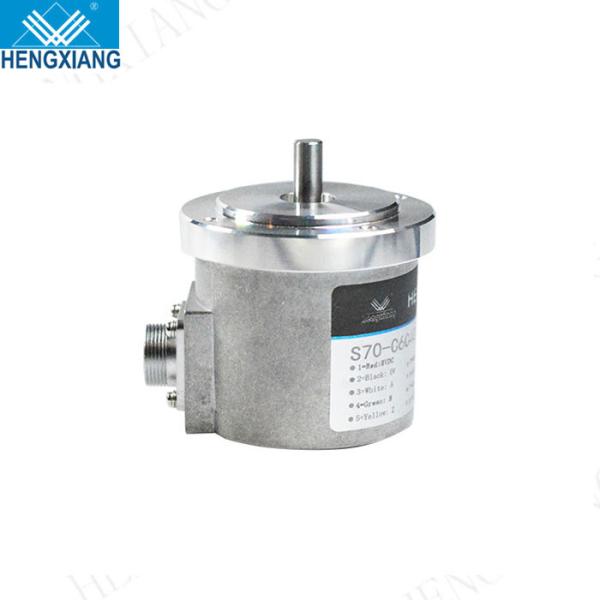

70mm Incremental Rotary Encoder S70 Series For Optical Switch
70mm Incremental Rotary Encoder S70 Series For Optical Switch
70mm Incremental Rotary Encoder S70 Series For Optical Switch
70mm Incremental Rotary Encoder S70 Series For Optical Switch
70mm Incremental Rotary Encoder S70 Series For Optical Switch
70mm Incremental Rotary Encoder S70 Series For Optical Switch
70mm Incremental Rotary Encoder S70 Series For Optical Switch
70mm Incremental Rotary Encoder S70 Series For Optical Switch
70mm Incremental Rotary Encoder S70 Series For Optical Switch
70mm Incremental Rotary Encoder S70 Series For Optical Switch
Specifications
Brand Name :
HENGXIANG
Model Number :
S70
Certification :
CE
Place of Origin :
Shanghai,China
MOQ :
1pcs encoder to start order
Price :
negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability :
100K pieces per year
Delivery Time :
3-5 working days for sample order, 7-15 working days for mass order
Packaging Details :
each 1 piece was packed into single carton box
Brand :
HENGXIANG
Encoder type :
Incremental encoder
External diameter :
70mm
Thickness :
60mm
Installation dimension :
diameter 60mm
Solid Shaft diameter :
8mm(D shape)
Resolution  :
50-23040 ppr
Output phase :
A,B,Z,A-,B-,Z-
Supply voltage :
DC5V & DC8~30V
Outlettype :
radial cable；radial socket
Output mode :
NPN Collector open circuit output；Voltage output ；Push-pull output ；Long line drive( 26LS31)；Compatible RS422；Long line drive( RT7272)
Protection grade :
IP50 ; IP65
Net weight  :
About 450g (with package)
Description

70mm rotary encoder for Incremental Type Rotary Encoder S70- Series encoder optical switch

※Overview
Quick Details
Model Number:
S70- Series
Type:
Mechanical Encoder
Place of Origin:
Shanghai, China
Brand Name:
HENGXIANG
Output:
square-wave signal
Usage:
Position Sensor
Theory:
Optical sensor
Brand:
HENGXIANG
External diameter:
70nn
Shaft diameter:
8mm (D type)
Thickness:
60mm
Resolution:
up to 23040P/R
Protection grade:
IP50 & IP65
Output mode:
NPN & voltage output & push-pull output & difference output
Weight:
about 350g
Supply Ability
Supply Ability
100000 Piece/Pieces per Day 10mm rotary encoder
Packaging & Delivery
Port
Shanghai
Products Description
WHY CHOOSE HENGXIANG ?.
* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard

Model Selection Guide

Manufacturing Dimensions
Product Paramenters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental encoder
External diameter
70mm
Thickness
60mm
Installation dimension
diameter 60mm
Shaft length
16mm
Solid Shaft diameter
8mm(D shape)
Resolution
50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
8192;10000；11520；16384；20000；23040
Output phase
A,B,Z,A-,B-,Z-
Supply voltage
DC5V & DC8~30V
Outlettype
radial cable
radial socket
Output mode
NPN Collector open circuit output
Voltage output
Push-pull output
Difference output
Long line drive( 26LS31)
Compatible RS422
Long line drive( RT7272)
Protection grade
IP50 ; IP65
Cable length
1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current
100mA MAX
Top response frenquency
300KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
Insulation strength
AC500V 60s
Insulation resistance
10MΩ
GND
not connect to encoder
Mark to Space ratio
45% to 55%
starting torque
less than 5x 10-3 N.m
Intertia moment
less than 3x 10-6kg.m2
Shaft load
Radial 30N; Axial 20N
Top REV
5000RPM ;IP65≤3000r rpm
Bearing life
1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature
Operating:-20 ～+80°；storage:-25 ～+85°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Dia cast aluminium
Cable length
1000mm(cable with shielding)
Certification
CE
package
Carton box
Net weight
About 450g (with package)

※Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.

※About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers
