Rotary hollow incremental 2500p/r ip65 optical machine through hole encoder
Rotary hollow incremental 2500p/r ip65 optical machine through hole encoder
Rotary hollow incremental 2500p/r ip65 optical machine through hole encoder
Rotary hollow incremental 2500p/r ip65 optical machine through hole encoder
Rotary hollow incremental 2500p/r ip65 optical machine through hole encoder
Rotary hollow incremental 2500p/r ip65 optical machine through hole encoder
Specifications
Brand Name :
HENGXIANG
Model Number :
K77
Certification :
CE,ISO9001
Place of Origin :
Shanghai, China
MOQ :
1pcs encoder to start order
Price :
negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability :
100K pieces per year
Delivery Time :
3-5 working days for sample order, 7-15 working days for mass order
Packaging Details :
each 1 piece was packed into single carton box
Pulse :
500-10000ppr (can be customized Max 65536ppr)
Protection :
IP65
External diameter :
77mm
Application :
Motor, CNC and other industrial automation field
Connection :
Radail socket; radial cable
Encoder type :
hollow shaft incremental encoder
Shaft diameter :
25mm; 30mm (shaft can be customized Max 30mm)
Phase :
±ABZ
Output type :
OC; Push-pull; HTL; TTL
Installation size :
85mm (Spring plate size can be customized)
Description

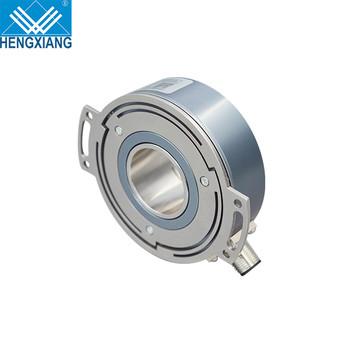

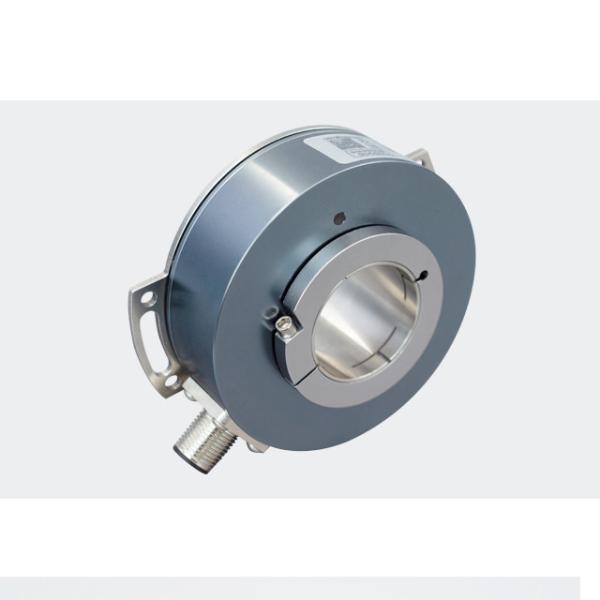

Rotary hollow incremental 2500p/r ip65 optical machine through hole encoder

1. Feature: Customized, high resolution high protection grade, hollow shaft incremental encoder. (resolution/installation/shaft can be customized. Please consult sale for more information).

2. Application: Motor, CNC, and other industrial automation.

3. Important parameters:

Basic Parameters
Items
Basic parameters
Encoder type
Incremental encoder
Brand
HENGXIANG
External diameter
77mm
Thickness
31mm
Installation dimension
R85mm(spring plate 77B85)
Hollow shaft type through
through hole
Hollow shaft diameter
25mm,30mm
Resolution
500; 512; 1000; 1024; 2000; 2048; 2500;
4000; 4096; 5000; 8000; 8192; 10000ppr
Output phase
Phase A+,B+,Z+,A-,B-,Z-
Supply voltage
DC5V ; DC8-30V
Outlet type
Radial socket (M12, 8pin male connector); Radial cable
Output mode
NPN(Open Collector Output)
Push-pull output
line drive (26LS31, DC5V) TTL
line drive (26C31, DC5V) TTL
line drive (DC8-30V) HTL
Consumption current
100mA MAX
Top response frenquency
100KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
GND
not connect to encoder
Mark to Space ratio
45% to 55%
starting torque
less than 80x 10-3 N.m
Intertia moment
less than 100x 10-6kg.m2
Shaft load
Radial 70N; Axial 50N
Top REV
3000RPM ; IP65
Bearing life
1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature
Operating:-20 ～+85°；storage:-25 ～+90°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Sock(endure)
1960m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Dia cast aluminium
Cable length
1000mm
Protection grade
IP65
Cable length
1M (cable length could be added appropriately by
require, but it need payment individually)
Certification
CE
package
Carton box
Net weight
About 500g (with package)

Products Description

Model Selection Guide

Manufacturing Dimensions
Product packaging
Product Usage
About Factory
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients . "HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project. Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .
Customers' Feedback
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal,power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
