Z48 2500 Ppr Incremental Servo Motor Encoder With No Bearing
Z48 2500 Ppr Incremental Servo Motor Encoder With No Bearing
Z48 2500 Ppr Incremental Servo Motor Encoder With No Bearing
Z48 2500 Ppr Incremental Servo Motor Encoder With No Bearing
Specifications
Brand Name :
HENGXIANG
Model Number :
Z48-J encoder module
Certification :
CE,ISO9001
Place of Origin :
Shanghai,China
MOQ :
1 piece to start order
Price :
negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, Credit Card, Master Card, Paypal, etc
Supply Ability :
100K pieces per year
Delivery Time :
3-5 working days for sample order, 7-15 working days for mass order
Packaging Details :
each 1 piece was packed into single carton box
External diameter :
48mm
Shaft diameter :
8mm
Resolution :
50ppr(Min) to 2500ppr(Max)
Optional supply voltage :
DC5V & DC8-30V
Output mode :
Open Collector, Voltage output, Push-pull, TTL,HTL
Output phase :
Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Weight :
about 60g (with package)
Thickness :
22.5mm
Description

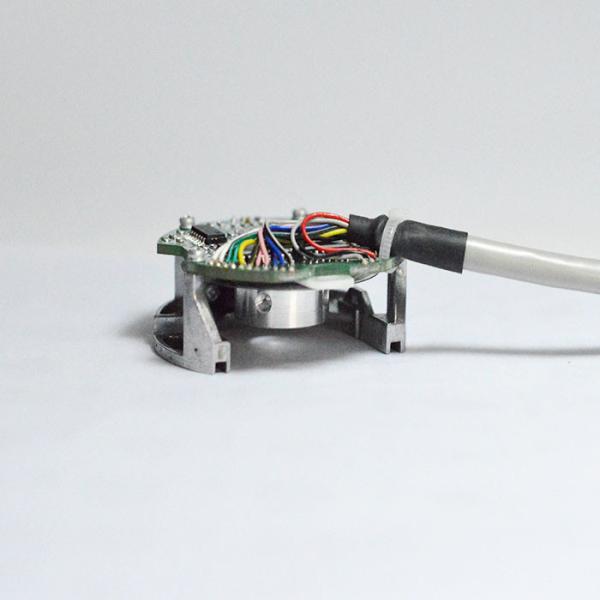

Z48 Rotary encoder module Incremental rotary encoder with 2500ppr No-bearing for servo motor

Our Service

  • Quick response once received customer’s quotation query
  • Professional engineer team, to solve your problems at any time
  • Strictly inspection before shipment
  • Various encoder models to be selected
  • Short lead time
  • High quality standard

Part Number to select of Z48 Series encoder

Z48-J1N2048

Z48-J2C2500

Z48-J3N50

Z48-J2N360

Z48-J3N500

Z48-J4E512

Z48-J6C600

Z48-J12E1024/6

Z48-J1N720

Z48-J2C1000

Product Description of Z48 Series

Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 48mm
Thickness 22.5mm
Dimension of limiting slot 30mm, depth 2.4mm
Installation dimension R22.35mm
Hollow shaft type through hole
Hollow shaft diameter 8mm
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;1000;
1024;1200;2000;2048;2500;
1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8;
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Output mode NPN/(Open Collector Output)
line drive (26LS31) TTL
line drive(DC8-30V) HTL

Z48 2500 Ppr Incremental Servo Motor Encoder With No Bearing

Questions you may like to know before ordering

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.

If you have any doubt on selecting the model, you are welcome to contact us for more assistant.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production,

The production date is according to order quantity.

Q: What is the highest resolution of your encoder products?

A: The highest resolution is 80000ppr, you can email us for more information.

Q: Can your encoder be customized?

A: Yes, our encoder can be customized according to your requirements,

Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters
