OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
Specifications
Brand Name :
Huawei
Model Number :
TN18FAN
Certification :
CE
Place of Origin :
CHINA
MOQ :
1UNIT
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100 Units/Month
Delivery Time :
2-3days
Packaging Details :
NEW IN BOX
Product Part Number :
02120826
Model :
TN18FAN
Products Status: :
Stock,New
Product Series :
OSN 9800
Sub Product Family :
Fan Box
Lead Time :
within 2 - 3 days after received payment
Warranty :
1 year and new original in the box
Description

Huawei OSN9800 Fan Box TN18FAN tray assembly Part Number 02120826

1 . Description:

OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826

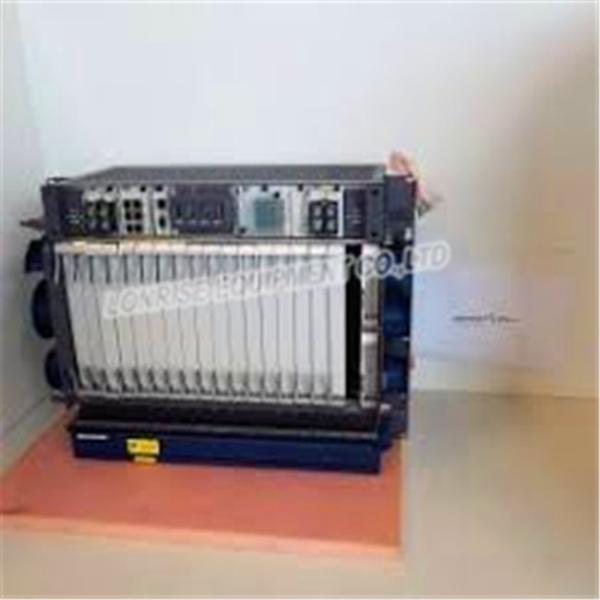

The Huawei OptiX OSN 9800 Specifications:

Specifications
OSN 9800 U16
OSN 9800 U32
OSN 9800 U64
Dimensions (HxWxD)
847x442x295mm
1900×498x295mm
2200x600x600mm(with cabinet)
Number of Service Slots
14
32
64
Switching
Capability
Optical
Up to 20-degree C-D-C-G ROADM
Electrical
5.6Tbit/s universal switching
6.4 /12.8Tbit/s universal switching
12.8/25.6Tbit/s universal switching
Number of
Ports
Max OTU4 Ports
28/56
64/128
128/256
Max 100GE Ports
28/56
64/128
128/256
Max OTU3 Ports
28
64
128
Max 40GE Ports
28
64
128
Max OTU2 Ports
280
640
1280
Max 10G Ports
280
640
1280
Max GE/2.5G Ports
420
960
1920
Max OTUC2 Ports
14
32
64
Max OTUC4 Ports
7/14
16/32
32/64
Channel Spacing
50/100GHz fixed grid for 40/80-ch
Flex-grid
Wavelength Range
DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1)
Rate per Channel (Max.)
100G, 200G, 400G, 1T, 2T
Service Types Supported
SDH, SONET, Ethernet, SAN, OTN, video
Topology
Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh
Redundancy
and Protection
Equipment
1+1 power input protection, 1+1 fan protection, M:N switch board protection, 1+1 controller protection
Network
OTN: Optical line protection, client 1+1 protection, ODUk SNCP, tributary SNCP, intra-board 1+1
protection,LPT, ASON/GMPLS
PKT: PW APS, Tunnel APS, LAG
Optical Power Management
ALS, AGC, ALC, APE, IPA
Synchronization
IEEE 1588v2, Sync-E
2Mbit/s or 2MHz (with the SSM function), ITU-T G.703-compliant external clock source
External clock source (1PPS+TOD)
ASON/GMPLS
Automatic network discovery
ODUk/λ level protection and restoration
5-Level SLA (Service Level Agreement) provisioning
End-to-end service configuration
Shared Risk Link Group (SRLG)
Traffic engineering
T-SDN
Automation, IP+Optical , BOD
Installation Rack
ETSI/19 inch rack
ETSI 300/600mm rack
ETSI 600mm rack
Heat Dissipation
Fan
Power Supply
-48VDC/-60VDC
Operation Environment
Temperature:
Long-term operation: 5°C to 40°C
Short-term operation: -5°C to 45°C
Relative humidity:
Long-term operation: 5% to 85%
Short-term operation: 5% to 90%

2.Company
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826Represented Brands
• LONRISE is certified dealer of Cisco in China, we are engaged in supplying whole series of Cisco
networking products, such as switches, routers, access point(AP), firewall, fiber modules .

OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
3. Advantages
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
4 .Packaging and shiping
OSN9800 Huawei SFP Module Fan Box TN18FAN Tray Assembly Part Number 02120826
If you are interested in any product,Welcome to consult !!
Wendy Ho
LONRISE EQUIPMENT CO.,LTD

Add: Rm.805, Rongjin commercial building, Rongmei Rd,Songjiang 201613, Shanghai, China.

Whatsapp :+8613661507914

Skype:Wendy-Lonrise
