Specifications
Brand Name :
CISCO WS-C2960X-24PS-L
Model Number :
WS-C2960X-24PS-L
Certification :
CE WS-C2960X-24PS-L
Place of Origin :
CHINA WS-C2960X-24PS-L
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
50 UNITS/MONTH
Delivery Time :
1-2 DAYS
Packaging Details :
NEW IN BOX
Warranty :
1 Year WS-C2960X-24PS-L
Brand :
CISCO WS-C2960X-24PS-L
RAM :
512 MB WS-C2960X-24PS-L
Wireless Type :
802.11 A/B
Number of USB 2.0 Ports :
2 WS-C2960X-24PS-L
Flash Memory Size :
138 WS-C2960X-24PS-L
Subtype :
Gigabit Ethernet
Power Over Ethernet (PoE) :
PoE+ WS-C2960X-24PS-L
Description

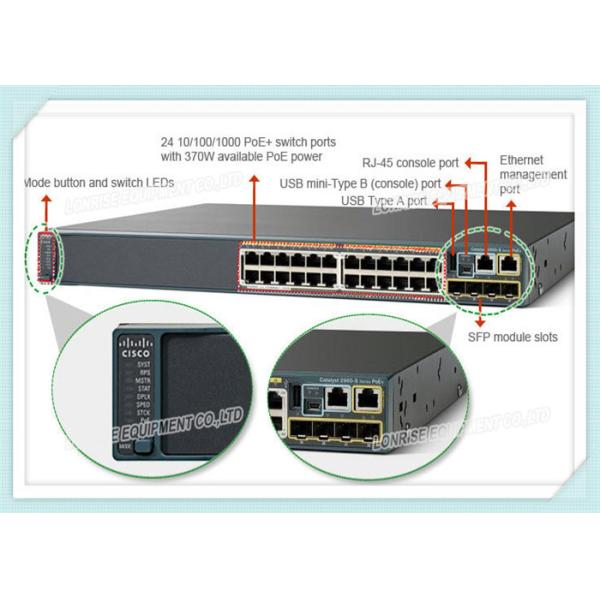

Cisco Catalyst WS-C2960X-24PS-L 24 Port Ethernet Switch with 370 Watt PoE

The Cisco WS-C2960X-24PS-L is a model from the Cisco Catalyst 2960-X series of switches. Here are the key features and specifications:

Key Features

  • Ports:

    • 24 Gigabit Ethernet ports, providing high-speed connections for various devices.

  • Power over Ethernet (PoE):

    • Supports PoE+, allowing the switch to supply power to connected devices like IP phones and wireless access points.

  • Uplink Ports:

    • Typically includes 4 SFP (Small Form-factor Pluggable) uplink ports for connecting to higher-speed networks.

  • Layer 2 Switching:

    • Primarily designed for Layer 2 switching, with some basic Layer 3 features for routing.

  • Stackable:

    • Supports Cisco's FlexStack technology, enabling multiple switches to be stacked for simplified management and increased bandwidth.

  • Management:

    • Runs on Cisco IOS software, providing a range of features for network management, security, and configuration.

  • Quality of Service (QoS):

    • Implements QoS features to prioritize traffic, ensuring optimal performance for voice and video applications.

Use Cases

  • Enterprise Networks: Ideal for small to medium-sized businesses needing reliable and efficient network connectivity.
  • Branch Offices: Suitable for connecting end-user devices in branch office environments.

WS-C2960X-24PS-L Overview

Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations.

WS-C2960X-24PS-L Cisco Ethernet Switch Gigabit 24 Port 512mb With 370 Watt Poe

WS-C2960X-24PS-L Specification

  • Capacity

    • Type :Virtual interfaces (VLANs)
    • Value :1023

  • Dimensions & Weight

    • Depth :14.5 in
    • Height :1.8 in
    • Weight :12.79 lbs
    • Width :17.5 in

  • Environmental Parameters

    • Humidity Range Operating :10 - 95% (non-condensing)
    • Humidity Range Storage :10 - 95% (non-condensing)
    • Max Operating Temperature :113 °F
    • Max Storage Temperature :158 °F
    • Min Operating Temperature :23 °F
    • Min Storage Temperature :-13 °F

  • Flash Memory

    • Installed Size :128 MB

  • Header

    • Brand :Cisco
    • Compatibility :PC
    • Manufacturer :Cisco Systems
    • Model :2960X-24PS-L
    • Packaged Quantity :1
    • Product Line :Cisco Catalyst

  • Interface Provided

    • Comments :Management
    • Connector Type :Mini-USB Type B
    • Connector Type :Type B
    • Type :Mini-USB
    • Comments :PoE+
    • Connector Type :RJ-45
    • Connector Type :RJ-45
    • Interface :Ethernet 10Base-T/100Base-TX/1000Base-T
    • PoE Power :30 W
    • Qty :24
    • Type :1000Base-T
    • Comments :Uplink
    • Connector Type :SFP (mini-GBIC)
    • Connector Type :SFP
    • Qty :4
    • Connector Type :Type A
    • Qty :2
    • Type :USB
    • Interface :Console
    • Qty :1
    • Type :Console
    • Interface :Ethernet 10Base-T/100Base-TX
    • Type :1000Base-TX

  • Miscellaneous

    • Authentication Method :Kerberos, RADIUS, Secure Shell (SSH), TACACS+
    • Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2011/65/EU, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, UL 60950-1 Second Edition, VCCI Class A
    • Height (Rack Units) :1
    • MTBF :324,280 hours

  • Networking

    • Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • Features :Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Cisco EnergyWise technology, Cisco FlexStack Plus, Class of Service (CoS), DHCP support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Hot Standby Router Protocol (HSRP) support, IGMP snooping, Intrusion Detection System (IDS), IPv4 support, IPv6 support, Jumbo Frames support, Layer 2 switching, Link Aggregation Control Protocol (LACP), MAC Address Notification, MLD snooping, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, NetFlow, PoE+, Port Aggregation Protocol (PAgP) support, Power over Ethernet (PoE), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), SSH support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), VLAN support
    • Form Factor :Desktop, Rack-mountable
    • Jumbo Frame Support :9216 bytes
    • Manageable :Yes
    • Max Units In A Stack :8
    • PoE Budget :370 W
    • Ports Qty :24
    • Power Over Ethernet (PoE) :PoE+
    • Remote Management Protocol :CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
    • Stackable :Stackable
    • Status Indicators :Link/activity, PoE, Port duplex mode, Port status, Port transmission speed, RPS (Redundant Power Supply), System
    • Subcategory :Network hubs and switches
    • Subtype :Gigabit Ethernet
    • Type :Switch

  • Performance

    • Type :Forwarding performance (64-byte packet size)
    • Value :71.4 Mpps
    • Type :Switching capacity
    • Value :216 Gbps

  • Ports

    • Qty :24
    • Type :10/100/1000 (PoE+)

  • Ports (2nd)

    • Qty :4
    • Type :Gigabit SFP

  • Power Device

    • Features :Redundant Power System (RPS) connector
    • Frequency Required :50/60 Hz
    • Nominal Voltage :AC 120/230 V
    • Power Redundancy :Optional
    • Type :Internal power supply

  • Processor

    • Clock Speed :600 MHz

  • RAM

    • Installed Size :512 MB

  • Service

    • Support Details Full Contract Period :90 days
    • Support Details Service Included :Consulting
    • Support Details Type :Technical support
    • Support Details Full Contract Period :Lifetime
    • Support Details Service Included :Advance parts replacement
    • Support Details Type :Limited warranty

  • Service & Support

    • Type :Limited lifetime warranty

  • Service & Support Details

    • Response Time :Next business day

  • Slot Provided

    • Free Qty :1
    • Total Qty :1
    • Type :Stacking Module slot

  • Software

    • Type :Cisco IOS LAN Base
