Cisco SPA Card WS-X4724-SFP-E 4500E Series 24 Port GE SFP Line Card
Cisco SPA Card WS-X4724-SFP-E 4500E Series 24 Port GE SFP Line Card
Cisco SPA Card WS-X4724-SFP-E 4500E Series 24 Port GE SFP Line Card
Cisco SPA Card WS-X4724-SFP-E 4500E Series 24 Port GE SFP Line Card
Cisco SPA Card WS-X4724-SFP-E 4500E Series 24 Port GE SFP Line Card
Cisco SPA Card WS-X4724-SFP-E 4500E Series 24 Port GE SFP Line Card
Specifications
Brand Name :
Cisco
Model Number :
WS-X4724-SFP-E
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal, Alipay, Wechat
Supply Ability :
30 Pieces per month
Delivery Time :
1~2 days
Packaging Details :
NEW IN BOX
Brand :
Cisco
Model :
WS-X4624-SFP-E
Per-Slot Bandwidth :
24 Gbps
Chassis Support :
all 3, 6, 7 (R-E & R+E) and 10 (R-E & R+E) slot chassis
Line-Card Type :
Cisco Catalyst 4500 47xx E-Series Line Cards
Description

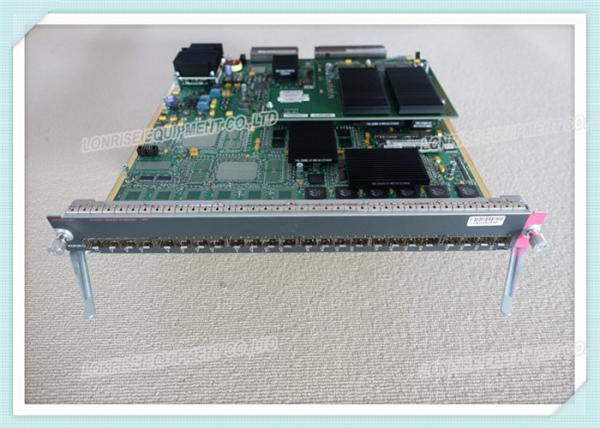

Cisco Catalyst WS-X4724-SFP-E 4500E Series 24 Port GE (SFP) Line Card

Overview

Cisco Catalyst WS-X4724-SFP-E line-card is designed for requiring line-rate capability for enterprise, mid-market and commercial core and distribution deployments. Integrated 24 SFP nonblocking ports with IEEE802.1AE Fiber Encryption and Cisco TrustSec capability in hardware, WS-X4724-SFP-E line-card delivers high-performance and secures user experience. This WS-X4724-SFP-E is similar with the WS-X4724-SFP-E=. The WS-X4724-SFP-E= is a spare one.

Cisco SPA Card WS-X4724-SFP-E 4500E Series 24 Port GE SFP Line Card

Specifications:

WS-X4724-SFP-E Specifications
Port Information
Type E-Series Gigabit Ethernet SFP Line Cards
Number of Ports 24
Port Speed 1GbE/100Mbps
Port Type Pluggables
Wire Rate 1:1
Feature
Standards

● Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az

● 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM
EtherChannel Technology

● Gigabit EtherChannel: All 1000 Mbps ports

● 10 Gigabit EtherChannel: All 10Gbps ports

● IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports

● Port Aggregation Protocol (PagP): Yes

● Number of ports per tuple: 8

● EtherChannel and IEEE 802.3ad technology across line cards: Yes
Physical Dimensions

● Occupies one slot in the Cisco Catalyst 4500 Series platform

● Dimensions (H x W x D): 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm)
Environmental Conditions

● Operating temperature: 32° to 104°F (0° to 40°C)

● Storage temperature: -40° to 167°F (-40° to 75°C)

● Relative humidity: 10 to 90%, noncondensing

● Operating altitude: -60 to 3000m
Safety Conditions Fiber optic lasers: Class 1 laser products
Safety Certifications

● UL 1950

● EN 60950

● CSA-C22.2 no 950

● IEC 950

● IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11
Electromagnetic Emissions Certifications

● FCC 15J Class A

● VCCI Class A

● CE Marking

● EN 55022 Class A

● EN 55024 Class A

● CISPR 22 Class A

● AS/NZ 3548

● NEBS Level 3 (GR-1089-CORE, GR-63-CORE)

● ETSI ETS-300386-2

● EN 50121-4
ROHS Compliance ROHS5
Power and MTBF Information
Max Rated Power (W) 40
Rated MTBF (Hours) 1,139,510

Other related products:

WS-X4724-SFP-E
WS-X4748-SFP-E
WS-X45-SUP7L-E
WS-X4648-RJ45-E
WS-X4648-RJ45V+E
WS-X4748-RJ45-E
WS-X4748-RJ45V+E
WS-X4448-GB-SFP
WS-X45-SUP7-E

If you have any questions about cisco poducts or want to know more the other cisco products, please do not hesitate to contact with Dannis Hu.


Skype: lonrisesales02
Email: dannis(at)lonriseeqt.com
Tel: 86 13601984814
