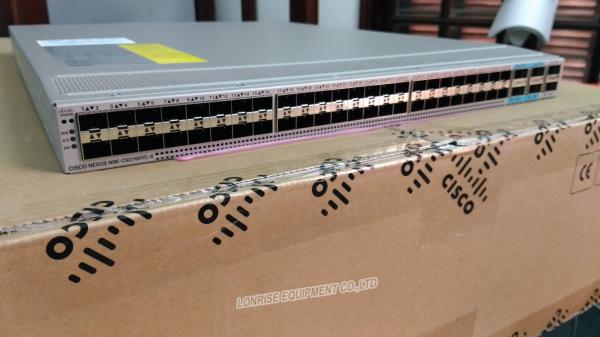

New Original Cisco Gigabit Switch Nexus 9300 Series N9K-C92160YC-X-C Leaf Switch
New Original Cisco Gigabit Switch Nexus 9300 Series N9K-C92160YC-X-C Leaf Switch
New Original Cisco Gigabit Switch Nexus 9300 Series N9K-C92160YC-X-C Leaf Switch
New Original Cisco Gigabit Switch Nexus 9300 Series N9K-C92160YC-X-C Leaf Switch
Specifications
Brand Name :
Cisco
Model Number :
N9K-C92160YC-X-C
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
50 units / months
Delivery Time :
2-3 days
Packaging Details :
Original package
CPU :
2 cores
System Memory :
16 G
SSD drive :
24 G
USB Ports :
1
Maximum power (AC) :
475W
Fans :
4
Description

N9K-C92160YC-X is one of the Cisco Nexus 9200 switches. 92160YC-X Switch is optimized for Cisco NX-OS deployments. It provides 48 1/10/25-Gb host ports and up to six hybrid uplink ports that can be configured as 10, 25, 40, or 100-Gb ports. With 3.2 Tbps of switching capacity, the 92160YC-X delivers line-rate Layer 2 and 3 features for demanding enterprise, service provider hosting, and cloud computing environments.

N9K-C92160YC-X Specification
Ports 48 x 10- and 25-Gbps SFP+ and 6 QSFP+ ports (4 are 100-Gbps capable)
Supported speeds

1, 10, and 25 Gbps on SFP+ ports

10, 25, 40, and 100 Gbps on QSFP+ ports
Port configuration 48 x 10/25-Gbps ports for downlinks; 4 of the 6 uplink ports are 100-Gbps capable. Ports 50 and 52 can be individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps
CPU 2 cores
System memory 16G
SSD drive 24G
Shared system buffer 20MB
Management ports 2 ports: 1 RJ-45 and 1SFP
USB ports 1
RS-232 serial ports 1
Power supplies (up to 2) 650W AC, 930W DC, or 1200W AC/HVDC
Typical power (AC)

10-Gbps mode: 150W

25-Gbps mode: 170W
Maximum power (AC) 475W
Input voltage (AC) 100 to 240V
Input voltage (HVAC) 200 to 277V
Input voltage (DC) –40 to –72V DC (minimum and maximum) –48 to –60V DC (nominal)
Input voltage (HVDC) 240 to 380V
Frequency (AC) 50 to 60 Hz
Fans 4
Airflow Port-side intake and exhaust
MTBF (hours) 379,400
Physical (H x W x D) 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
Acoustics 51.9 dBA at 40% fan speed, 56.2 dBA at 70% fan speed, and 66.0 dB at 100% fan speed
RoHS compliance Yes
Number of longest prefix match (LPM) routes

Default: 6,000

LPM heavy mode: 650,000
Number of IP host entries

Default: 96,000

LPM heavy mode: 650,000
Number of MAC address entries 92,000
Number of multicast routes

Shipping: 8,000

Maximum: 32,000
Number of Interior Gateway Management Protocol (IGMP) snooping groups

Shipping: 8,000

Maximum: 32,000
Number of access control list (ACL) entries

Per slice of the forwarding engine:

4,000 ingress

2,000 egress Maximum: 8,000 ingress

4,000 egress Shipping: 7,164 ingress

3,580 egress
Maximum number of VLANs 3,967
Number of Virtual Routing and Forwarding (VRF) instances

Shipping: 1,000

Maximum: 16,000
Maximum number of links in a Port Channel 32
Maximum number of ECMP paths 64
Maximum number of ECMP groups 256
Maximum number of ECMP members 64,000
Maximum number of Port Channels 512
Number of active SPAN sessions 4
Number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances 3,967
Number of Hot-Standby Router Protocol (HSRP) groups 490
Number of Multiple Spanning Tree (MST) instances 64
Maximum Number of VxLAN Tunnel Endpoints (VTEPs) 256
Operating temperature 32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature -40 to 158°F (-40 to 70°C)
Humidity 5 to 95% (noncondensing)
Altitude 0 to 13,123 ft (0 to 4000m)
Weight (without power supplies or fans) 14.12 lb (6.4 kg)
