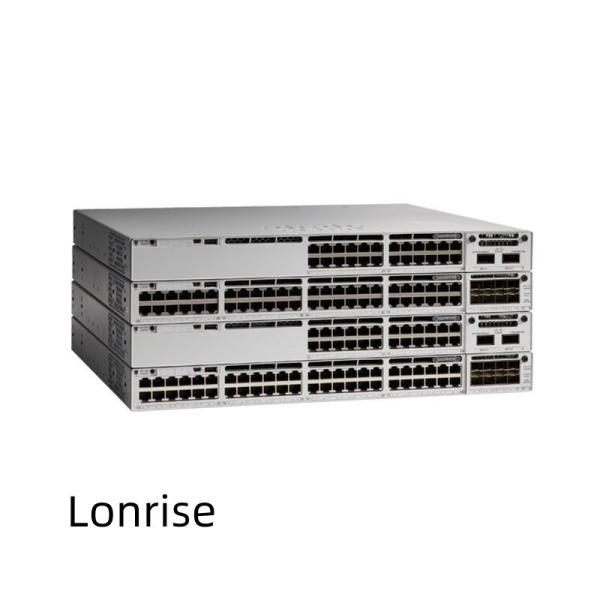

C9300L-24T-4X-E - Cisco Catalyst 9300L Switches 24-Port Fixed Uplinks Data Only 4X10G Uplinks Network Essentials
C9300L-24T-4X-E - Cisco Catalyst 9300L Switches 24-Port Fixed Uplinks Data Only 4X10G Uplinks Network Essentials
C9300L-24T-4X-E - Cisco Catalyst 9300L Switches 24-Port Fixed Uplinks Data Only 4X10G Uplinks Network Essentials
C9300L-24T-4X-E - Cisco Catalyst 9300L Switches 24-Port Fixed Uplinks Data Only 4X10G Uplinks Network Essentials
C9300L-24T-4X-E - Cisco Catalyst 9300L Switches 24-Port Fixed Uplinks Data Only 4X10G Uplinks Network Essentials
C9300L-24T-4X-E - Cisco Catalyst 9300L Switches 24-Port Fixed Uplinks Data Only 4X10G Uplinks Network Essentials
C9300L-24T-4X-E - Cisco Catalyst 9300L Switches 24-Port Fixed Uplinks Data Only 4X10G Uplinks Network Essentials
C9300L-24T-4X-E - Cisco Catalyst 9300L Switches 24-Port Fixed Uplinks Data Only 4X10G Uplinks Network Essentials
Specifications
Brand Name :
Cisco
Model Number :
C9300L-24T-4X-E
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
50 units / months
Delivery Time :
2-3 days
Packaging Details :
In original carton package
DRAM :
8 G
Flash :
16 G
Network modules options :
Fixed Modules
Switching capacity :
56 Gbps - 176 Gbps
Forwarding rate :
41.66 Mpps - 130.95 Mpps
Stacking bandwidth :
320 Gbps
Description

C9300L-24T-4X-E - Cisco Catalyst 9300L Switches Catalyst 9300 24-port fixed uplinks data only, 4X10G uplinks, Network Essentials

Cisco Catalyst 9300 Series is the next generation of the industry’s most widely deployed stackable switching platform. Built for security, IoT, and the cloud, these network switches form the foundation for Cisco’s Software-Defined Access, our leading enterprise architecture. Cisco Catalyst 9300L switches are the Catalyst 9300 switches with fixed modules.

C9300L-24T-4X-E Specification

Cisco Catalyst 9300L Switches Specification
Designed to replace Catalyst 3850
Supported IOS Network Advantage, Network Essentials
Network modules options Fixed Modules
Stack Technology StackWise-320
Stacking bandwidth 320 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries -
IPv6 routing entries 16,000
Multicast routing scale 8,000
QoS scale entries 5,120
ACL scale entries 5,120
Packet buffer per SKU 16 MB buffer for 24 and 48 port Gigabit Ethernet models
Flexible NetFlow (FNF) entries 64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM 8 GB
Flash 16 GB
VLAN IDs 4094
Total Switched Virtual Interfaces (SVIs) 1000
Jumbo frames 9198 bytes
Switching capacity 56 Gbps - 176 Gbps
Forwarding rate 41.66 Mpps - 130.95 Mpps
