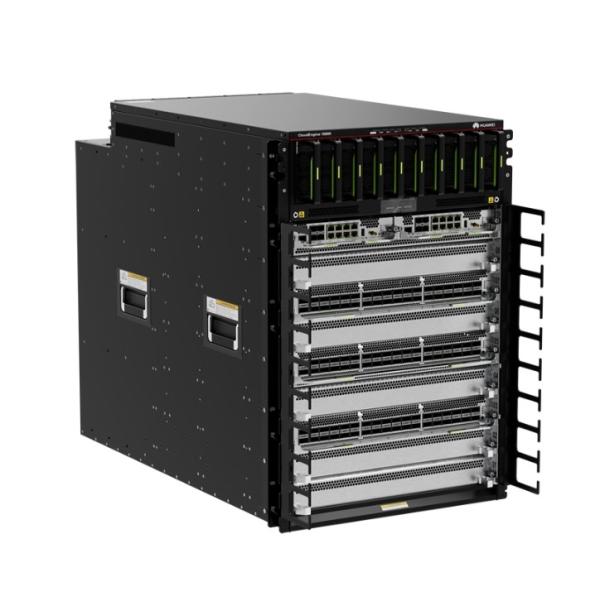

CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
Specifications
Brand Name :
Juniper
Model Number :
CE16808-DC
Certification :
CE
Place of Origin :
USA
Model :
CE16808-DC
Cabinet installation standards :
A812
Chassis height [U :
9
Power supply mode :
DC
Dimensions without packaging :
27.67 in. x 19.02 in. x 38.78 in.
Weight without packaging :
299.44 lb
Condition :
Brand New Sealed
Warranty :
1 year
Payment :
T/T, Western Union, Paypal
Shipment :
DHL, Fedex, UPS
Description

CE16808-DC Overview

Huwei CloudEngine 16800: Industry's First Data Center Switch, Built for the AI Era
1. The CloudEngine 16800 supports up to 36 x 100GE, 36 x 40GE, or 144 x 10GE line cards, which provide line-rate forwarding.The CloudEngine 16808 provides up to 288 x 100GE, 288 x 40GE, or 1152 x 10GE line-rate ports.Support 400GE ports in the future
2. Intelligent engine: embedded AI chip, implementing intelligent optimization of network-wide traffic and pre-analysis of network-wide abnormal traffic
3. Numerous features: M-LAG, VXLAN, EVPN, NSH, Telemetry, and iLossless AI algorithm

CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In StockCE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock

Technical specifications of the CE16808-DC

Item Specification
Dimensions with packaging (H x W x D) [mm (in.)] 990 mm x 770 mm x 1150 mm (39.89 in. x 30.31 in. x 45.28 in.)
Dimensions without packaging (H x W x D) [mm (in.)] 703 mm x 483 mm x 985 mm (27.67 in. x 19.02 in. x 38.78 in.) (including mounting brackets)
Weight without packaging [kg (lb)] 135.8 kg (299.44 lb) (including two MPUs and filler panels)
Weight without packaging (full configuration) [kg (lb)] 255.1 kg (562.50 lb)
Weight with packaging [kg (lb)] 183 kg (403.52 lb)
Cabinet installation standards A812
Chassis height [U] 15.8 U
Redundant MPUs 1:1
Redundant Switch fabrics N+M
Power supply mode DC
Number of power modules 10
Redundant power supply
  • Dual-input power supply system: N+1 backup is recommended.
  • Single-input power supply system: N+1 backup

Dual-input power supply is recommended to ensure reliability.
Rated input voltage [V] -48 V/-60 V
Input voltage range [V] -40 V to -72 V
Maximum input current [A] 58.5 A for the voltage of -40 V
Maximum output power [W]
  • In 9+1 backup mode: 2200 W x 9 = 19800 W
  • In 10+0 backup mode: 2200 W x 10 = 22000 W
Certification
  • Compliance with safety standards
  • Compliance with EMC standards
  • Compliance with environment and environmental protection standards
Redundant fans Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Heat dissipation using fans
Airflow direction Front-to-back airflow
Availability 0.9999971582
MTBF [year] 34.55 year
MTTR [hour] 1 hour
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.) (When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).)
Long-term operating relative humidity [RH] 5% RH to 85% RH, noncondensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F)
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)

CE16808-DC Huawei Cloud Engine 16800 Series CE16804-DC CE16808-DC 02352rcs CE16808 Ethernet Switch In Stock
