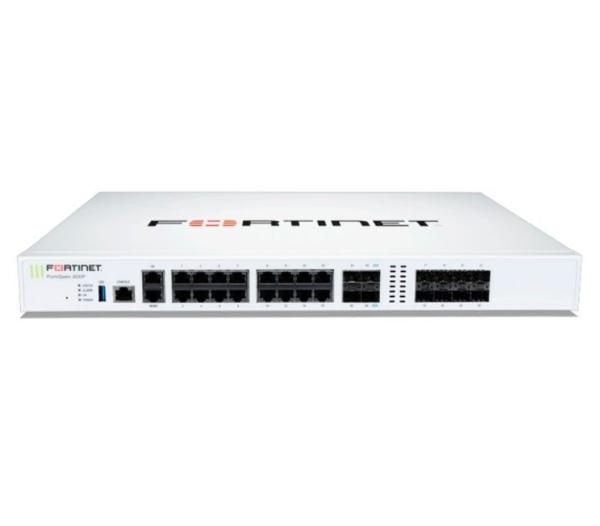

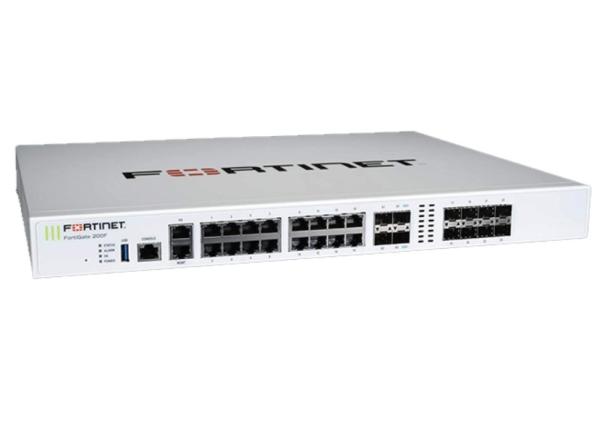

FG-200F Fortinet FortiGate NGFW Middle-range Series Fortinet FortiGate 200F - FG-200F - Appliance Only
FG-200F Fortinet FortiGate NGFW Middle-range Series Fortinet FortiGate 200F - FG-200F - Appliance Only
FG-200F Fortinet FortiGate NGFW Middle-range Series Fortinet FortiGate 200F - FG-200F - Appliance Only
FG-200F Fortinet FortiGate NGFW Middle-range Series Fortinet FortiGate 200F - FG-200F - Appliance Only
FG-200F Fortinet FortiGate NGFW Middle-range Series Fortinet FortiGate 200F - FG-200F - Appliance Only
FG-200F Fortinet FortiGate NGFW Middle-range Series Fortinet FortiGate 200F - FG-200F - Appliance Only
FG-200F Fortinet FortiGate NGFW Middle-range Series Fortinet FortiGate 200F - FG-200F - Appliance Only
FG-200F Fortinet FortiGate NGFW Middle-range Series Fortinet FortiGate 200F - FG-200F - Appliance Only
Specifications
Brand Name :
Fortinet
Model Number :
FG-200F
Certification :
CE
Place of Origin :
USA
Model :
FG-200F
Hardware Accelerated GE RJ45 Ports :
16
IPS Throughput 2 :
5 Gbps
NGFW Throughput 2, 4 :
3.5 Gbps
Threat Protection Throughput 2, 5 :
3 Gbps
SSL-VPN Throughput :
2 Gbps
Dimensions :
1.73 x 17.01 x 13.47 in.
Firewall Throughput :
16.5 Mpps
Weight :
7.25 lbs
Condition :
Brand new
Payment :
T/T, Western Union, Paypal
Shipment :
DHL, Fedex, UPS
Description

FG-200F Overview

The FortiGate 200F series provides an application-centric, scalable and secure SD-WAN solution with next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

FG-200F Fortinet FortiGate NGFW Middle-range Series Fortinet FortiGate 200F - FG-200F - Appliance OnlyFG-200F Fortinet FortiGate NGFW Middle-range Series Fortinet FortiGate 200F - FG-200F - Appliance Only

FG-200F Specification

FG-200F Specification
Interfaces and Modules
GE RJ45 Ports 16
GE RJ45 Management / HA 1 / 1
GE SFP Slots 8
10 GE SFP+ FortiLink Slots (default) 2
10 GE SFP+ Slots 2
USB Port 1
Console Port 1
Onboard Storage 0
Included Transceivers 0
System Performance — Enterprise Traffic Mix
IPS Throughput 2 5 Gbps
NGFW Throughput 2, 4 3.5 Gbps
Threat Protection Throughput 2, 5 3 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 27 / 27 / 11 Gbps
Firewall Latency (64 byte, UDP) 4.78 μs
Firewall Throughput (Packet per Second) 16.5 Mpps
Concurrent Sessions (TCP) 3 Million
New Sessions/Second (TCP) 280,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte) 1 13 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,500
Client-to-Gateway IPsec VPN Tunnels 16,000
SSL-VPN Throughput 2 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 500
SSL Inspection Throughput (IPS, avg. HTTPS) 3 4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 3,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 300,000
Application Control Throughput (HTTP 64K) 2 13 Gbps
CAPWAP Throughput (HTTP 64K) 20 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 64
Maximum Number of FortiAPs (Total / Tunnel) 256 / 128
Maximum Number of FortiTokens 5,000
High Availability Configurations Active, Active-Active, Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 1.73 x 17.01 x 13.47
Height x Width x Length (mm) 44 x 432 x 342
Weight 9.92 lbs (4.5 kg)
Form Factor Ear Mount, 1 RU
AC Power Supply 100–240V AC, 50/60 Hz
Power Consumption (Average / Maximum) 101.92 W / 118.90 W
Current (Maximum) 100V / 2A, 240V / 1.2A
Heat Dissipation 405.70 BTU/h
Redundant Power Supplies Yes
Operating Environment and Certifications
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 20–90% non-condensing
Noise Level 49.9 dBA
Forced Airflow Side to Back
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6

Note: All performance values are “up to” and vary depending on system configuration.

1. IPsec VPN performance test uses AES256-SHA256.

2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.

3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.

4. NGFW performance is measured with Firewall, IPS and Application Control enabled.

5. Threat Protection performance is measured with Firewall, IPS, Application Control, URL filtering, and Malware Protection with sandboxing enabled.
