Introduction

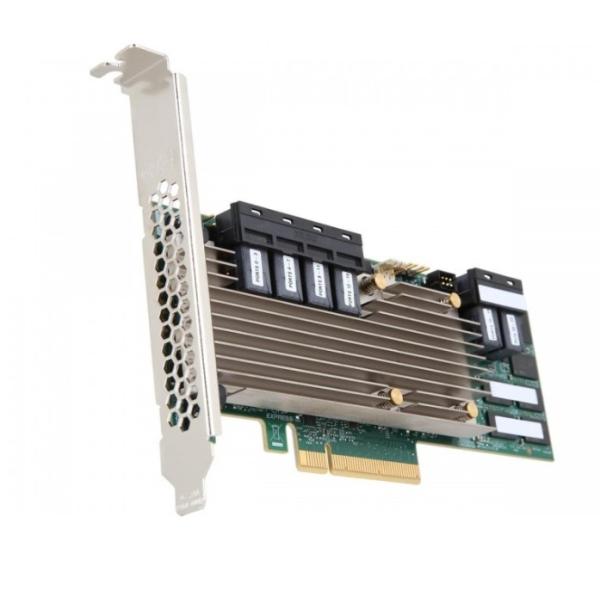

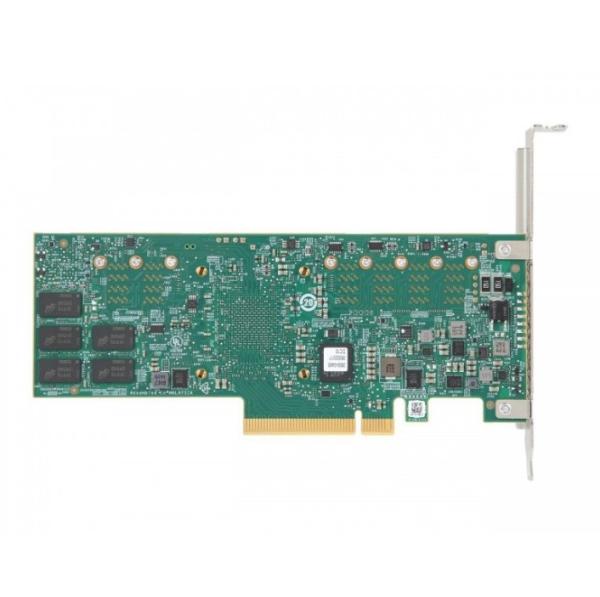

The MegaRAID® SAS 9361-24i, with twenty-four internal ports in a lowprofile* form factor, delivers two 1.2 GHz PowerPC processor cores and a 72-bit DDR3 interface that drives 4 GB cache memory. Powered by the SAS3324 dual-core ROC, with 24 native SAS/SATA ports, the 9361-2i controller can take full advantage of the latest PCI Express 3.0 interface to provide higher performance and increased throughput. The 12 Gb/s MegaRAID SAS 9361-2i is designed for configuring high-density storage servers with up to 24 drives via direct connection inside the box or up to 240 drives by leveraging SAS expander technology.

• Product: MegaRAID SAS 9361-24i
• MPN: 05-50022-00
• Solution Provided: Twenty-four-port internal SAS/SATA RAID solution for high-density and mainstream servers and storage systems requiring high drive count support inside the box.
• Physical Dimensions: MD2 low profile (6.600” x 2.712”)/( 167.65 mm x 68.90 mm) *Top edge connector cable exit extends into full height card area.
• Connectors: Six SFF8643 x4
• Device Support: Up to 240 SAS and/or SATA devices
• Host Bus Type: x8 lane PCI Express 3.0 compliant
• Data Transfer Rates: Up to 12 Gb/s per port
• I/O Processor/SAS Controller: SAS3324 dual core RAID on Chip (ROC))
• Operating Temperature: Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (CVPM02): 55°C
• Operating Voltage: +3.3V, +12V
• MTBF (Calculated): >3,000,000 hours at 40°C
• Hardware Warranty: 3 years; with advanced replacement option
• MegaRAID Management Suite:
  • LSA (LSI Storage Authority)
  • MegaRAID Storage Manager
  • StorCLI (command-line interface)
  • CTRL-R (BIOS configuration utility)
  • HII (UEFI Human Interface Infrastructure)
• SSD Optimization: MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools (Optional Upgrade)
• Regulatory Certifications: USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22);Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE
