Specifications
Brand Name :
Huawei
Model Number :
S5735-S48T4X
Certification :
CE
Place of Origin :
China
Product Model :
S5735-S48T4X
Forwarding Performance :
132 Mpps
Switching Capacity2 :
176 Gbps/432 Gbps
Fixed Ports :
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
Condition :
Brand new
Warranty :
1 year
Lead time :
2-3 days
Transportation :
DHL, Fedex, UPS
Shipping time :
5-7 days
Payment :
TT, Western Union, Paypal
Description

S5735-S48T4X Overview

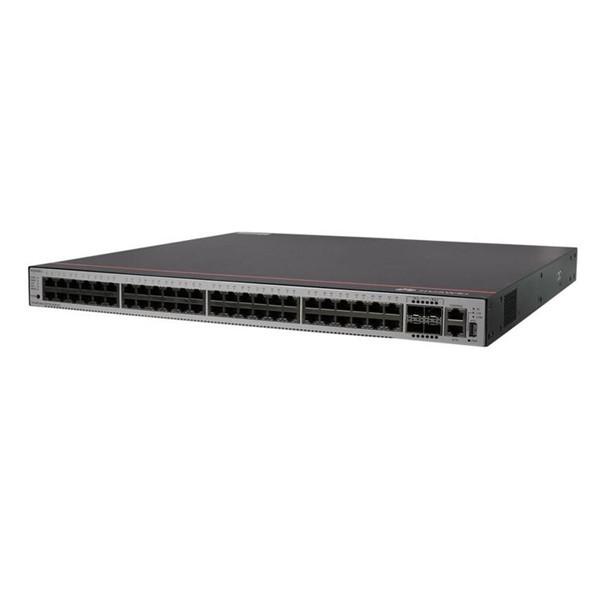

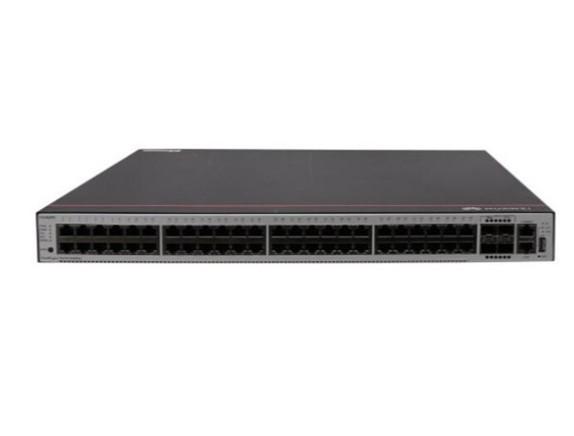

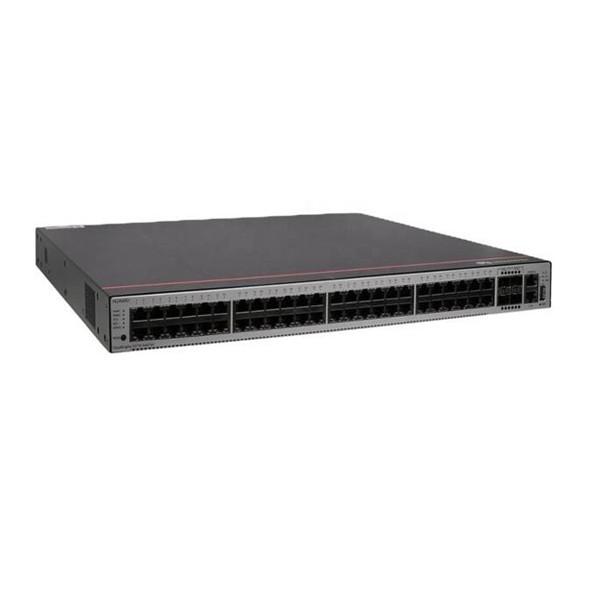

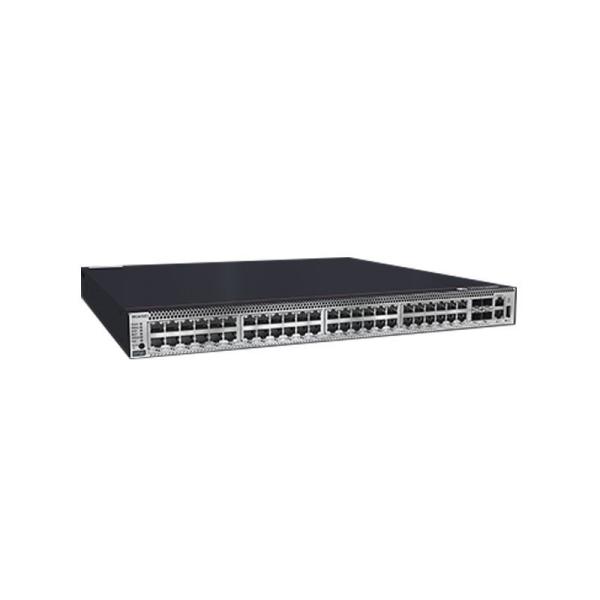

S5735-S48T4X is the Huawei S5735-S switch with 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports. Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.

S5735-S48T4X, Huawei S5735-S switch, 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, without power moduleS5735-S48T4X, Huawei S5735-S switch, 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, without power module

Supported Transceivers

Table 1 shows the recommended models.

Model Description
OMXD30000 Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
OSX010000 Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)
SFP-GE-LX-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
OSXD22N00 Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM)
SFP-10G-USR 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
OMXD30009 Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10
SFP-10G-LR Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

Compare to Similar Items

Table 2 shows the comparison.

Product Model S5735-S24T4X S5735-S24P4X S5735-S32ST4X S5735-S48T4X S5735-S48P4X S5735-S48S4X
Forwarding Performance 96 Mpps 96 Mpps 108 Mpps 132 Mpps 132 Mpps 132 Mpps
Switching Capacity 128 Gbps/336 Gbps 128 Gbps/336 Gbps 144 Gbps/432 Gbps 176 Gbps/432 Gbps 176 Gbps/432 Gbps 176 Gbps/432 Gbps
Fixed Ports 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports 48 x GE SFP ports, 4 x 10 GE SFP+ ports
PoE+ Not supported Supported Not supported Not supported Supported Not supported

S5735-S48T4X Specification

S5735-S48T4X Specification
Forwarding Performance 132 Mpps
Switching Capacity2 176 Gbps/432 Gbps
Fixed Ports 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+ Not supported
MAC Features IEEE 802.1d compliance
MAC address auto-learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features 4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP Routing Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
Super Virtual Fabric (SVF) Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operation
Interoperability VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)
