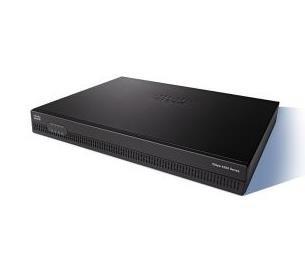

ISR4321-AXV/K9 Cisco ISR 4321 AXV Bundle With CUBE-10 IPBase APP SEC And UC Licenses
ISR4321-AXV/K9 Cisco ISR 4321 AXV Bundle With CUBE-10 IPBase APP SEC And UC Licenses
ISR4321-AXV/K9 Cisco ISR 4321 AXV Bundle With CUBE-10 IPBase APP SEC And UC Licenses
ISR4321-AXV/K9 Cisco ISR 4321 AXV Bundle With CUBE-10 IPBase APP SEC And UC Licenses
ISR4321-AXV/K9 Cisco ISR 4321 AXV Bundle With CUBE-10 IPBase APP SEC And UC Licenses
ISR4321-AXV/K9 Cisco ISR 4321 AXV Bundle With CUBE-10 IPBase APP SEC And UC Licenses
ISR4321-AXV/K9 Cisco ISR 4321 AXV Bundle With CUBE-10 IPBase APP SEC And UC Licenses
ISR4321-AXV/K9 Cisco ISR 4321 AXV Bundle With CUBE-10 IPBase APP SEC And UC Licenses
Specifications
Brand Name :
Cisco ISR4321-AXV/K9
Model Number :
ISR4321-AXV/K9
Certification :
CE ISR4321-AXV/K9
Place of Origin :
USA ISR4321-AXV/K9
Model :
ISR4321-AXV/K9
Aggregate Throughput :
50 Mbps to 100 Mbps
Default flash memory :
4 GB ISR4321-AXV/K9
Maximum flash memory :
8 GB ISR4321-AXV/K9
Power-supply options :
External: AC and PoE
Condition :
Brand New Sealed
Warranty :
1 year ISR4321-AXV/K9
Lead time :
2-3 days
Payment :
T/T, Western Union, Paypal
Shipping :
DHL, Fedex, UPS
Description

ISR4321-AXV/K9 Overview

Cisco 4321 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 100Mbps by buying FL-4320-PERF-K9 licenses. The Cisco ISR4321-AXV/K9 is the 4321 Application Experience with Voice (AXV) Bundle.

ISR4321-AXV/K9 Cisco ISR 4321 AXV Bundle With CUBE-10 IPBase APP SEC And UC Licenses

ISR4321-AXV/K9 Cisco ISR 4321 AXV Bundle With CUBE-10 IPBase APP SEC And UC Licenses

Compare to Similar Items

Product Number ISR4321-AXV/K9 ISR4331-AXV/K9
Product Description Cisco ISR 4321 AXV Bundle, with CUBE-10, IPBase, APP, SEC and UC licenses. Cisco ISR 4331 AXV Bundle with PVDM4-32, CUBE-10, IPBase, APP, SEC and UC licenses.
Aggregate Throughput 50 Mbps to 100 Mbps 100 Mbps to 300 Mbps
Total onboard WAN or LAN 10/100/1000 ports 2 3
RJ-45-based ports 2 2
SFP-based ports 1 2
NIM slots 2 2
Onboard ISC slot 1 1

ISR4321-AXV/K9 Specification

ISR4321-AXV/K9 Specification
Product Number ISR4321-AXV/K9
Product Description Cisco ISR 4321 AXV Bundle, with CUBE-10, IPBase, APP, SEC and UC licenses.
Aggregate Throughput 50 Mbps to 100 Mbps
Total onboard WAN or LAN 10/100/1000 ports 2
RJ-45-based ports 2
SFP-based ports 1
Enhanced service-module slots 0
Doublewide service-module slots 0
NIM slots 2
OIR (all I/O modules) Yes
Onboard ISC slot 1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

 4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 8 GB
Default memory DDR3 ECC DRAM (data plane) NA
Maximum memory DDR3 ECC DRAM (data plane) NA
Default memory DDR3 ECC DRAM (control/services plane) NA
Maximum memory DDR3 ECC DRAM (control/services plane) NA
Default flash memory 4 GB
Maximum flash memory 8 GB
External USB 2.0 slots (type A) 1
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port - RJ45 (up to 115.2 kbps) 1

Serial auxiliary port - RJ45

(up to 115.2 kbps)

 1
Power-supply options External: AC and PoE
Redundant power supply N/A
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 1.5 to 0.6A
AC input surge current 90 A peak and less than 3 Arms per half cycle
Typical power (no modules) (watts) 36
Maximum power with AC power supply (watts) 125
Maximum power with PoE power supply (platform only) (watts) 260
Maximum endpoint PoE power available from PoE power supply (watts) 120
