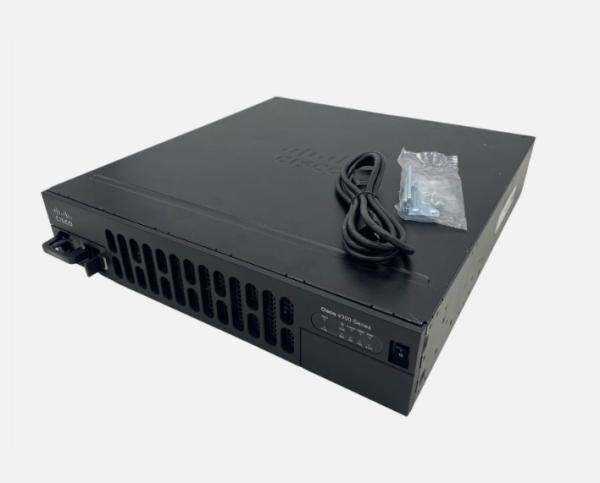

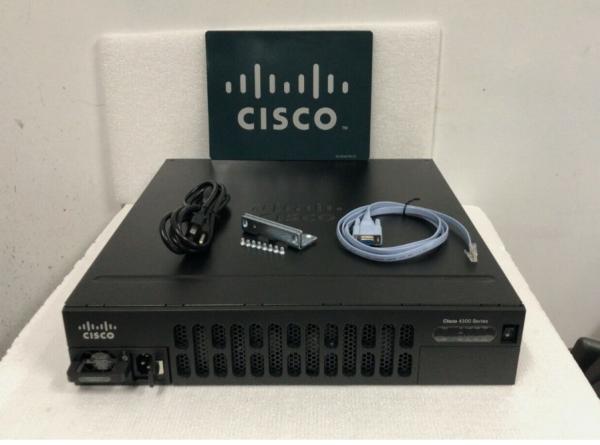

ISR4351-V/K9 200Mbps-400Mbps system throughput 3 WAN/LAN ports 3 SFP ports multi-Core CPU 2 service module slots
ISR4351-V/K9 200Mbps-400Mbps system throughput 3 WAN/LAN ports 3 SFP ports multi-Core CPU 2 service module slots
ISR4351-V/K9 200Mbps-400Mbps system throughput 3 WAN/LAN ports 3 SFP ports multi-Core CPU 2 service module slots
ISR4351-V/K9 200Mbps-400Mbps system throughput 3 WAN/LAN ports 3 SFP ports multi-Core CPU 2 service module slots
ISR4351-V/K9 200Mbps-400Mbps system throughput 3 WAN/LAN ports 3 SFP ports multi-Core CPU 2 service module slots
ISR4351-V/K9 200Mbps-400Mbps system throughput 3 WAN/LAN ports 3 SFP ports multi-Core CPU 2 service module slots
ISR4351-V/K9 200Mbps-400Mbps system throughput 3 WAN/LAN ports 3 SFP ports multi-Core CPU 2 service module slots
ISR4351-V/K9 200Mbps-400Mbps system throughput 3 WAN/LAN ports 3 SFP ports multi-Core CPU 2 service module slots
Specifications
Brand Name :
Cisco
Model Number :
ISR4351-V/K9
Certification :
CE
Place of Origin :
USA
Model :
ISR4351-V/K9
Aggregate Throughput :
200 Mbps to 400 Mbps
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/service :
4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) :
16 GB
Power-supply options :
Internal: AC, DC, and PoE
Condition :
Brand new
Warranty :
1 year
Payment :
TT, Western Union, Paypal
Transportation :
DHL, Fedex, UPS
Shipping :
5-7 days
Description

ISR4351-V/K9 Overview

Cisco ISR4351-V/K9 is ideally designed for the mid-size or even large enterprise branch environment, deliver advanced services and unprecdent level of WAN intelligence with VOIP features enabled.Scalability, High-performance, Network Services, Security and smart router is made to run multiple services.Advanced network services enable the branch to utilize the WAN intelligently is really what ISR4351/K9 all about.With feature like , Voice, AVC, performance routing (PfR), WAAS make this platform obviously more than a router, moreover, the Cisco Integrated Services Router 4351 include supporting OnePk, AppNav, making the platform easier to scale the network and application integration.

ISR4351-V/K9 200Mbps-400Mbps system throughput 3 WAN/LAN ports 3 SFP ports multi-Core CPU 2 service module slotsISR4351-V/K9 200Mbps-400Mbps system throughput 3 WAN/LAN ports 3 SFP ports multi-Core CPU 2 service module slots

Compare to Similar Items

Models ISR4351-V/K9 ISR4351/K9
Description Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle) Cisco ISR 4351 (3GE,3NIM,2SM,4G FLASH,4G DRAM,IP Base)
Aggregate Throughput 200 Mbps to 400 Mbps 200 Mbps to 400 Mbps

Total onboard WAN or

LAN 10/100/1000 ports

 3 3
RJ-45-based ports 3 3
SFP-based ports 3 3
Enhanced service-module slots 2 2
NIM slots 3 3
Onboard ISC slot 1 1
Rack height 2 2

ISR4351-V/K9 Specification

ISR4351-V/K9 Specification
Description Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle)
Aggregate Throughput 200 Mbps to 400 Mbps
Total onboard WAN or LAN 10/100/1000 ports 3
RJ-45-based ports 3
SFP-based ports 3
Enhanced service-module slots 2
Doublewide service-module slots 1 (assumes no singlewide SM-X modules installed)
NIM slots 3
OIR (all I/O modules) Yes
Onboard ISC slot 1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

 4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 16 GB
Default memory DDR3 ECC DRAM (data plane) NA
Maximum memory DDR3 ECC DRAM (data plane) NA
Default memory DDR3 ECC DRAM (control/services plane) NA
Maximum memory DDR3 ECC DRAM (control/services plane) NA
Default flash memory 4 GB
Maximum flash memory 16 GB
External USB 2.0 slots (type A) 2
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port - RJ45 (up to 115.2 kbps) 1

Serial auxiliary port - RJ45

(up to 115.2 kbps)

 1
Power-supply options Internal: AC, DC, and PoE
Redundant power supply N/A
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 7.1 to 3.0A
AC input surge current 60 A peak and less than 12 Arms per half cycle
Typical power (no modules) (watts) 48
Maximum power with AC power supply (watts) 430
Maximum power with PoE power supply (platform only) (watts) 990
Maximum endpoint PoE power available from PoE power supply (watts) 500

ISR4351-V/K9 200Mbps-400Mbps system throughput 3 WAN/LAN ports 3 SFP ports multi-Core CPU 2 service module slots
