USG6370-AC Huawei USG6300 Cisco Hardware Firewall 4GE SFP 4GB Memory 1 AC Power
USG6370-AC Huawei USG6300 Cisco Hardware Firewall 4GE SFP 4GB Memory 1 AC Power
USG6370-AC Huawei USG6300 Cisco Hardware Firewall 4GE SFP 4GB Memory 1 AC Power
USG6370-AC Huawei USG6300 Cisco Hardware Firewall 4GE SFP 4GB Memory 1 AC Power
Specifications
Brand Name :
HUAWEI
Model Number :
USG6370-AC
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiatable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100 PCS/MONTH
Delivery Time :
1-2 DAYS
Packaging Details :
NEW IN BOX
Brand :
HUAWEI
PN :
USG6370-AC
FW + SA* Throughput2 :
4 Gbit/s
SSL VPN Throughput5 :
200 Mbit/s
Security Policies (maximum) :
15,000
URL Filtering: Categories :
More than 130
Description


USG6370-AC Huawei USG6300 Next-Generation Firewall 4GE ( SFP ) 4GB Memory 1 AC Power

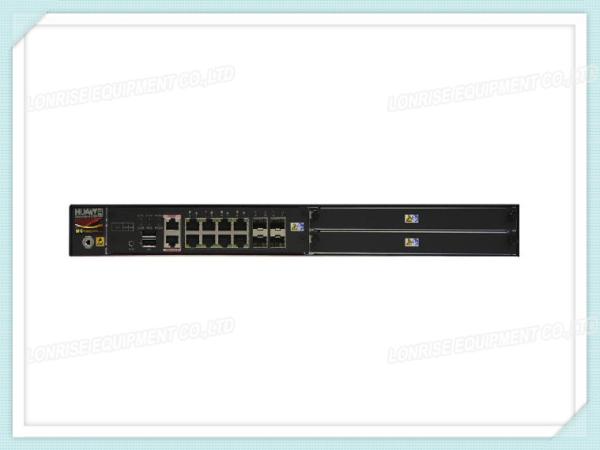

USG6370-AC Overview

The Huawei USG6370-AC, next-generation firewall, is designed for Medium-sized Businesses and branch offices with 800 to 1000 users. It builds with 8GE (RJ-45) ports 4GB memory, and 1 power supply.

USG6370-AC Huawei USG6300 Cisco Hardware Firewall 4GE SFP 4GB Memory 1 AC Power

USG6320-AC Specification

USG6320-AC specification

Firewall throughpt2 Gbit/s
IPS throughpt700Mbit/s
IPS+AV throughput700Mbit/s
Concurrent sessions500,000
New sessions per second20,000
VPN Throughput(IPSec)400Mbit/s
Virtual firewalls20
Fixed port8GE
Expansion Slotsnone
Interface modulenone
HeightDesktop
Dimensions(H x W x D)300*220*44.5
Weight (full configuration)1.7kg
HDDnone
Redundant power supplyAdepter
AC power supply100 V to 240 V
DC power supplynone
Maximum power60W
Operating environment:(Temperature/Humidity)

Temperature: 0℃to 40℃
Humidity: 10% to 90%

Non-operating environment

Temperature: -40℃to 70℃
Humidity: 5% to 95%



USG6370-AC Specification

USG6370-AC Specifications

DescriptionUSG6370 AC Host (8GE (RJ45) +4GE (SFP), 4GB Memory, 1 AC Power)
IPv4 Firewall Throughput1(1,518/512/64-byte, UDP)4/4/1.2 Gbit/s
IPv6 Firewall Throughput1(1,518/512/84-byte, UDP)4/4/1.6 Gbit/s
Firewall Throughput (packets per second)1.8 Mpps
Firewall Latency (64-byte, UDP)25 µs
FW + SA* Throughput24 Gbit/s
FW + SA + IPS Throughput22 Gbit/s
FW + SA + Antivirus Throughput22 Gbit/s
FW + SA + IPS + Antivirus + URL Throughput21.4 Gbit/s
FW + SA + IPS + Antivirus Throughput (real world)31 Gbit/s
Concurrent Sessions (HTTP1.1)14,000,000
New Sessions/Second (HTTP1.1)160,000
IPsec VPN Throughput1 (AES-128 + SHA1, 1,420-byte)3 Gbit/s
Maximum IPsec VPN Tunnels (GW to GW)4,000
Maximum IPsec VPN Tunnels (client to GW)4,000
SSL Inspection Throughput490 Mbit/s
SSL VPN Throughput5200 Mbit/s
Concurrent SSL VPN Users (default/maximum)100/1,000
Security Policies (maximum)15,000
Virtual Firewalls (default/maximum)10/100
URL Filtering: CategoriesMore than 130
URL Filtering: URLsCan access a database of over 120 million URLs in the cloud
Third-Party and Open-Source Ecosystem6Open APIs for integration with third-party products through RESTCONF and NETCONF interfaces
Other third-party management software based on SNMP, SSH, and syslog
Collaboration with third-party tools, such as FireMon
Collaboration with Anti-APT solution
Centralized ManagementCentralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and LogCenter
VLANs (maximum)4,094
Virtual Interfaces (maximum)1,024
High Availability ConfigurationsActive/Active, Active/Standby
Dimensions (H x W x D)44.4 mm x 442 mm x 421 mm
Form Factor/Height1U
Fixed Interfaces8 x GE (RJ45) + 4 x GE (SFP)
USB 2.0 PortSupported
Expansion Slot2 WSIC*
Expansion I/OWSIC: 2 x 10 GE (SFP+) + 8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), 4 x GE (RJ45) BYPASS
Maximum Number of Interfaces24 x GE (RJ45) + 4 x GE (SFP) + 4 x 10 GE (SFP+) or 20 x GE (SFP) + 8 × GE (RJ45)
MTBF11.96 years
Weight (full configuration)8.6 kg
Local StorageOptional: Supports a 300 GB or 600 GB hard disk (the hard disk is hot-swappable, but the hard disk card is not)
AC Power Supply100V to 240V, 50 Hz/60 Hz
Power Consumption (average/maximum)56.13W/133.74W
Heat Dissipation456 BTU/h
Power SuppliesSingle 170W AC power supply; optional dual AC power supplies
Operating Environment (temperature/humidity)Temperature: 0°C to 45°C (without optional HDD);
5°C to 40°C (with optional HDD) Humidity: 5% to 95% (without optional HDD), non-condensing;
5% to 90% (with optional HDD), non-condensing
Non-operating EnvironmentTemperature: –40°C to 70°C
Humidity: 5% to 95% (without optional HDD), non-condensing;
5% to 90% (with optional HDD), non-condensing
Operating Altitude (maximum)5,000 meters (without optional HDD); 3,000 meters (with optional HDD)
Non-operating Altitude (maximum)5,000 meters (without optional HDD); 3,000 meters (with optional HDD)
Noise63 dBA
SoftwareICSA Labs: Firewall, IPS, IPsec, and SSL VPN CC: EAL4+
HardwareCB, CE-SDOC, ROHS, REACH & WEEE (EU), RCM, ETL, FCC & IC, VCCI, and BSMI
Regulatory ComplianceProducts comply with CE markings per directives 2014/30/EU and 2014/35/EU
SafetyUL 60950-1
CSA-C22.2 No. 60950-1
EN 60950-1
IEC 60950-1
EMC: EmissionsEN 55022 Class A
ETSI EN 300 386
IEC 61000-3-2/EN 61000-3-2
IEC 61000-3-3/EN 61000-3-3
FCC CFR47 Part 15 Subpart B Class A
ICES-003 Class A
VCCI V-3 Class A
CNS 13438 Class A
EMC: ImmunityEN 55024
ETSI EN 300 386
CNS 13438 Class A
