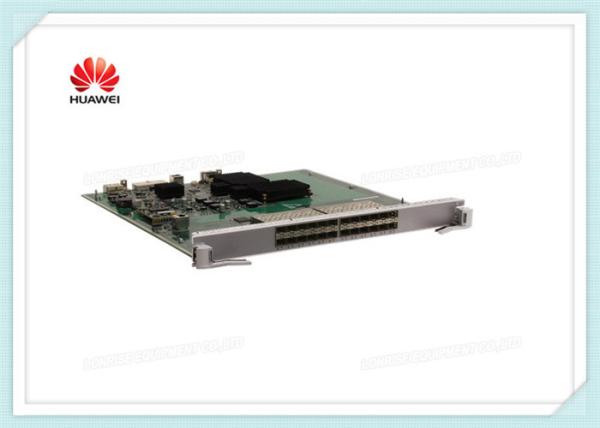

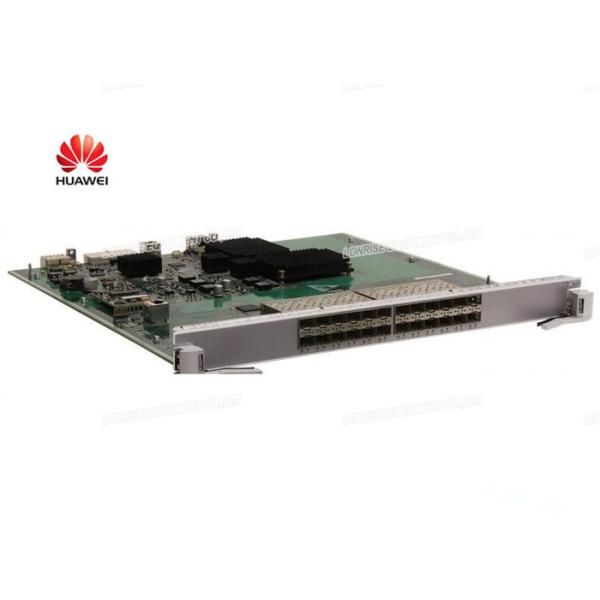

24 Port 100/1000BASE-X Huawei Interface Card EC SFP ES0D0G24SC00 03030MQN
24 Port 100/1000BASE-X Huawei Interface Card EC SFP ES0D0G24SC00 03030MQN
24 Port 100/1000BASE-X Huawei Interface Card EC SFP ES0D0G24SC00 03030MQN
24 Port 100/1000BASE-X Huawei Interface Card EC SFP ES0D0G24SC00 03030MQN
Specifications
Brand Name :
Huawei
Model Number :
ES0D0G24SC00
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
Western Union, Paypal,T/T
Supply Ability :
1000 Pcs /Month
Delivery Time :
1~2 days
Packaging Details :
New in box
Brand :
Huawei
Attributes :
Hardware
Product Family :
Switch
Dimension(D*W*H mm) :
380*378*35
Description

Huawei ES0D0G24SC00, 03030MQN, 24-port 100/1000BASE-X interface card (EC, SFP) for Huawei S7700 S7703/S7706/S7712

ES0D0G24SC00 Overview

Huawei ES0D0G24SC00 can be installed in a front card slot on S7703, S7706, S7712 switch, provides 24 GE optical ports fordata transmission and line-speed switching.

ES0D0G24SC00 comes with original box, if purchase together with Switch, the module will insert inside Switch by default when delivery, to economical volume weight; If need delivery separately with original box, please contact Thunder-link.com sales team in advance.

Function and Feature

Description

Basic function

Provides twenty-four GE optical ports for data transmission and line-rate switching.

Distributed forwarding

Performs concurrent data forwarding using a distributed data plane.

Buffer

4 MB

MAC Address Table Size

128K

Hot swap

The ES0D0G24SC00 is hot swappable.

24 Port 100/1000BASE-X Huawei Interface Card EC SFP ES0D0G24SC00 03030MQN

ES0D0G24SC00 Specification

Part Number

03030MQN

Model

ES0D0G24SC00

Description

24-Port 100/1000BASE-X Interface Card(EC,SFP)

Attributes

Hardware

Category

Hardware

Product Line

Networking

Product Family

Switch

Product Category

S7700 Interface Card

Sub Product Family

Campus Switch

Product Series

S7700

EAN

6.9207E+12

UOM

PCS

Pack Weight(kg)

3.65

Pack Volume(m^3)

0.0277

Pack Dimension(D*W*H mm)

502*468*118

Net Dimension(D*W*H mm)

380*378*35

Typic Power(W)

40

Attribute

Description

Connector type

SFP

Optical port attributes

Depend on the SFP copper module used.

For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (10 Mbit/s, 100 Mbit/s and 1000 Mbit/s rates).

Standards compliance

IEEE 802.3ab

Frame format

Ethernet_II, Ethernet_SAP, Ethernet_SNAP

Network protocol

IP

1.Can we get a lower price?
Yes,price is not a problem,everything could be negotiated based on the quantity.

2.What is your MOQ?
No MOQ for any sample test.

3.OEM,ODM Service is available?
Yes, Commai have strong ability to offer customers ODM&OEM products of highest quality.
And it will requirement about your quantity.
