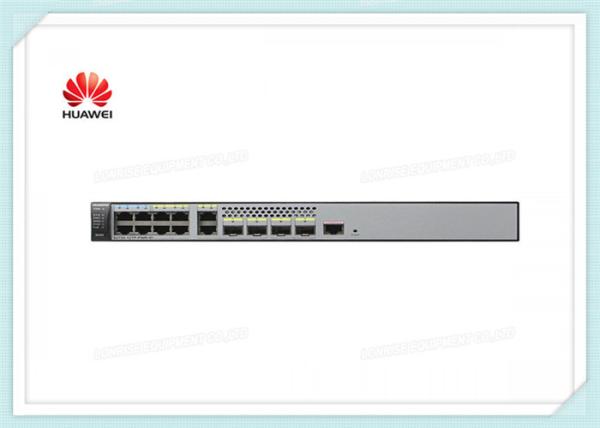

Huawei S2720-12TP-PWR-EI 4 X 10/100 Base-TX Ethernet Ports 4 X GE Ports 4 X GE Ports
Huawei S2720-12TP-PWR-EI 4 X 10/100 Base-TX Ethernet Ports 4 X GE Ports 4 X GE Ports
Huawei S2720-12TP-PWR-EI 4 X 10/100 Base-TX Ethernet Ports 4 X GE Ports 4 X GE Ports
Huawei S2720-12TP-PWR-EI 4 X 10/100 Base-TX Ethernet Ports 4 X GE Ports 4 X GE Ports
Specifications
Brand Name :
Huawei
Model Number :
S2720-12TP-PWR-EI
Certification :
CE
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
1000 Piece/Month
Delivery Time :
2-3days
Packaging Details :
Common Package
Condition :
NIB and Used
Branch :
Huawei
Dimensions :
320 mm x 220 mm x 43.6 mm
Switch Capacity :
68 Gbit/s
Forwarding Performance :
12.6 Mpps
Type :
AC 110V/220V
Description

Huawei S2720-12TP-PWR-EI 4 x 10/100 Base-TX Ethernet ports; 4 x GE ports 4 x GE ports

S2720-12TP-PWR-EI Overview

The S2720-EI is a next-generation access switch that provides flexible 100M, GE access ports and GE uplink ports. Building on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), the S2720-EI supports intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective 100M to the desktop solution.

Huawei S2720-12TP-PWR-EI 4 X 10/100 Base-TX Ethernet Ports 4 X GE Ports 4 X GE Ports

S2720-12TP-PWR-EI Specification

Model Description

S2720-12TP-EI
  • 4 x Ethernet 10/100 Base-Tx ports, 4 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, and 2 x Combo Gig ports
  • AC power supply
  • Forwarding performance: 12.6 Mpps
  • Switching capacity: 68 Gbit/s

S2720-12TP-PWR-EI
  • 4 x Ethernet 10/100 Base-Tx ports, 4 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, and 2 x Combo Gig ports
  • AC power supply
  • PoE+
  • Forwarding performance: 12.6 Mpps
  • Switching capacity: 68 Gbit/s

S2720-28TP-PWR-EI-L
  • 16 x Ethernet 10/100 Base-Tx ports, 8 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, and 2 x Combo Gig ports
  • 8 x PoE+ ports
  • AC power supply
  • Forwarding performance: 20.4 Mpps
  • Switching capacity: 68 Gbit/s

S2720-28TP-EI
  • 16 x Ethernet 10/100 Base-Tx ports, 8 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, and 2 x Combo Gig ports
  • AC power supply
  • Forwarding performance: 20.4 Mpps
  • Switching capacity: 68 Gbit/s

S2720-28TP-PWR-EI
  • 16 x Ethernet 10/100 Base-Tx ports, 8 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, and 2 x Combo Gig ports
  • AC power supply
  • PoE+
  • Forwarding performance: 20.4 Mpps
  • Switching capacity: 68 Gbit/s

S2720-52TP-EI
  • 32 x Ethernet 10/100 Base-Tx ports, 16 x Ethernet 10/100/1,000 Base-T ports, and 4 x Gig SFP ports
  • AC power supply
  • Forwarding performance: 34.8 Mpps
  • Switching capacity: 336 Gbit/s

S2720-52TP-PWR-EI
  • 32 x Ethernet 10/100 Base-Tx ports, 16 x Ethernet 10/100/1,000 Base-T ports, and 4 x Gig SFP ports
  • AC power supply
  • PoE+
  • Forwarding performance: 34.8 Mpps
  • Switching capacity: 336 Gbit/s

  • In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), the S2720-EI supports Huawei-developed Smart Ethernet Protection (SEP) technology and the latest Ethernet Ring Protection Switching (ERPS) standard. SEP is a ring protection protocol specific to the Ethernet link layer, and applies to various ring network topologies, such as open ring topology, closed ring topology, and cascading ring topology. This protocol is reliable, easy to maintain, and implements fast protection switching within 50 ms. ERPS is defined in ITU-T G.8032. It implements millisecond-level protection switching based on traditional Ethernet MAC and bridging functions.

  • The S2720-EI supports Smart Link, which implements backup of uplinks. One S2720-EI switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices.

  • The S2720-EI supports Ethernet OAM (IEEE 802.3ah/802.1ag) to fast-detect link faults.

Business

Huawei S2720-12TP-PWR-EI 4 X 10/100 Base-TX Ethernet Ports 4 X GE Ports 4 X GE Ports Huawei S2720-12TP-PWR-EI 4 X 10/100 Base-TX Ethernet Ports 4 X GE Ports 4 X GE Ports Huawei S2720-12TP-PWR-EI 4 X 10/100 Base-TX Ethernet Ports 4 X GE Ports 4 X GE Ports
