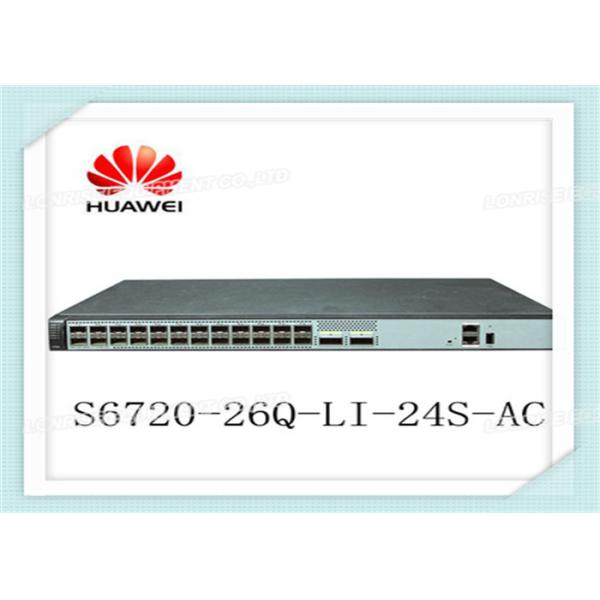

Huawei Ethernet Switch S6720S-26Q-LI-24S-AC 24 Ports 10 Gigabit Support Long Distance PoE
Huawei Ethernet Switch S6720S-26Q-LI-24S-AC 24 Ports 10 Gigabit Support Long Distance PoE
Huawei Ethernet Switch S6720S-26Q-LI-24S-AC 24 Ports 10 Gigabit Support Long Distance PoE
Huawei Ethernet Switch S6720S-26Q-LI-24S-AC 24 Ports 10 Gigabit Support Long Distance PoE
Specifications
Brand Name :
HUAWEI
Model Number :
S6720S-26Q-LI-24S-AC
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiatable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100 PCS/MONTH
Delivery Time :
1-2 DAYS
Packaging Details :
NEW IN BOX
Brand :
HUAWEI
PN :
S6720S-26Q-LI-24S-AC
Ports :
24 x 10 GE SFP+ ports 2 x 40 GE QSFP+ ports
Switching Capacity :
1.28 Tbit/s
Power Supply :
AC Power Supply
Forwarding Performance :
240 Mpps
Description

Huawei Ethernet Switch S6720S-26Q-LI-24S-AC 24 Ports 10 gigabit Long Distance PoE

S6720S-26Q-LI-24S-AC Overview

The switches of the Huawei S6720-SI series are 10 GE multi-gigabit fixed switches of the latest generation. The S6720-SI series can provide access to high-speed wireless devices and 10G data center servers, and can serve as university network access / aggregation switches.

The S6720-SI series provides the industry's highest performance among fixed multi-gigabit switches, with 100M / 1G / 2.5G / 5G / 10G line access ports and 40 top link ports. They can provide access to high-speed AP and high-density 10G servers, and can serve as GE 40 core / aggregation switches in university networks. In addition, the S6720-SI series offers a wide range of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and data center networks and the secure field.

Huawei Ethernet Switch S6720S-26Q-LI-24S-AC 24 Ports 10 Gigabit Support Long Distance PoE

S6720S-26Q-LI-24S-AC Specification

Specification
Fixed port 24x10GE SFP+, 2x40GE QSFP+ ports
Forwarding performance 240 Mpps
Extended slot Not supported
MAC address table 32K
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN features 4K VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
VLAN Mapping
Basic QinQ and selective QinQ
IPv4 routing Static routing, RIP, and OSPF
VRRP
Policy-based routing
Routing policies
IPv6 routing Static routing
RIPng
OSPFv3
IPv6 features Neighbor Discovery (ND) and ND snooping
IPv6 Ping
VRRP6
DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay
Multicast IGMPv1/v2/v3 snooping
Fast leave
IGMP snooping proxy
Multicast Listener Discovery (MLD) snooping
Port-based multicast traffic suppression
Inter-VLAN multicast replication, Controllable multicast
QoS/ACL Traffic classification based on ACLs
Traffic classification based on outer 802.1p fields, outer VL AN IDs,
source MAC addresses, and Ethernet types
Access control after traffic classification
Traffic policing based on traffic classifiers
Re-marking based on traffic classifiers
Class-based packet queuing
Associating traffic classifiers with traffic behaviors
Rate limiting on inbound and outbound ports
Traffic shaping based on ports and queues
Tail drop Priority Queuing (PQ)
Deficit Round Robin (DRR)
PQ + DRR scheduling
Weighted Round Robin (WRR)
PQ + WRR scheduling
Reliability STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
protection switchover
Smart Ethernet Protection (SEP)
G.8032 Ethernet Ring Protection Switching (ERPS)
Enhanced trunk (E-trunk)
Security features Defense against DoS, ARP, and ICMP attacks
Binding of the IP address, MAC address, port number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC-Forced Forwarding (MACFF)
Limit on the number of learned MAC addresses
IEEE 802.1X authentication and the limit on the number of users on a port
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
CPU defense
Super Virtual Fabric (SVF) SVF Client
Management and
maintenance		 iStack (using service ports as stack ports)
Virtual Cable Test (VCT)
Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)
SNMPv1/v2/v3
RMON
Web-based network management system and relevant features
System logs and multi-level alarms
GVRP
MUX VLAN
sFlow
SSH2
HTTPS
Operating environment Working temperature: 0 m–1800 m, 0°C–45°C; 1800 m–5000 m, the highest operating
temperature reduces by 1°C every time the altitude increases by 220 m.
Relative humidity: 5% to 95% (noncondensing
Input AC voltage AC:
Rated voltage range: 100 V to 240 V A C, 50/60 Hz
Maximum voltage range: 90 V to 264 V A C, 47/63 H
Dimensions 420 (W)×220 (W)×43.6 (H)
Typical power consumption 67.1W
