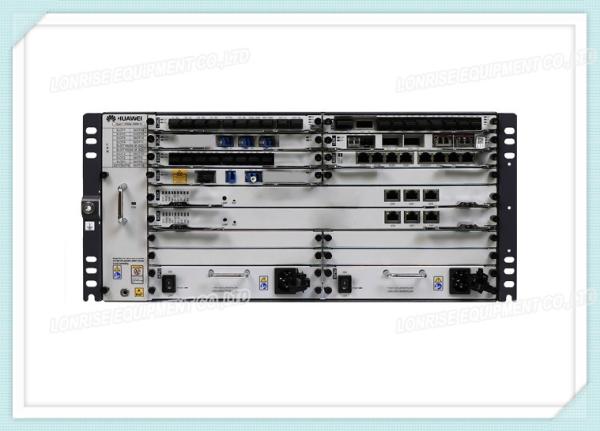

Huawei OptiX OSN 1800 V Chassis Supports Full Granularity Cross Connections And Multiplexing
Huawei OptiX OSN 1800 V Chassis Supports Full Granularity Cross Connections And Multiplexing
Specifications
Brand Name :
HUAWEI
Model Number :
Huawei OptiX OSN 1800 V
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiatable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100 PCS/MONTH
Delivery Time :
1-2 DAYS
Packaging Details :
NEW IN BOX
Brand :
HUAWEI
PN :
Huawei OptiX OSN 1800 V
OTN capacity :
700 Gbit/s
Packet capacity :
700 Gbit/s
DWDM :
80
CWDM :
8
Description



Huawei OptiX OSN 1800 V Chassis Supports Full Granularity Cross Connections And Multiplexing

Huawei OptiX OSN 1800 V Overview

The Huawei OptiX OSN 1800 is a new-generation packet enhanced multi-service optical transport platform that supports unified switching of OTN/PKT/SDH services and access of any 2M to 100G services such as Ethernet, TDM, and private line services. In addition, the OSN 1800 integrates the Multiprotocol Label Switching traffic policing (MPLS-TP) functions to optimize fiber resource usage in metro networks, and provides cost-effective, efficient service transmission solutions for sectors such as finance, media, government, energy, and education.

Huawei OptiX OSN 1800 V Specification

Huawei OptiX OSN 1800 V Specification
Dimensions (mm) 221 x 442 x 224 (H x W x D) (excluding mounting ears)
Number of service board slots

• DC chassis: 15

• AC chassis: 12
Optical-layer cross-connect capability 1-degree to 9-degree ROADM
Device capacity OTN OTN capacity: 700 Gbit/s
Packet Packet capacity: 700 Gbit/s
TDM 280 Gbit/s higher-order capacity, 40 Gbit/s lower-order capacity
Maximum number of wavelengths DWDM 80
CWDM 8
Maximum rate per channel 200 Gbit/s
Supported service type

SDH service (STM-1/4/16/64), PDH service (E1/T1/E3/T3/E4), OTN service (OTU1/2/2e/4),

Ethernet service (FE/GE/10GE/40GE/100GE), PCM service, CPRI service, OBSAI service, SAN service, video, and others
PCM interface FXS/FXO, 2/4 line audio+E&M, G.703 64 kbit/s codirectional,V.35/V.24(synchronous/asynchronous RS232)/X.21,RS449(RS423A/RS422A)/RS530/RS530A/RS485/Dry Contact
Network application Pure packet networking, pure OTN networking, pure TDM networking, MS-OTN networking (OTN+packet+TDM),hybrid networking (packet+TDM), OTN+packet networking, and OTN+TDM networking

Redundancy

and protection

 Network-level protection (OTN) Client 1+1 protection, intra-board 1+1 protection, ODUk SNCP, optical line protection, tributary SNCP, and LPT
Network-level protection (packet) Tunnel APS, PW APS/FPS, MC-PW APS, MC-LAG, LPT, LAG, ERPS, MRPS, LMSP, and packet SNCP
Network-level protection (TDM)

• SDH protection: SNCP, linear MSP, ring MSP, TPS, E1 SNCP, 64K SNCP, and hitless protection switching

• EoS protection: LAG, DLAG, LCAS, LPT, STP/RSTP

• PCM protection: E1 SNCP, 64K SNCP, and hitless protection switching

Equipment-level

protection

• Backup of cross-connect, system control, and clock units

• Power supply backup

• Fan backup
Easy O&M OD and FD systems
Synchronization

• Physical-layer clock (OTN&packet&SDH)

• IEEE 1588v2 (OTN&packet)

• ITU-T G.8275.1/G.8273.2 (OTN&packet)
ASON OTN network: electrical-layer ASON (only for Z series cross-connections)
Power supply

• DC power input: standard operating voltage: –48 V DC/–60 V DC

• AC power input: standard operating voltage: 110 V AC/220 V AC


Huawei OptiX OSN 1800 V Chassis Supports Full Granularity Cross Connections And Multiplexing
