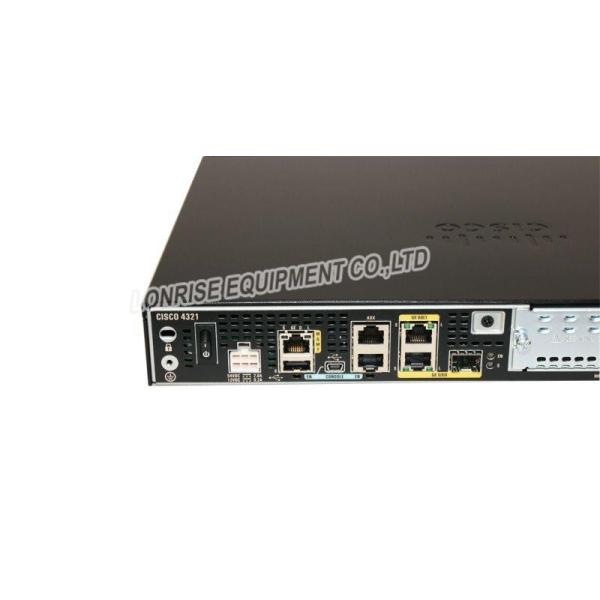

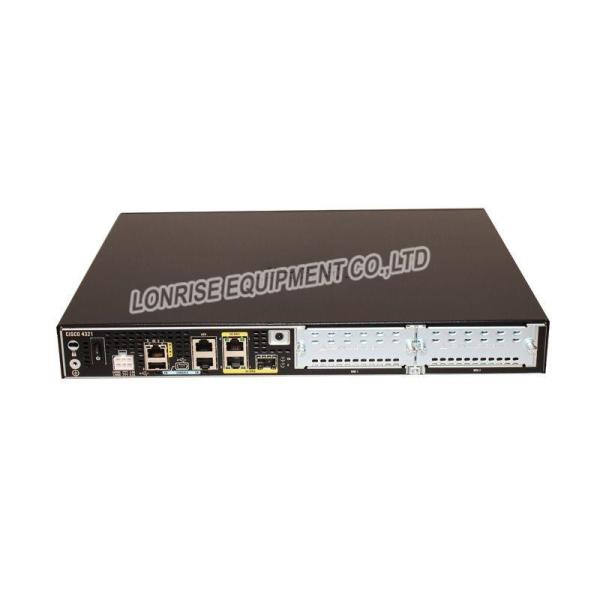

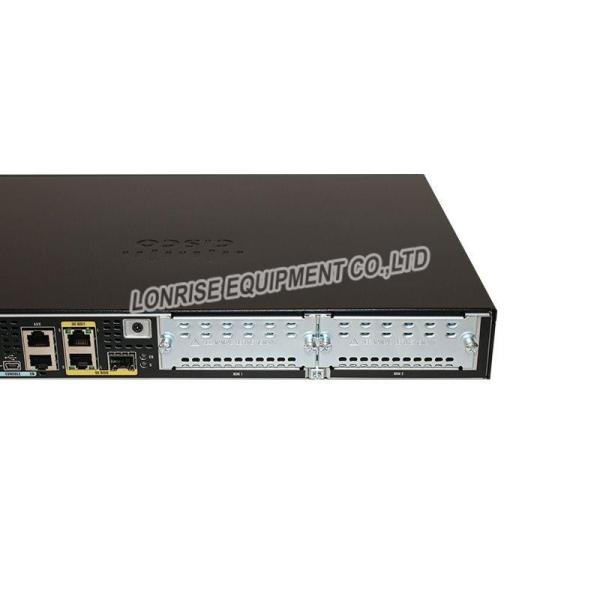

ISR4321-AXV/K9 New Original Bundle CUBE-10 IPBase APP SEC UC Licenses
ISR4321-AXV/K9 New Original Bundle CUBE-10 IPBase APP SEC UC Licenses
ISR4321-AXV/K9 New Original Bundle CUBE-10 IPBase APP SEC UC Licenses
ISR4321-AXV/K9 New Original Bundle CUBE-10 IPBase APP SEC UC Licenses
ISR4321-AXV/K9 New Original Bundle CUBE-10 IPBase APP SEC UC Licenses
ISR4321-AXV/K9 New Original Bundle CUBE-10 IPBase APP SEC UC Licenses
ISR4321-AXV/K9 New Original Bundle CUBE-10 IPBase APP SEC UC Licenses
ISR4321-AXV/K9 New Original Bundle CUBE-10 IPBase APP SEC UC Licenses
Specifications
Brand Name :
Cisco
Model Number :
ISR4321-AXV/K9
Certification :
CE
Place of Origin :
USA
MOQ :
1pc
Price :
US$1600/PC
Name :
ISR4321-AXV/K9 New Original Bundle CUBE-10 IPBase APP SEC UC licenses
Product Model :
ISR4321-AXV/K9
Forwarding Performance :
132 Mpps
Switching Capacity2 :
176 Gbit/s/432 Gbit/s
Fixed Ports :
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+ :
Supported
Port :
Shanghai
Keywords :
Cisco Catalyst c4300 Switches
Description

ISR4321-AXV/K9 Overview

Cisco 4321 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 100Mbps by buying FL-4320-PERF-K9 licenses. The Cisco ISR4321-AXV/K9 is the 4321 Application Experience with Voice (AXV) Bundle.

ISR4321-AXV/K9 Specification
Product Number ISR4321-AXV/K9
Product Description Cisco ISR 4321 AXV Bundle, with CUBE-10, IPBase, APP, SEC and UC licenses.
Aggregate Throughput 50 Mbps to 100 Mbps
Total onboard WAN or LAN 10/100/1000 ports 2
RJ-45-based ports 2
SFP-based ports 1
Enhanced service-module slots 0
Doublewide service-module slots 0
NIM slots 2
OIR (all I/O modules) Yes
Onboard ISC slot 1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

 4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 8 GB
Default memory DDR3 ECC DRAM (data plane) NA
Maximum memory DDR3 ECC DRAM (data plane) NA
Default memory DDR3 ECC DRAM (control/services plane) NA
Maximum memory DDR3 ECC DRAM (control/services plane) NA
Default flash memory 4 GB
Maximum flash memory 8 GB
External USB 2.0 slots (type A) 1
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port - RJ45 (up to 115.2 kbps) 1

Serial auxiliary port - RJ45

(up to 115.2 kbps)

 1
Power-supply options External: AC and PoE
Redundant power supply N/A
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 1.5 to 0.6A
AC input surge current 90 A peak and less than 3 Arms per half cycle
Typical power (no modules) (watts) 36
Maximum power with AC power supply (watts) 125
Maximum power with PoE power supply (platform only) (watts) 260
Maximum endpoint PoE power available from PoE power supply (watts) 120
ISR4321-AXV/K9 New Original Bundle CUBE-10 IPBase APP SEC UC LicensesISR4321-AXV/K9 New Original Bundle CUBE-10 IPBase APP SEC UC Licenses
