CloudEngine Gigabit Network Managed Switch Huawei S5736-S24UM4XC

Specifications

Brand Name :

HUAWEI

Model Number :

S5736-S24UM4XC

Certification :

Place of Origin :

china

MOQ :

Product Model :

S5736-S24UM4XC

PoE :

Not Support

Memory (RAM) :

1GB

Flash :

512 MB in total.

Mean time to repair (MTTR) :

2.37 hours

Codition :

new

Warranty :

1 year

Fixed Ports :

24 × 10/100Base-Tx ports, 24 × 10/100/1000Base-T ports,4 × GE SFP ports

Description

S5736-S24UM4XC Overview:

Huawei CloudEngine S5736-S Series Multi-GE Switches S5736-S24UM4XC - 24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 10 GE SFP+

Model	CloudEngine S5736-S24UM4XC
Forwarding Performance	480 mpps
Switching Capacity	880 Gbit/s/2.72 Tbit/s
Fixed Ports	24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 10 GE SFP+
PoE++ (90 W)	Supported, up to 90 W PoE++ per port
Extended Slots	One extended slot, supporting 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 4 x 40 GE QSFP+ cards
MAC Address Table	32,000 MAC entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4094 VLANs Guest VLAN, voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)

Huawei CloudEngine S5736-S Series Multi-GE Switches S5736-S24UM4XC - 24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 10 GE SFP+

CloudEngine Gigabit Network Managed Switch Huawei S5736-S24UM4XC

https://shuaiqicn.en.alibaba.com/

S5735-L24P4S-A Overview

Establish Fast and Easy-to-use Network by Powerful Switches.

Choose top branded switches to accelerate your business, including Cisco, Huawei, Juniper, etc.

• Access Switches • SMB Switches • Data Center Switches • Switch Selector

Check Now >

S5735-L24P4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

Quick Spec

Table 1 shows the quick spec.

Product Model	S5735-L24P4S-A
Forwarding Performance	42 Mpps
Switching Capacity2	56 Gbit/s/336 Gbit/s
Fixed Ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports
PoE+	Supported

Product Details

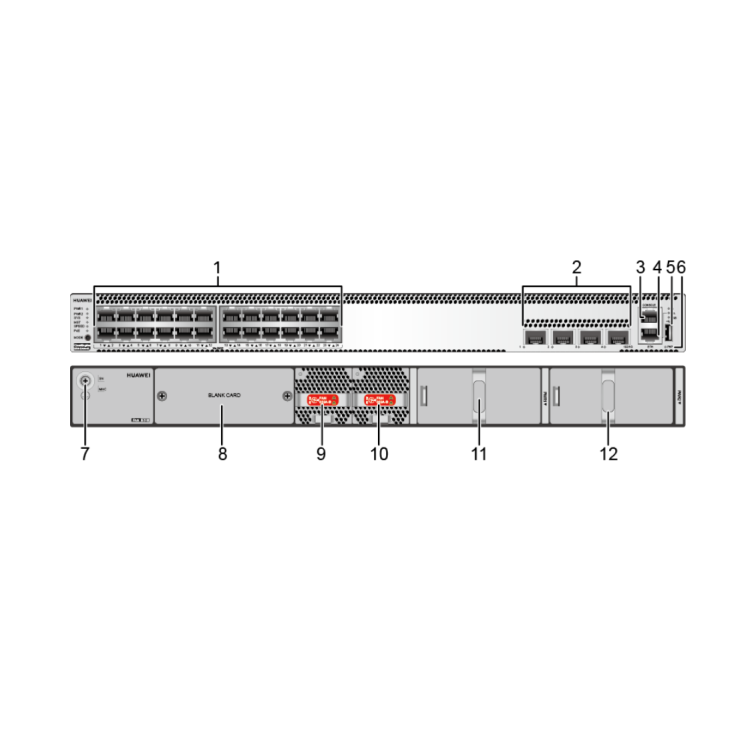

Figure 1 shows the front ports of S5735-L24P4S-A.

CloudEngine Gigabit Network Managed Switch Huawei S5736-S24UM4XC

Note:

①	24 10/100/1000BASE-T ports	④	One PNP button
②	Four 1000BASE-X ports	⑤	One USB port
③	One ETH management port	⑥	One console port

Figure 2 shows the back view of S5735-L24P4S-A.

CloudEngine Gigabit Network Managed Switch Huawei S5736-S24UM4XC

Note:

①	Ground screw
②	Jack for AC power cable locking strap
③	AC socket

Supported Transceivers

Table 2 shows the recommended models.

Model	Description
OMXD30000	Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
OSXD22N00	Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM)
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
OMXD30009	Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10
SFP-10G-LR	Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

Compare to Similar Items

Table 3 shows the comparison.

Product Model	S5735-L12T4S-A S5735-L12P4S-A	S5735-L24T4S-A S5735-L24P4S-A	S5735-L24T4X-A S5735-L24P4X-A	S5735-L48T4S-A	S5735-L48T4X-A S5735-L48P4X-A	S5735-L32ST4X-A
Forwarding Performance	24 Mpps	42 Mpps	96 Mpps	78 Mpps	132 Mpps	108 Mpps
Switching Capacity2	32 Gbit/s/336 Gbit/s	56 Gbit/s/336 Gbit/s	128 Gbit/s/336 Gbit/s	104 Gbit/s/432 Gbit/s	176 Gbit/s/432 Gbit/s	144 Gbit/s/432 Gbit/s
Fixed Ports	12 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x GE SFP ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+	CloudEngine S5735-L12P4S-A: Supported CloudEngine S5735-L24P4S-A: Supported CloudEngine S5735-L24P4X-A: Supported CloudEngine S5735-L48P4X-A: Supported Other: Not supported

Get More Information

Do you have any question about the S5735-L24P4S-A?

we also have Alibaba shop: you can click it . https://shuaiqicn.en.alibaba.com/?spm=a2700.7756200.0.0.fea571d2uK6of4

CloudEngine Gigabit Network Managed Switch Huawei S5736-S24UM4XC
