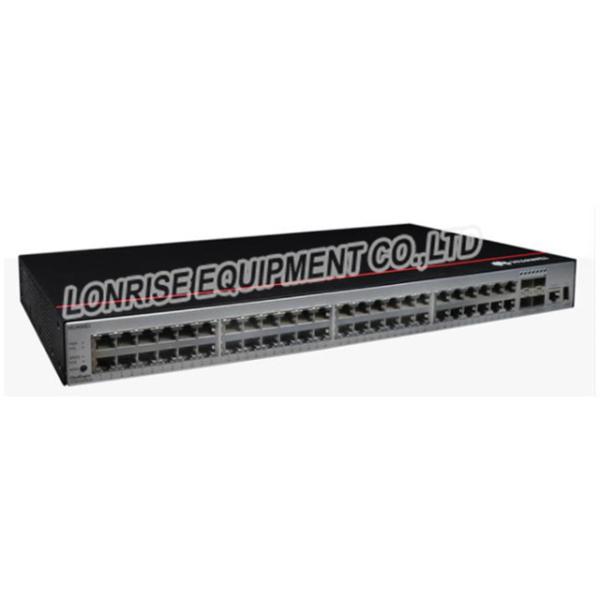

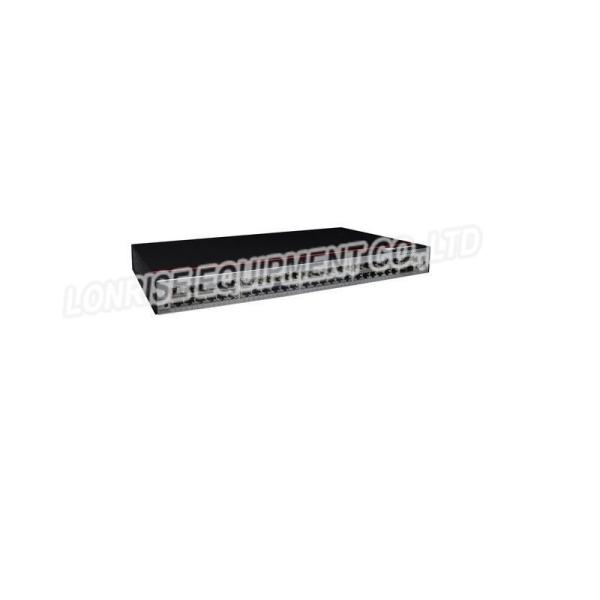

Huawei S1730S - S48P4S - A 48 Ethernet Network Switch Ports 4 Gigabit SFP PoE +
Huawei S1730S - S48P4S - A 48 Ethernet Network Switch Ports 4 Gigabit SFP PoE +
Huawei S1730S - S48P4S - A 48 Ethernet Network Switch Ports 4 Gigabit SFP PoE +
Huawei S1730S - S48P4S - A 48 Ethernet Network Switch Ports 4 Gigabit SFP PoE +
Huawei S1730S - S48P4S - A 48 Ethernet Network Switch Ports 4 Gigabit SFP PoE +
Huawei S1730S - S48P4S - A 48 Ethernet Network Switch Ports 4 Gigabit SFP PoE +
Huawei S1730S - S48P4S - A 48 Ethernet Network Switch Ports 4 Gigabit SFP PoE +
Huawei S1730S - S48P4S - A 48 Ethernet Network Switch Ports 4 Gigabit SFP PoE +
Specifications
Brand Name :
Huawei
Model Number :
S1730S-S48P4S-A1
Certification :
CE
Place of Origin :
China
Model :
CloudEngine S1730S-S48P4S-A
Forwarding Performance :
77.38 mpps
Switching Capacity :
216 Gbit/s
Fixed Ports :
48 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports
Power Supply :
Pluggable 1000W AC power module
Dimension (H × W × D) :
43.6mm × 442mm × 220mm
Storage Temperature :
-40°C to +70°C (-40°F to +158°F)
Port :
Shanghai
Description

Huawei S1730S - S48P4S - A 48 10 / 100 / 1000BASE - T Ethernet ports 4 Gigabit SFP PoE +

S1730S-S48P4S-A is a Huawei S1730S series switch, providing 48 10/100/1000BASE-T Ethernet ports, PoE+, 4 Gigabit SFP, and AC power supply. Huawei CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design that’s easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.

S1730S-S48P4S-A Specification
Forwarding Performance 77.38 mpps
Switching Capacity 216 Gbit/s
Fixed Ports 48 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports
Power Supply Pluggable 1000W AC power module
Dimension (H × W × D) 43.6mm × 442mm × 220mm
Chassis Height 1U
Rated Voltage Range

- 100V AC to 130V AC,200V AC to 240V AC, 50/60 Hz

- High-voltage DC input: 240V DC
Maximum Voltage Range

- 90V AC to 290V AC, 45 Hz to 65 Hz

- High-voltage DC input: 190V DC to 290V DC
Maximum Power Consumption

Without PoE: 75W

100% PoE loads: 911W (PoE: 874W)
Operating Temperature 5°C to +50°C (23°F to 122°F) at an altitude of 0-1800m (0-5906 ft.)
Storage Temperature -40°C to +70°C (-40°F to +158°F)

the comparison.

Parameters CloudEngine S1730S-S24T4S-A CloudEngine S1730S-S24P4S-A CloudEngine S1730S-S48T4S-A CloudEngine S1730S-S48P4S-A CloudEngine S1730S-S24T4X-A
Forwarding Performance 41.66 mpps 41.66 mpps 77.38 mpps 77.38 mpps 95.23 mpps
Switching Capacity 168 Gbit/s 168 Gbit/s 216 Gbit/s 216 Gbit/s 168Gbit/s
Fixed Ports 24 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports 24 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports 48 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports 48 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports 24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports

the recommended modules.

Product Description
eSFP-GE-SX-MM850 Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
SFP-GE-LX-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550 Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
S-SFP-GE-LH80-SM1550 Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC)
eSFP-GE-ZX100-SM1550 Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC)
SFP-GE-LX-SM1310-BIDI Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC)
SFP-GE-LX-SM1310-BIDI BiDi Transceiver, eSFP, Tx1310nm/Rx1490nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
SFP-GE-LX-SM1490-BIDI Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC)
SFP-GE-LX-SM1490-BIDI BiDi Transceiver, eSFP, Tx1490nm/Rx1310nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
CWDM-SFPGE-1471 CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC)
CWDM-SFPGE-1491 CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC)
CWDM-SFPGE-1511 CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1511nm, 80km, LC)
DWDM-SFPGE-1560-61 DWDM Optical Transceiver.eSFP.2.5G.Single-mode Module (1560.61nm.120km.LC)
SFP-1000BaseT 1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m

Huawei S1730S - S48P4S - A 48 Ethernet Network Switch Ports 4 Gigabit SFP PoE +

Huawei S1730S - S48P4S - A 48 Ethernet Network Switch Ports 4 Gigabit SFP PoE +
