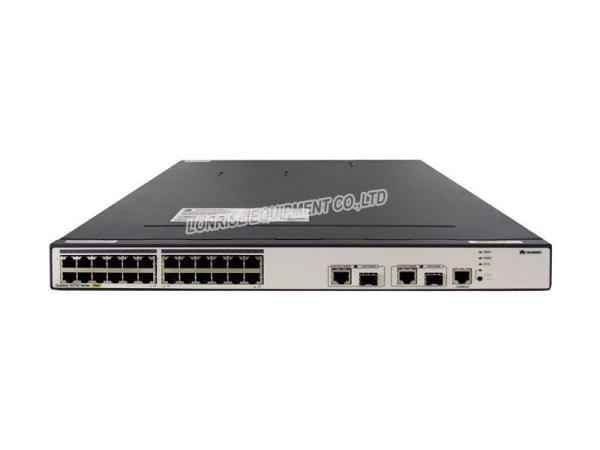

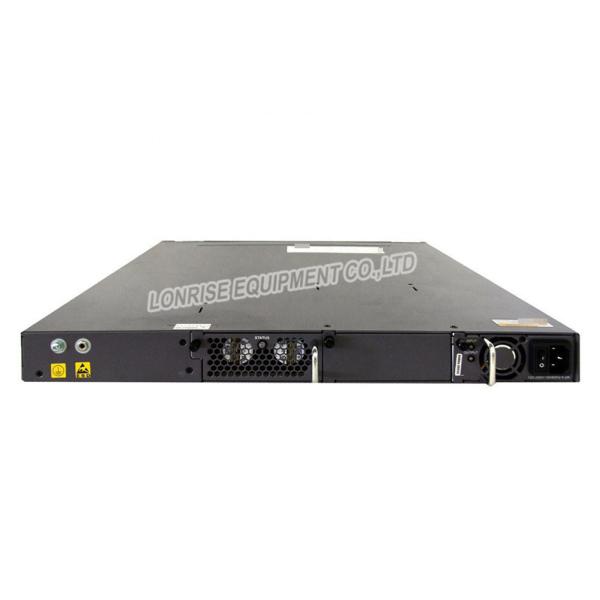

24 Ethernet 10 Ports Huawei Quidway S2700 Switch AC power supply
24 Ethernet 10 Ports Huawei Quidway S2700 Switch AC power supply
24 Ethernet 10 Ports Huawei Quidway S2700 Switch AC power supply
24 Ethernet 10 Ports Huawei Quidway S2700 Switch AC power supply
24 Ethernet 10 Ports Huawei Quidway S2700 Switch AC power supply
24 Ethernet 10 Ports Huawei Quidway S2700 Switch AC power supply
24 Ethernet 10 Ports Huawei Quidway S2700 Switch AC power supply
24 Ethernet 10 Ports Huawei Quidway S2700 Switch AC power supply
24 Ethernet 10 Ports Huawei Quidway S2700 Switch AC power supply
24 Ethernet 10 Ports Huawei Quidway S2700 Switch AC power supply
Specifications
Brand Name :
Huawei
Model Number :
S2700-26TP-PWR-EI
Certification :
CE
Place of Origin :
China
Name :
S2700-26TP-PWR-EI 02352336 Huawei Quidway S2700 Switch
Model :
S2700-26TP-PWR-EI
Downlink Ports :
24 Ethernet 10/100 ports
Uplink Ports :
2 dual-purpose 10/100/1,000 or SFP
PoE :
Supported
Forwarding Performance :
6.6 Mpps
Switching Capacity :
32 Gbit/s
Power :
AC power supply
Heat Dissipation :
Pluggable fan modules for forced air cooling
Dimensions :
(W x D x H) 44.2 cm x 42 cm x 4.36 cm
Weight :
≤ 8 kg (17.64 lb)
Description

S2700 - 26TP - PWR - EI 02352336 Huawei Quidway S2700 Switch

HUAWEI S2700-26TP-PWR-EI is the new generation layer 2 intelligence switch and it comes with 24 POE+ Fast Ethernet ports to support up to 30W per port..

S2700-26TP-PWR-EI Specification
Downlink ports 24 × 10/100Base-TX Ethernet ports
Uplink ports 2 dual-purpose 10/100/1000 or SFP
MAC address 8K MAC address entries
Manual deletion of dynamic MAC address entries
Aging time of MAC address configurable
Blackhole MAC address entries
MAC address learning control which based on ports
VLAN feature 4K VLANs, complying with IEEE 802.1Q
Port-based VLAN assignment
MAC address-based assignment
Port-based QinQ
QoS Port-based rate limiting and flow-based rate limiting
4 or 8 queues of different priorities on each port
Mapping between 802.1p priorities and queues
SP, WRR, and SP+WRR algorithms
N/A
IPv6 feature IPv6 protocol
Static IPv6 routes
Supports MLD v1/v2 snooping.
Multicast MVLAN
Controllable multicast
IGMP v1/v2/v3 snooping
Port-based rate limiting for multicast packets
Reliability STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP topology and RRPP multi-instance
Traffic sampling N/A
Security & access features 802.1x authentication and limit on the number of users on an interface
Storm suppression
IP Source Guard
Multiple authentication methods including AAA authentication, RADIUS authentication, and TACACS+ authentication
802.1x authentication, MAC address authentication, MAC bypass authentication
DHCP snooping
Port isolation and sticky MAC
Packet filtering based on MAC addresses
Suppression of multicast, broadcast, and unknown unicast packets
Limit on the number of learned MAC addresses
CPU defense
Surge protection Surge protection capability of service ports: 6 kV (The surge protection capability of service ports on PoE switches is 1 kV.)
Management Stack
Auto-Config
CLI-based configuration
Remote configuration using Telnet
SNMP V1/V2/V3
Remote network monitoring
SSHv2
Web-based device management
Operating environment Long-term operating temperature: –5°C to + 50°C
Relative humidity: 10% to 90% (non-condensing)
Power

AC:

Rated voltage range: 100 V to 240 V AC, 50/60 Hz

Maximum voltage: 90 to 264 V AC, 50/60 Hz

DC:

Rated voltage range: –48 V to –60 V DC

Maximum voltage range: –36 V to –72 V, DC

Note: PoE models do not use DC power supplies.
Dimensions (W x D x H) 442 × 420 × 43.6 mm
Weight S2700-26TP-PWR-EI < 4 kg (without power supply)
Power consumption S2700-26TP-PWR-EI < 808W (PoE: 740 W)

the comparison of Huawei S2700-26TP series switches.

Models S2700-26TP-SI-AC S2700-26TP-EI-AC S2700-26TP-EI-DC S2700-26TP-PWR-EI
Downlink Ports 24 Ethernet 10/100 ports 24 Ethernet 10/100 ports 24 Ethernet 10/100 ports 24 Ethernet 10/100 ports
Uplink Ports 2 dual-purpose 10/100/1,000 or SFP 2 dual-purpose 10/100/1,000 or SFP 2 dual-purpose 10/100/1,000 or SFP 2 dual-purpose 10/100/1,000 or SFP
Power Supply AC AC DC AC
PoE Support N/A N/A N/A PoE
