Specifications
Brand Name :
Huawei
Model Number :
CE6851-48S6Q-HI
Certification :
CE
Place of Origin :
China
Product name :
Huawei CE6851-48S6Q-HI Switch(48-Port 10G SFP+,6-Port 40GE QSFP+,2*FAN Box,Port-side Intake,Without Power Module)
Model :
CE6851-48S6Q-HI
Transmission Rate :
10/100/1000Mbps
Communication Mode :
Full-Duplex & Half-Dupl
Forwarding Rate :
1,080 Mpps
Weighrt :
8.7 kg
Ports :
≥ 48
Switch Capacity :
1.44 Tbit/s
Description

Huawei CE6851-48S6Q-HI Switch(48-Port 10G SFP+,6-Port 40GE QSFP+,2*FAN Box,Port-side Intake,Without Power Module)

CE6851-48S6Q-HI-B is Huawei CE6851-48S6Q-HI Switch(48-Port 10G SFP+,6-Port 40GE QSFP+,2*FAN Box,Port-side Intake,Without Power Module). Support for Fiber Channel over Ethernet (FCoE) allows a single network to carry storage, data, and computing services, reducing network construction and maintenance costs The industry.

CE6851-48S6Q-HI-B Specifications
10G Base-T Ports 0
SFP+ Ports 48
FC Ports 0
QSFP+ Ports 6
Switching Capacity 1.44 Tbit/s
Forwarding Rate 1,080 Mpps
Airflow Design Front-to-back or back-to-front
Device Virtualization iStack
Super Virtual Fabric (SVF)
Network Virtualization M-LAG
TRILL
VM Awareness Agile Controller
Network Convergence FCoE
DCBX, PFC, and ETS
Programmability OpenFlow
OPS
Puppet, and OVSDB plugins released on open source websites
Linux container for open source and customization programming
Traffic Analysis NetStream
sFlow
VLAN Adding access, trunk, and hybrid interfaces to VLANs
Default VLAN
QinQ
MUX VLAN
GVRP
ACL Ingress: 3,750 Egress: 1,000
MAC Address Table Maximum: 288k
Dynamic learning and aging of MAC addresses
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
MAC address limiting based on ports and VLANs
ARP (maximum) 128k
IPv4 FIB (maximum) 256k
IP Routing IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+
IPv6 FIB (maximum) 128k
IPv6 IPv6 Neighbor Discovery (ND)
Path MTU Discovery (PMTU)
TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6
Multicast FIB (maximum) 8k
Multicast IGMP, PIM-SM, PIM-DM, MSDP, and MBGP
IGMP snooping
IGMP proxy
Fast leave of multicast member interfaces
Multicast traffic suppression
Multicast VLAN
Reliability LACP
STP, RSTP, VBST, and MSTP
BPDU protection, root protection, and loop protection
Smart Link and multi-instance
DLDP
ERPS (G.8032)
VRRP, VRRP load balancing, and BFD for VRRP
BFD for BGP/IS-IS/OSPF/Static route
QoS Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Actions of ACL, CAR, re-marking, and scheduling
Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR
Congestion avoidance mechanisms, including WRED and tail drop
Traffic shaping
Configuration and Maintenance Console, Telnet, and SSH terminals
Network management protocols, such as SNMPv1/v2c/v3
File upload and download through FTP and TFTP
BootROM upgrade and remote upgrade
802.3az Energy Efficient Ethernet (EEE)
Hot patches
User operation logs
ZTP
Security and Management 802.1x authentication
Command line authority control based on user levels, preventing unauthorized users from using commands
DoS, ARP, and ICMP attack defenses
Port isolation, port security, and sticky MAC
Binding of the IP address, MAC address, interface number, and VLAN ID
Authentication methods, including AAA, RADIUS, and HWTACACS
Remote Network Monitoring (RMON)
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm
Weight (fully loaded) 8.7 kg (19.2 lb)
Environmental Parameters Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Relative humidity: 5% RH to 95% RH, non-condensing
Operating Voltage AC: 90V to 290V
DC: -38.4V to -72V
Max. Power Consumption 245W

Product Code CE6851-48S6Q-HI-B
Part Number 02350JAQ
10G Base-T Ports 0
SFP+ Ports 48
FC Ports 0
QSFP+ Ports 6
Switching Capacity 1.44 Tbit/s
Forwarding Rate 1,080 Mpps
Airflow Design Front-to-back or back-to-front
Maximum power consumption 245W
Typical power consumption 145 W
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm
Weight (fully loaded) 8.7 kg (19.2 lb)

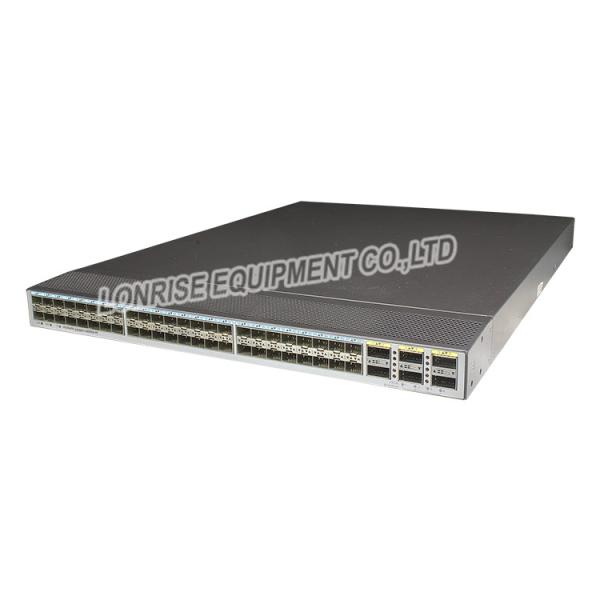

the rear (port side) panel of CE6851-48S6Q-HI-B.

Huawei CE6851 HI Switch 48 Port 10G SFP + Port side Intake Support for Fiber Channel over Ethernet (FCoE)

Note:

① Forty-eight 10GE SFP+ Ethernet optical ports
② Six 40GE QSFP+ Ethernet optical ports

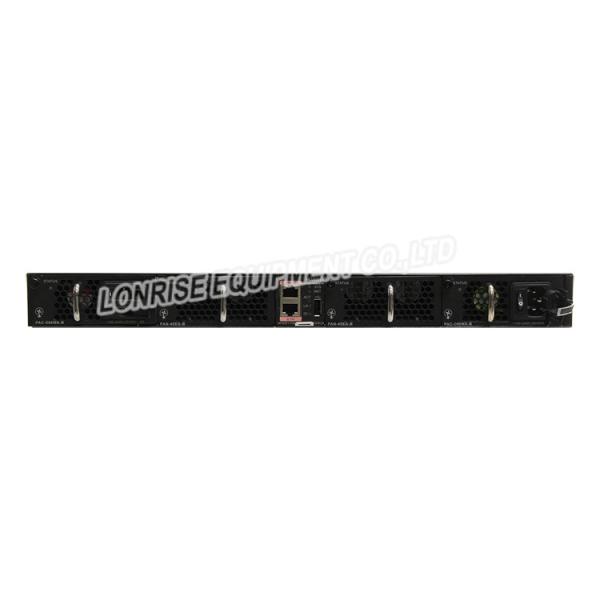

the front (power supply side) panel of CE6851-48S6Q-HI-B.

Huawei CE6851 HI Switch 48 Port 10G SFP + Port side Intake Support for Fiber Channel over Ethernet (FCoE)

Note:

① Power supply slot 1
② Fan slot 1
③ Console port
④ Bar code label
⑤ Fan slot 2
⑥ Power supply slot 2
⑦ USB port
⑧ ETH management port

the recommended elements for the CE6851-48S6Q-HI-B.

Model Description
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850 Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550 Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ Optical Transceiver
SFP-10G-USR 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000 Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
40GE QSFP+ optical transceiver
QSFP-40G-iSR4 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-LR4 40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC)
GE Copper Transceiver
SFP-1000BaseT Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
FAN-40EA
FAN-40EA-F Fan box(EA,Front to Back,FAN panel side intake)
FAN-40EA-B Fan box(EA,Back to Front,FAN panel side exhaust)

the comparison of CE6851-48S6Q-HI-B and CE6850-EI-B00.

Product Code CE6851-48S6Q-HI-B CE6850-EI-B00
10G Base-T Ports 0 0
SFP+ Ports 48 48
FC Ports 0 0
QSFP+ Ports 6 4
Switching Capacity 1.44 Tbit/s 1.28 Tbit/s
Forwarding Rate 1,080 Mpps 960 Mpps
Maximum power consumption 245W 272 W
Typical power consumption 145 W 180 W

Huawei CE6851 HI Switch 48 Port 10G SFP + Port side Intake Support for Fiber Channel over Ethernet (FCoE)Huawei CE6851 HI Switch 48 Port 10G SFP + Port side Intake Support for Fiber Channel over Ethernet (FCoE)
