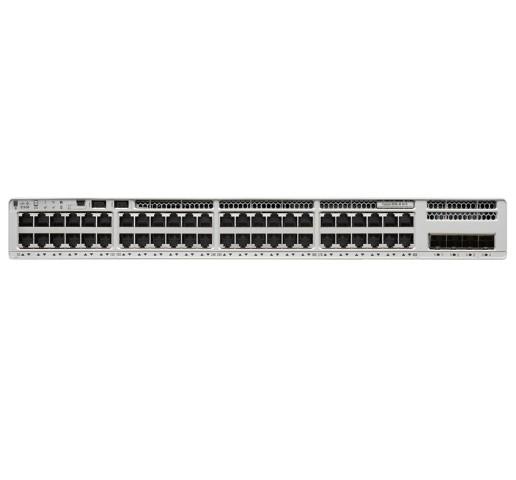

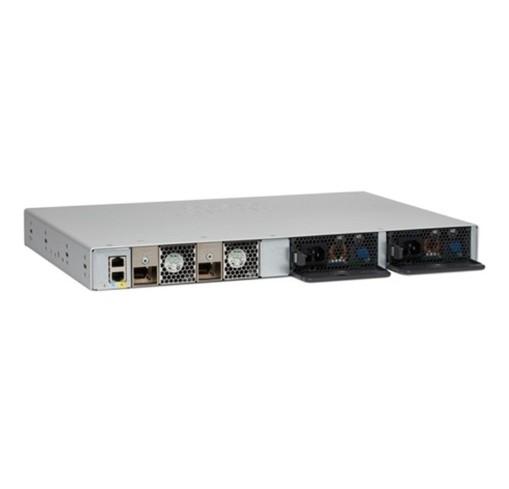

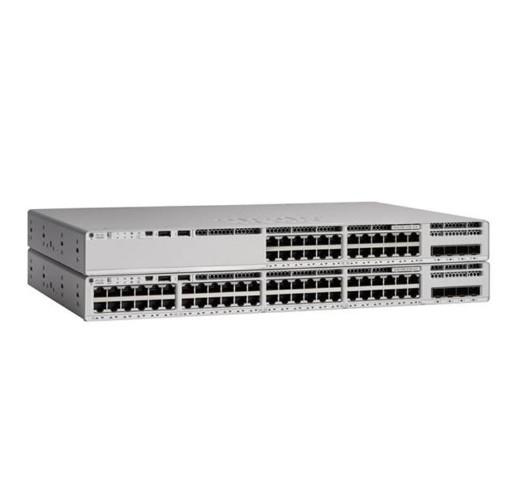

C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage
Specifications
Brand Name :
Cisco
Model Number :
C9200-48P-A
Certification :
CE
Place of Origin :
USA
Model :
C9200-48P-A
Stacking bandwidth :
160 Gbps
DRAM :
4 GB
Flash :
4 GB
Switching capacity :
176 Gbps
Forwarding rate :
261.9 Mpps
Default primary AC power supply :
PWR-C6-125WAC
Dimensions :
1.73 x 17.5 x 13.8 in
Condition :
Brand New Sealed
Warranty :
1 year
Payment :
T/T, Western Union, Paypal
Shipment :
DHL, Fedex, UPS
Description

C9200-48P-A Overview

C9200-48P-A is the Catalyst 9200 48-port PoE+ Data Switch, withNetwork Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.

C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage

C9200-48P-A Cisco Switch Catalyst 9200 48-Port PoE+ Data Switch Network Advantage

Quick Spec

Table 1 shows the quick spec.

Model C9200-48P-A
Downlinks total 10/100/1000 or PoE+ copper ports 48 ports Full PoE+
Uplink configuration Modular uplink options
Default primary AC power supply PWR-C6-125WAC
Fans FRU redundant
Software Network Advantage
Stacking bandwidth 160 Gbps
DRAM 4 GB
Flash 4 GB
Switching capacity 176 Gbps
Forwarding rate 261.9 Mpps
Chassis Dimensions

1.73 x 17.5 x 13.8 in

4.4 x 44.5 x 35.0 cm

Supported Products

Table 2 shows the recommended supported products.

Network modules
Product number Product description
C9200-NM-4G Catalyst 9200 4 x 1GE Network Module
C9200-NM-4X Catalyst 9200 4 x 10GE Network Module, spare
C9200-NM-BLANK Catalyst 9200 BLANK Network Module
StackWise-80 and StackWise-160 Kit and cables
Product number Product description
C9200-STACK-KIT= C9200 Stack Kit Spare
C9200L-STACK-KIT= C9200L Stack Kit Spare
STACK-T4-50CM 50CM Type 3 Stacking Cable
STACK-T4-1M 1M Type 3 Stacking Cable
STACK-T4-3M 3M Type 3 Stacking Cable
Power supplies
Product Number Product Description
PWR-C6-125WAC/2 125WAC power supply spare

Compare to Similar Items

Table 3 shows the comparison.

Model Description
C9200-48T-A Catalyst 9200 48-port Data Switch, Network Advantage
C9200-48T-E Catalyst 9200 48-port Data Switch, Network Essentials
C9200-48P-A Catalyst 9200 48-port PoE+ Switch, Network Advantage
C9200-48P-E Catalyst 9200 48-port PoE+ Switch, Network Essentials

C9200-48P-A Specification

C9200-48P-A Specification
Downlinks total 10/100/1000 or PoE+ copper ports 48 ports data
Uplink configuration Modular uplink options
Default primary AC power supply PWR-C6-125WAC
Fans FRU redundant
Software Network Advantage
Chassis Dimensions

1.73 x 17.5 x 13.8 in

4.4 x 44.5 x 35.0 cm
Virtual Networks 4
Stacking bandwidth 160 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries 4,000
IPv6 routing entries 2,000
Multicast routing scale 1,000
QoS scale entries 1,000
ACL scale entries 1,600
Packet buffer per SKU 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries 16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM 4 GB
Flash 4 GB
VLAN IDs 4096
Total Switched Virtual Interfaces (SVIs) 1000
Jumbo frames 9198 bytes
Wireless bandwidth per switch Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model
Switching capacity 176 Gbps
Forwarding rate 261.9 Mpps
Mean time between failures (hours) 375,570
