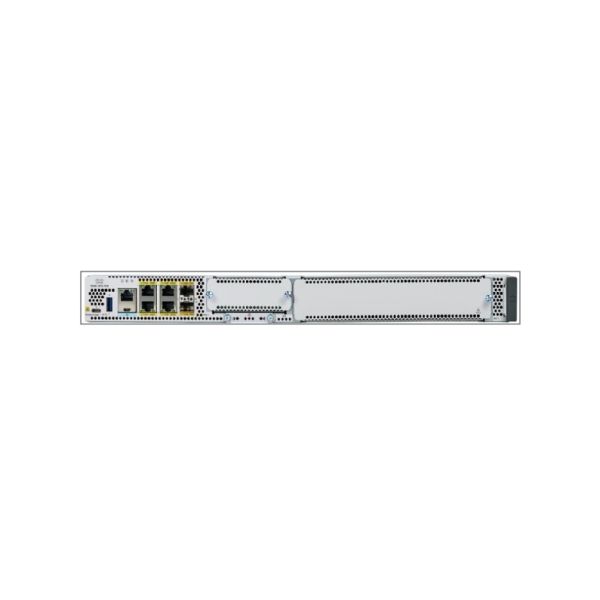

C8300-1N1S-6T - Cisco Catalyst 8300 Series Edge Platforms Series C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and6 x 1-Gigabit Ethernet ports)
C8300-1N1S-6T - Cisco Catalyst 8300 Series Edge Platforms Series C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and6 x 1-Gigabit Ethernet ports)
C8300-1N1S-6T - Cisco Catalyst 8300 Series Edge Platforms Series C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and6 x 1-Gigabit Ethernet ports)
C8300-1N1S-6T - Cisco Catalyst 8300 Series Edge Platforms Series C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and6 x 1-Gigabit Ethernet ports)
C8300-1N1S-6T - Cisco Catalyst 8300 Series Edge Platforms Series C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and6 x 1-Gigabit Ethernet ports)
C8300-1N1S-6T - Cisco Catalyst 8300 Series Edge Platforms Series C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and6 x 1-Gigabit Ethernet ports)
C8300-1N1S-6T - Cisco Catalyst 8300 Series Edge Platforms Series C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and6 x 1-Gigabit Ethernet ports)
C8300-1N1S-6T - Cisco Catalyst 8300 Series Edge Platforms Series C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and6 x 1-Gigabit Ethernet ports)
C8300-1N1S-6T - Cisco Catalyst 8300 Series Edge Platforms Series C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and6 x 1-Gigabit Ethernet ports)
C8300-1N1S-6T - Cisco Catalyst 8300 Series Edge Platforms Series C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and6 x 1-Gigabit Ethernet ports)
Specifications
Brand Name :
Cisco
Model Number :
C8300-1N1S-6T
Certification :
CE
Place of Origin :
China
Model :
C8300-1N1S-6T
Multicore processors :
Intel x86 CPU with 8 GB memory default
Embedded IPsec VPN hardware acceleration :
Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
Flash memory support :
8-GB flash
Slots :
1 SM 1 NIM 1 PIM
DRAM :
8 GB
Storage (M.2 SSD) default :
16 GB
SD-WAN IPsec Throughput :
4.3Gbps
Condition :
Brand new
Warranty :
1 year
Payment :
TT, Paypal, Alipay
Description

C8300-1N1S-6T Overview

The Catalyst 8300 Series Edge Platforms have a wide variety of interface options to choose from—ranging from lower and higher module density with backward compatibility to a variety of existing WAN, LAN, voice, and compute modules. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. Catalyst 8300 Series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.

The Catalyst 8300 Series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated SD-WAN services.

C8300-1N1S-6T - Cisco Catalyst 8300 Series Edge Platforms Series C8300 1RU w/ 10G WAN (1 SM slot and 1 NIM slot, and6 x 1-Gigabit Ethernet ports)


Compare to Similar Items


Model Differences
C8300-1N1S-4T Features 4 x 1-Gigabit Ethernet ports instead of 6
C8300-2N2S-6T Features two service module slots and two network interface module slots
C8200-1N1S-4T Features a different series (8200) with a smaller form factor

C8300-1N1S-6T Specification

C8300-1N1S-6T Specifications

Part number

C8300-1N1S-4T2X

C8300-1N1S-6T

Dimensions (H x W x D)

1.73 in. x 17.50 in. x 16.25 in.

Rack Units (RU)

1RU

Chassis weight with 2X AC power supplies and fan tray

20 lbs

Acoustics:

Sound pressure

(Typical/maximum)

49 dBa/71 dBa

Acoustics:

Sound power

(Typical/maximum)

60 dBa/82 dBa

Input voltage

AC: 85 to 264 VAC

DC: -40 to 72V; 48V nominal

Operating temperature

32 to 104°F

(0 to 40°C)

Storage temperature

-40 to 150°F

(-40 to 70°C)

Relative humidity operating and nonoperating noncondensing

Ambient (noncondensing) operating: 5 to 85%

Ambient (noncondensing) nonoperating and storage: 5 to 95%

Altitude

0 to 10,000 feet

(0 to 3050 meters)

Mean Time Between Failures (MTBF)

536,060 hours
