FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored
FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored
FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored
FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored
FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored
FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored
Specifications
Brand Name :
KNOFC or OEM
Model Number :
FTTH SC APC Patch Cord
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
60000pcs/Month

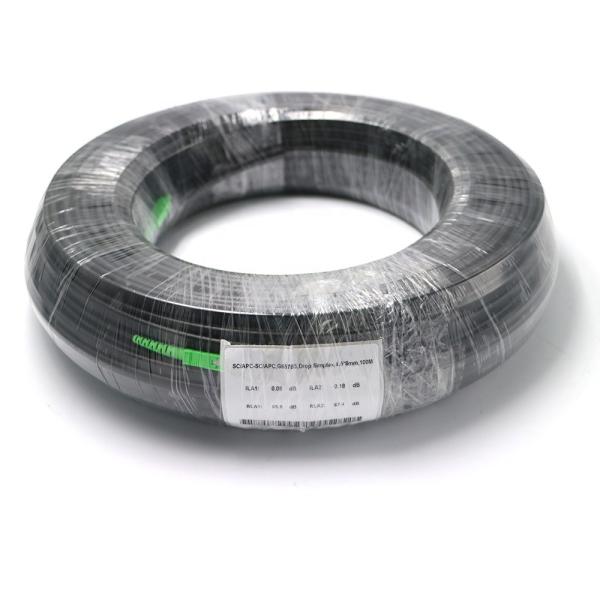

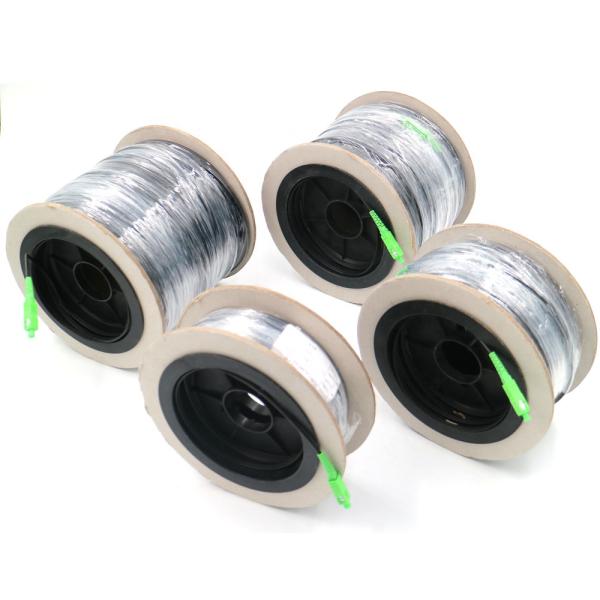

Packaging Details :
Individual box or customized
Connector type :
SC/APC
Cable type :
Flat Drop Cable or FTTH Drop Cable or Round Cable
Length :
3M 5M 10M or Customized
Application :
FTTH
Fiber type :
G657A2 or as your request
Fiber brand :
YOFC / Fiberhome / Corning / KNOFC
Jacket material :
HDPE / LSZH / TPU
Operating Temperature :
-40°C to+70°C
Description

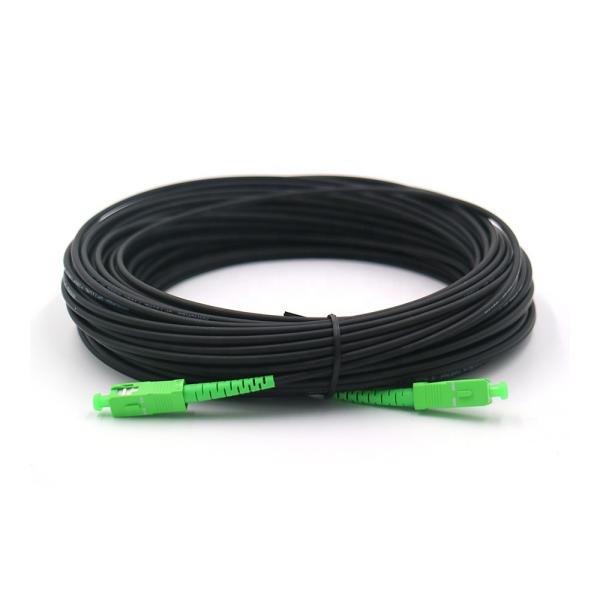

FTTH SC APC Armored Black 9/125 SM SX Optic Fiber Optic Jumper

Description:

FTTH Patch cord or pigtail, refers to the drop cable ends with a connector plug, used to achieve optical active connection, also be made into a single head pigtails, and Flexible Splice, Quick connect and other products combined application, Connector types are SC-PC(APC) and FC-PC(APC) , For FTTH project corridor boxes, drop cable distribution boxes, FTTH fiber boxes and other forms of installation.

Features:

  • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
  • Can be installs without special tooling.
  • Threaded style coupling.
  • Provides bend protection for installation and long term use.
  • Faster network roll out and customer installations.
  • 100% tested assemblies built in a controlled environment.
  • Lower cost deployment by utilizing plug and play solutions.
  • Custom built solutions with quick turnaround times.

Application:

  • Fiber optic communications in harsh outdoor environments.
  • Outdoor communication equipment connection.
  • FTTx ISP Project.

Specification:

Product Name SC APC Armored Patch Cord
Length 1M/5M/10M/15M/20M
Connection Style Simplex
Fiber Type G657A2
Typical Insertion Loss ≤ 0.20 dB
Maximum Insertion Loss ≤ 0.30 dB

Connector technical data:

Items Values
Connector Type SC/APC
Insertion Loss <0.3dB
Return Loss >60dB

Cable technical data:

Item Values
Cable Type Outdoor FTTH Drop Cable
Sheath Material LSZH
Messenger Wire 1.0±0.02mm
Steel Wire 0.5±0.02mm
Fiber Type G657A1 / G657A2
Cable Diameter (2.0±0.1)x(5.0±0.2)mm

Cable Paremeters:

Cable type Diameter(mm) Weight
(kg/km)		 Tensile strength
Long/short term
(N)		 Bending radius
Dynamic/static
(mm)		 Storage temperature
( ℃ )
GJYXCH-1~4 2.0*5.0mm 22 300/600 20D/10D -20~+70

FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored
