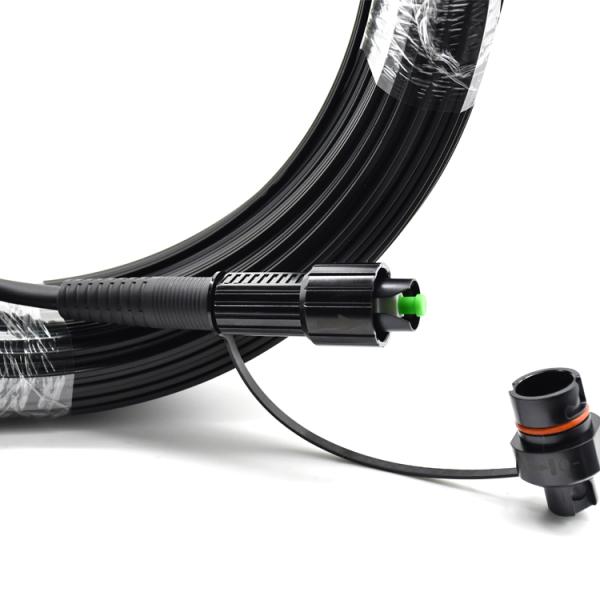

FTTH Pre Connectorized Drop Cable Pigtail Mini SC APC
FTTH Pre Connectorized Drop Cable Pigtail Mini SC APC
FTTH Pre Connectorized Drop Cable Pigtail Mini SC APC
FTTH Pre Connectorized Drop Cable Pigtail Mini SC APC
Specifications
Brand Name :
KNOFC or OEM
Model Number :
Waterproof Mini SC Drop Cable Assembly Pigtail
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
60000pcs/Month
Packaging Details :
Individual box or customized
Connector type :
Huawei Mini SC APC
Cable type :
round cable or drop cable
Length :
50M 100M 150M
Application :
HUAWEI CPRI
Fiber type :
G657A2 or as your request
Fiber brand :
YOFC / Fiberhome / Corning / KNOFC
Jacket material :
HDPE / LSZH / TPU
Operating Temperature :
-40°C to+70°C
Description

FTTH Outdoor Huawei Pre Connectorized Drop Cable Pigtail Mini SC

Description:

Huawei Compatible Mini SC pre-terminated Outdoor Flat drop cable pigtail provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.The Ruggedized Connector, an outside plant Mini SC/APC, is compatible with industry standard OSP terminals.

Features:

  • Provides superior weather resistance for FTTA and other outdoor applications.
  • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
  • Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
  • Can be installs without special tooling.
  • Threaded style coupling.
  • Provides bend protection for installation and long term use.
  • Faster network roll out and customer installations.
  • 100% tested assemblies built in a controlled environment.
  • Lower cost deployment by utilizing plug and play solutions.
  • Custom built solutions with quick turnaround times.

Application:

  • Fiber optic communications in harsh outdoor environments.
  • Outdoor communication equipment connection.
  • Waterproof Fiber Equipment.
  • Remote wireless Base Station.
  • FTTx ISP Project.

Connector technical data:

Items Values
Connector Type Huawei Mini SC
Insertion Loss <0.3dB
Return Loss >60dB

Cable technical data:

Item Values
Cable Type Outdoor Flat Drop Cable
Sheath Material LSZH
Messenger Wire 1.0±0.02mm
Steel Wire 0.5±0.02mm
Fiber Type G657A1 / G657A2
Cable Diameter (2.0±0.1)x(5.0±0.2)mm

Cable Paremeters:

Cable type Diameter(mm) Weight
(kg/km)		 Tensile strength
Long/short term
(N)		 Bending radius
Dynamic/static
(mm)		 Storage temperature
( ℃ )
GJYXCH-1~4 2.0*5.0mm 22 300/600 20D/10D -20~+70

FTTH Pre Connectorized Drop Cable Pigtail Mini SC APC
