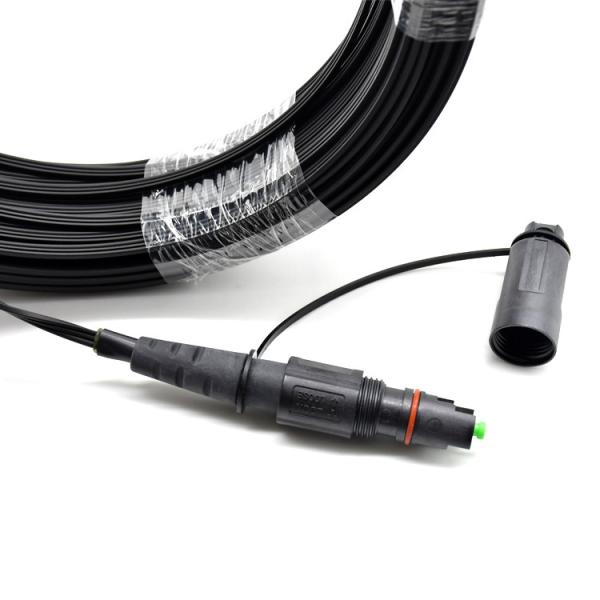

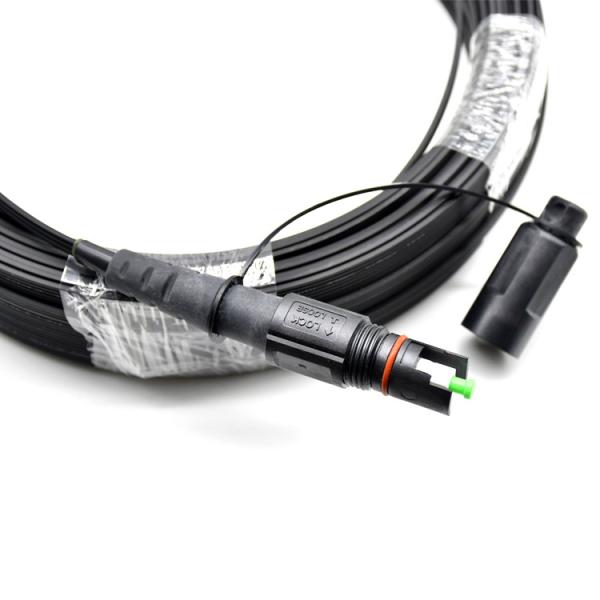

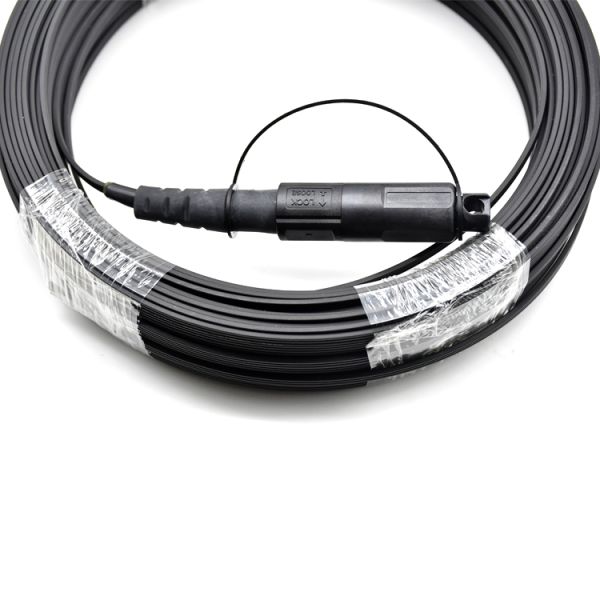

H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI
H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI
H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI
H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI
Specifications
Brand Name :
KNOFC or OEM
Model Number :
OptiTap Compatible H Connector SC Drop Cable Pigtail
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
60000pcs/Month
Packaging Details :
Individual box or customized
Connector type :
OptiTap Compatible H Connector SC
Cable type :
FTTH Drop Cable
Length :
50M 100M 150M 200M or Customized
Application :
OptiTap CPRI
Fiber type :
G657A2 or as your request
Fiber brand :
YOFC / Fiberhome / Corning / KNOFC
Jacket material :
LSZH
Operating Temperature :
-40°C to+70°C
Description

1 Fiber Fiber Optic H connector MINI IP SC APC OptiTap to SC/APC FTTH drop Cable Assembly

Description:

Corning Optitap/H connector fiber optic patch cable provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications.

Features:

  • Available in multiple fiber lengths to meet all your FTTX design drop deployment.
  • Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
  • Designed to reduce the cost and time of drop fiber deployment in the network.
  • Provides superior weather resistance for FTTA and other outdoor applications.
  • Can be installs without special tooling.
  • 100% tested assemblies built in a controlled environment.
  • Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber.
  • Flexibility and reliability provides fast and simple deployments within a network.
  • Provides bend protection for installation and long term use.
  • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.

Application:

  • Multi-purpose Outdoor.
  • For connection between distribution box and RRH.
  • Deployment in Remote.

Dimensional Diagrams:

H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI

Connector technical data:

Items Values
Connector Type OptiTap compatible H connector SC
Insertion Loss <0.3dB
Return Loss >60dB

Cable technical data:

Item Values
Cable Type Outdoor FTTH Drop Cable
Sheath Material LSZH
Messenger Wire 1.0±0.02mm
Steel Wire 0.5±0.02mm
Fiber Type G657A1 / G657A2
Cable Diameter (2.0±0.1)x(5.0±0.2)mm

Cable Paremeters:

Cable type Diameter(mm) Weight
(kg/km)		 Tensile strength
Long/short term
(N)		 Bending radius
Dynamic/static
(mm)		 Storage temperature
( ℃ )
GJYXCH-1~4 2.0*5.0mm 22 300/600 20D/10D -20~+70

H Connector SC APC FTTH Drop Cable Assembly OptiTap CPRI
