12core GYXTW Single Mode Armored Cable G652D For Aerial
12core GYXTW Single Mode Armored Cable G652D For Aerial
12core GYXTW Single Mode Armored Cable G652D For Aerial
12core GYXTW Single Mode Armored Cable G652D For Aerial
Specifications
Brand Name :
KNOFC
Model Number :
GYXTW 12 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Corning or as your request
Fiber count :
2-12 core
Strength member :
Steel wire
Outer sheath material :
HDPE
Application :
Aerial / Duct
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

GYXTW fiber optic cable armored cable 6 core single mode G652D

Description:

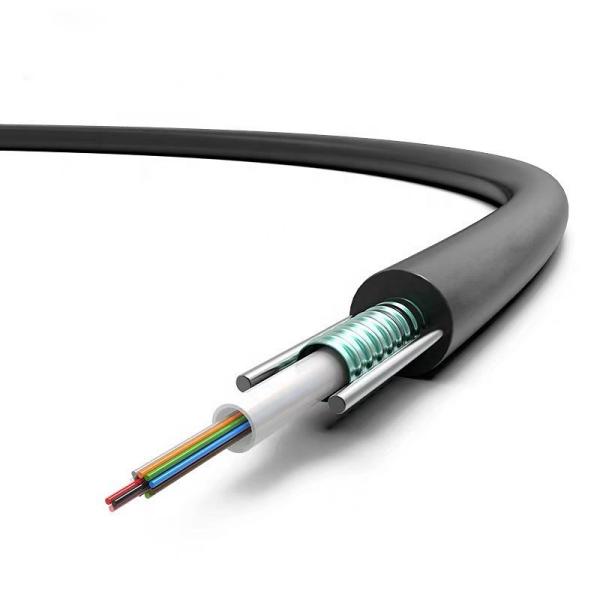

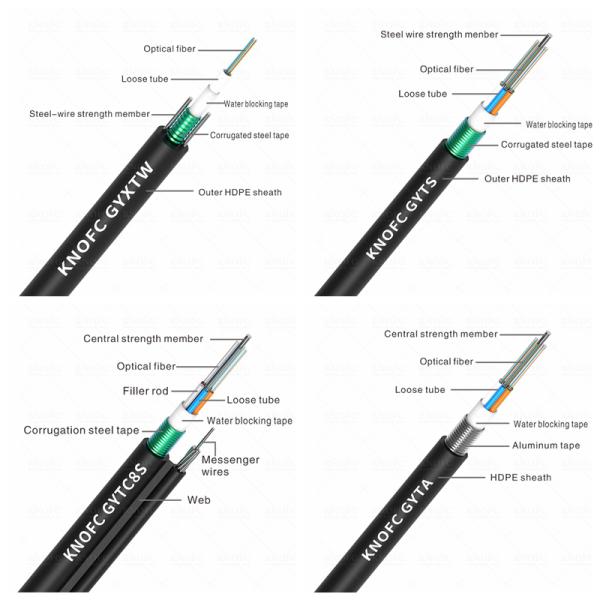

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics:

* Good mechanical and temperature performance.
* High strength loose tube that is hydrolysis resistant.
* Special tube filling compound ensure a critical protection of fiber.
* Crush resistance and flexibility.
* PSP enhancing moisture-proof.
* Two parallel steel wires ensure tensile strength.
* Small diameter, light weight and friendly installation.

Application:

1. Adopted to outdoor distribution.

2. Suitable for aerial, pipeline laying method.

3. Long distance and local area network communication.

Optical Fiber Characteristic:

G.652.D G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYXTW-2~24 8 70 600/1500 300/1000 20D/10D -40~+70
