FRP 24core G652D Single Mode Optical Fiber Cable Aerial ASU80
FRP 24core G652D Single Mode Optical Fiber Cable Aerial ASU80
FRP 24core G652D Single Mode Optical Fiber Cable Aerial ASU80
FRP 24core G652D Single Mode Optical Fiber Cable Aerial ASU80
Specifications
Brand Name :
KNOFC
Model Number :
ASU80 12 FO
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Fiberhome / Corning / KNOFC
Fiber count :
2-24core
Strength member :
2*FRP
Protective layer :
Water blocking tape
Outer sheath material :
HDPE
Application :
Aerial / Duct
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

Aerial Use ASU80 Cable G652d Fibra Optica De 12 Hilos

Description:

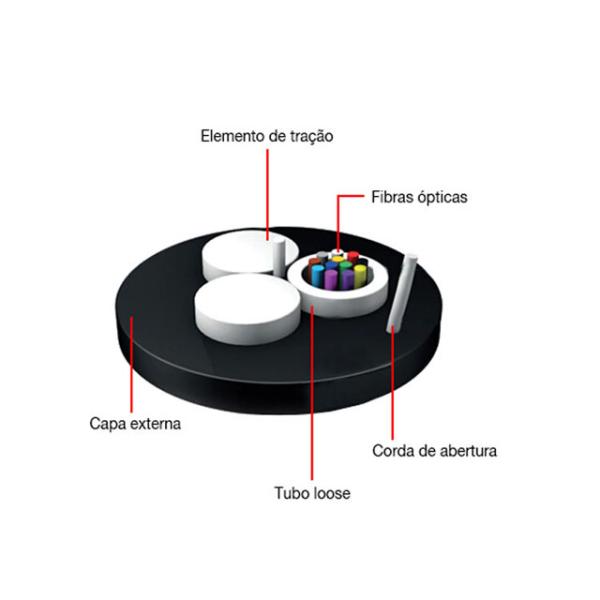

The optical fiber is put in a loose tube.The fiber can be 1-24 cores in the tube. Tube filling compound will be used for as water blocking elements. FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket. This cable has the fetures of small size and light weight. It help to save the shipping cost. Applicable for short span aerial and duct installation.

Characteristics:

· Special tube filling compound ensure a critical protection of fiber.
· Crush resistance and flexibility.
· PE/LSZH sheath protects cable from ultraviolet radiation.
· Good mechanical and temperature performance.
· High strength loose tube that is hydrolysis resistant.
· Light weight and small size convenient to laying.

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.

Optical Fiber Characteristic:

G.652.D G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
ASU80-2~24 8 70 600/1500 300/1000 20D/10D -20~+70
