ASU80 GYFXTY FRP HDPE Optic Fiber Cable 12FO Outdoor Fiber Optic Cable
ASU80 GYFXTY FRP HDPE Optic Fiber Cable 12FO Outdoor Fiber Optic Cable
ASU80 GYFXTY FRP HDPE Optic Fiber Cable 12FO Outdoor Fiber Optic Cable
ASU80 GYFXTY FRP HDPE Optic Fiber Cable 12FO Outdoor Fiber Optic Cable
Specifications
Brand Name :
KNOFC
Model Number :
ASU80 12 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Fiberhome / Corning / KNOFC
Fiber count :
2-24 core
Strength member :
2*FRP
Protective layer :
Water blocking tape
Outer sheath material :
HDPE
Application :
Aerial / Duct
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

ASU80 GYFXTY Fiber Optic Cable CFOA-SM-ASU-80-12FO Optic Fiber Cable

Description:

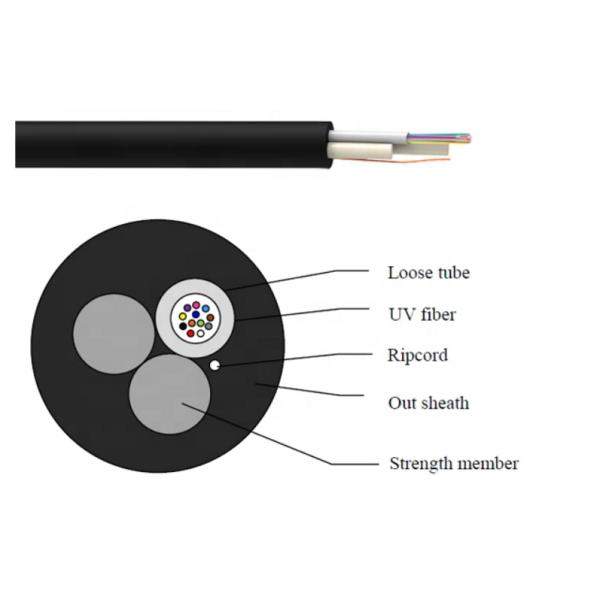

The optical fiber is put in a loose tube.The fiber can be 1-24 cores in the tube. Tube filling compound will be used for as water blocking elements. FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket. This cable has the fetures of small size and light weight. It help to save the shipping cost. Applicable for short span aerial and duct installation.

Characteristics:

  • Small Size and Ligth Weight.
  • Two FRP as strength member to provide good tensile performance.
  • Gel Filled or gel free , good waterproof performance.
  • Low price ,high fiber capacity.
  • Applicable for short span aerial and duct installation.

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.

Optical Fiber Characteristic:

G.652.D G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
ASU80-2~24 8 70 600/1500 300/1000 20D/10D -20~+70
