Specifications
Brand Name :
KNOFC
Model Number :
ADSS 24 core
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500000M/Week
Packaging Details :
Wooden Drum
Product name :
ADSS Fiber Cable 24 core
Fiber type :
Single mode / Multimode
Fiber count :
2-288cores
Jacket material :
HDPE or AT
Supporting Strength :
Aramid yarn/Kevlar yarn
Central Strength Member :
FRP
Span :
50-1000M
Application :
Self-Support Aerial
Description

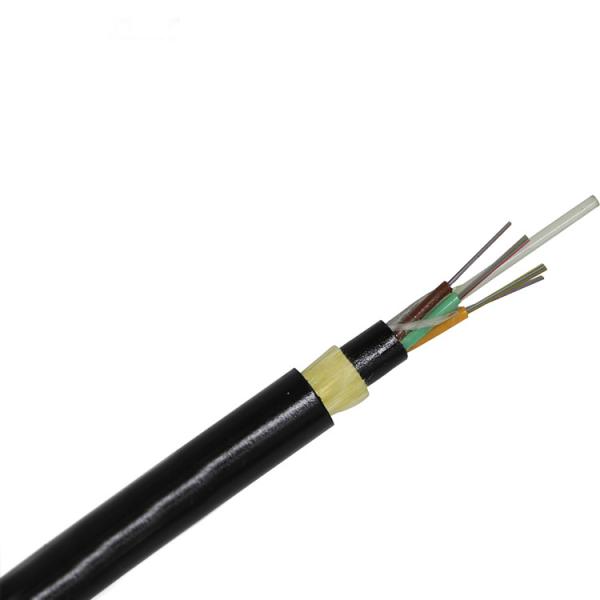

Adss 24 Core Fiber Optic Cable Single Jacket Hdpe 100 Span Adss Cable

Description:

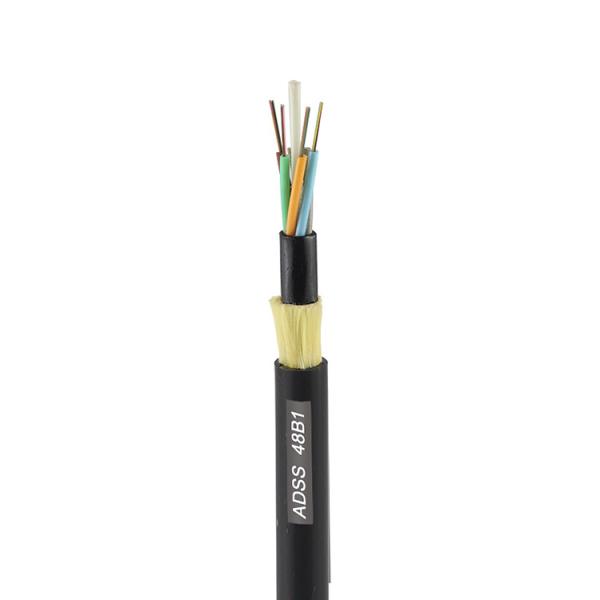

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water- blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (HDPE) or AT sheath.

Characteristics:

1. Can be installed without shutting off the power.

2. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.

3. Large span lengths and the largest span is over 1000m.

4. Good performance of tensile strength and temperature.

Application:

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

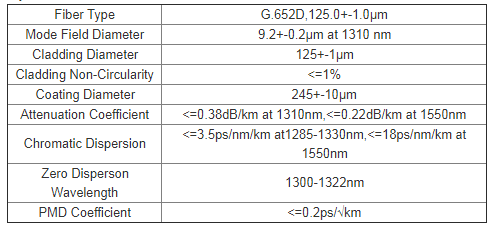

Optical Fiber Characteristic:

Single Jacket HDPE 24 Core ADSS Optical Cable FRP 100 Span

Cable Mechanical Characteristic:

Cable type Diameter(mm) Weight
(kg/km)
Tensile strength
Long/short term
(N)
Bending radius
Dynamic/static
(mm)
Storage temperature
( ℃ )
ADSS-2~60 10.0 110 1000/3000 20D/10D -20~+70
ADSS-62~72 12.0 120 1000/3000 20D/10D -20~+70
ADSS-74~96 14.0 130 1000/3000 20D/10D -20~+70
ADSS-98~144 16.0 185 1000/3000 20D/10D -20~+70
ADSS-146~288 20.0 298 1000/3000 20D/10D -20~+70

Single Jacket HDPE 24 Core ADSS Optical Cable FRP 100 Span
