Specifications
Brand Name :
KNOFC or OEM
Model Number :
Fiber Optic Dome Joint Closure 144 C
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/week
Packaging Details :
Box
Size :
21*21*4.5 cm
Inlet & outlet :
3+1 oval ports
Installation way :
Pole / Wall mount
Sealing way :
heat shrink sealing
Type :
horizontal
Material :
100% PC
Description

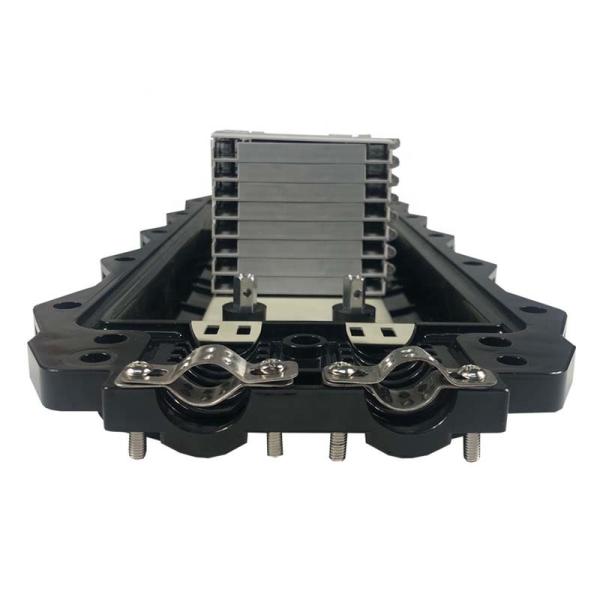

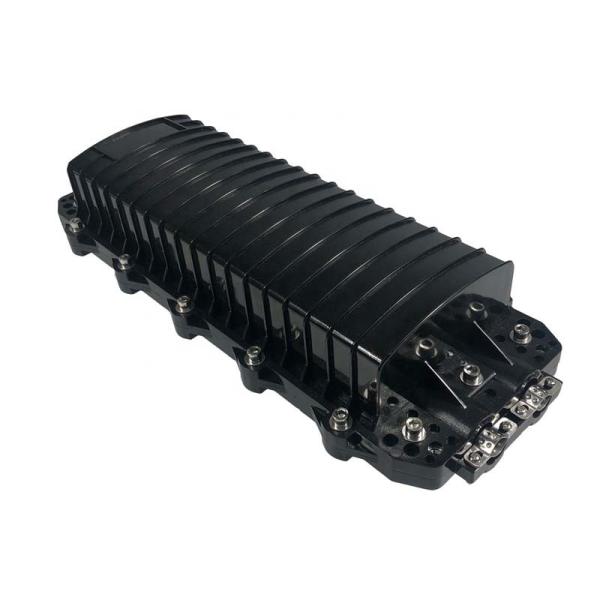

Underground Inline Fiber Optic Cable Splice Joint Closure Box 144 Core

Description:

These fiber optic splice closure can be used in underground, aerial, and wall-mounting applications. The open typed box is made from the high-quality pc and with the mechanical sealing structure filled with the sealing material. Besides, the external component and fastening piece are all made from the high-quality stainless steel. It can be opened after sealing and can be reused after renewing the sealing material.

Features:

  • Slide-in-lock design, over 90 opening angle tray
  • Elastic integrated seal ensure tightening fit
  • Housing provide fire resistant, waterproof, and quakeproof for splices while handing
  • Operating Temperature: -40 ~ +65 °C

Application:

  • Sutable for bunchy fibers.
  • Aerial ,wall-mounting.
  • FTTH optical fiber distribution.

Specification:

Product Name Fiber optic splice closure
Color black
Cores bunchy 60cores,ribbon 96-144cores
Protection class IP68
Seals Mechanical seal
Material PC
Cable out of the tube configuration Up to four out of the tube fiber optic cable
Ports diameter(mm) 16~22mm
Fiber radius of curvature(mm) 30
Dielectric strength(kv) 1.5
Ambient temperature(°C) -40~+60
Atmospheric pressure(Kpa) 70~1106
Tensile strength(N) >1000
Anti-stress >2000N/ 10cm2 Stress,Time 1min
Insulation Resistance >2X10MΩ/500V(DC)
Compressive strength 15KV(DC)/1min. No breakdown.No flashover
Housing dimensions(mm) 425*163.5*87mm(L*W*H)
Splice Tray Max 3 pcs, 24 cores each
Scope Pole, buried, manholes, wall
Packing 0.075m³/8pcs
Total weight 1.46kg/1pcs

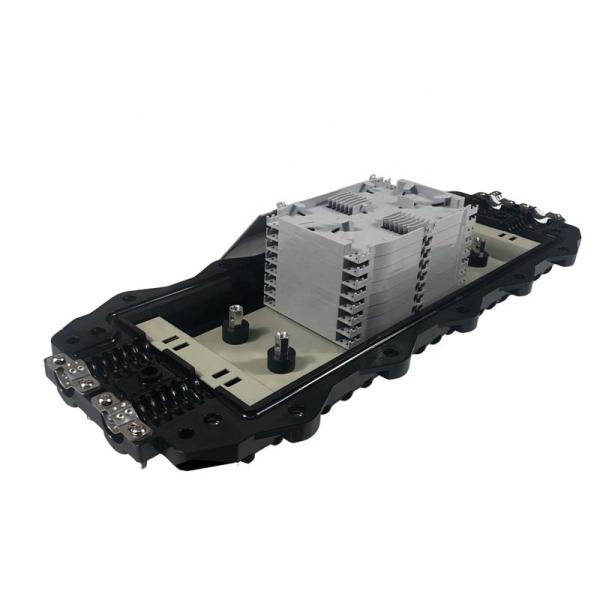

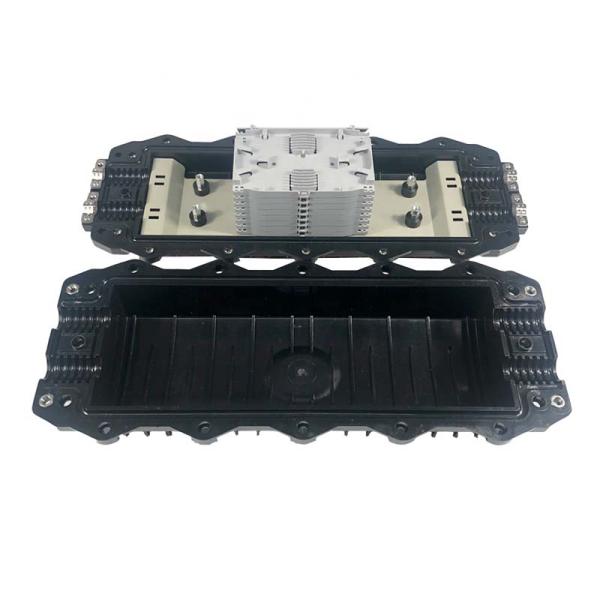

144 Core Underground Inline Cable Fiber Optic Splice Closure
