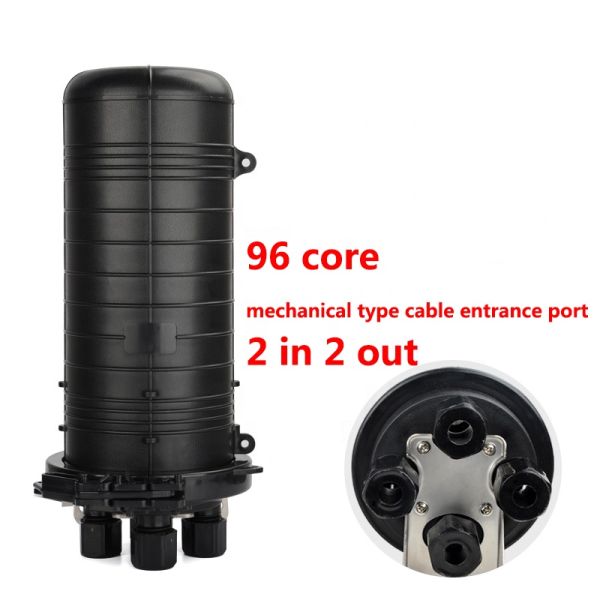

PC 96 Core Fiber Optic Dome Splice Closure
PC 96 Core Fiber Optic Dome Splice Closure
PC 96 Core Fiber Optic Dome Splice Closure
PC 96 Core Fiber Optic Dome Splice Closure
Specifications
Brand Name :
KNOFC or OEM
Model Number :
Fiber Optic Dome Joint Closure 48C
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/week
Packaging Details :
Box
Size :
140*115*295 mm
Tray :
2 Input Port, 2 Output Ports
Installation way :
aerial / duct / buried mount
Sealing way :
heat shrink sealing
Type :
Dome
Material :
100% PC
Description

Fiber Optic Dome Splice Closure Optical Joint Box With 48 72 96 Core

Description:

96 cores vertical dome type fiber optic splice junction enclosure has 2 inlet and 2 outlet (with 4 stand-alone ports).The outer shell is made of PP&ABS alloy material it’s strong and light, it can efficaciously prevent the lighting strike and erosion and aging and fire resist. The tray is pull down, so it’s easy installation, don’t need dismantle other tray, the material of the sealing is silica gel, it can repeatable operation.

Features:

1. Vertical dome type fiber optic splice junction enclosure, with metal hoop;
2. ABS&PP alloy material used ensures the body strong and light;
3. 4pcs (4x23mm) inlet or outlet ports, 1~4 trays for bunch fiber;
4. IP65 Water-proof design for outdoor uses;
5. The application of temperature: -40℃~65;
6. Aging resistance: with good stability of heat, thermal radiation, air, ozone and so on;
7. Corrosion resistance: strong resistance against acid, salt, oxidants and so on;
8. Sealing Technology: The reopen components, or reusable self-adhesive rubber strips to ensure a good air tightness and water resistance;
9. Close device: no need special tools for easy installation and re open;
10. Grouping function: 2 inlet 2 outlet can meet most requirements;
Splice tray: using cascading structure, no need to take other splice tray when do operation;

Application: Aerial, underground, wall-mounted, pole-mounted, duct-mounted.

Specification:

Item Description
Size H*D (mm) 400*140mm
Weight (kg) 2.38kg
Material ABS&PP alloy material
Cable ports 2 outlet and 2 inlet
Max. diameter of cable 23mm
Max. capacity 12-96 core
Single tray capacity 12 core or 24 core (1 slot can also fix 2 core splicing sleeve, so the tray can be also act as 24 core)
Splicing tray qty 1~4
Single tray size (mm) 230*92*10mm
