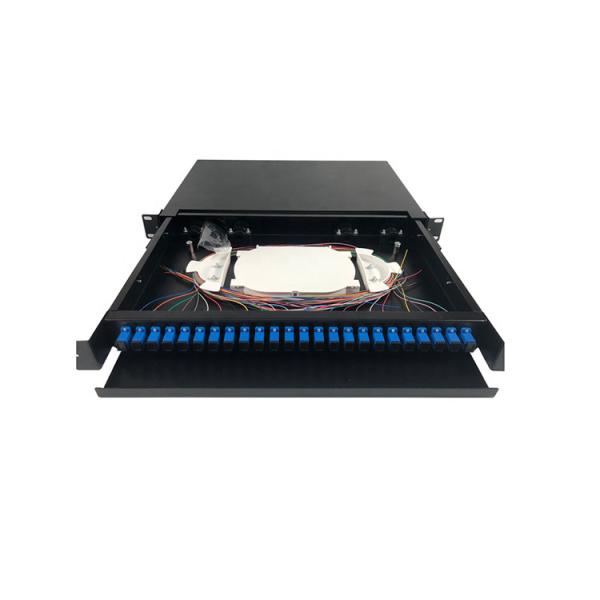

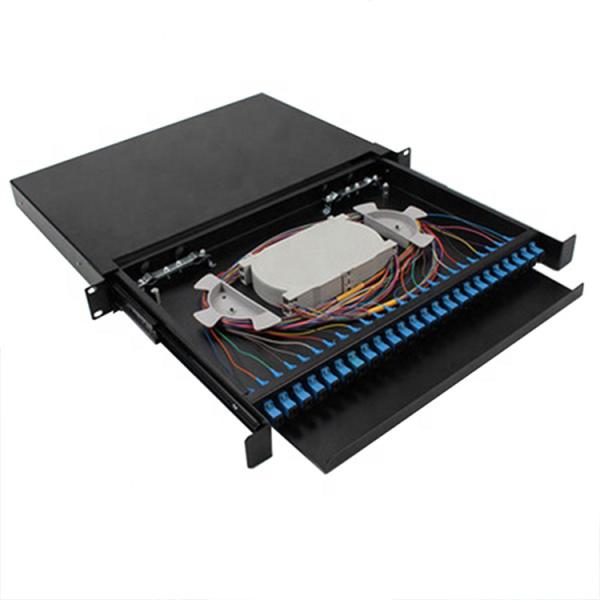

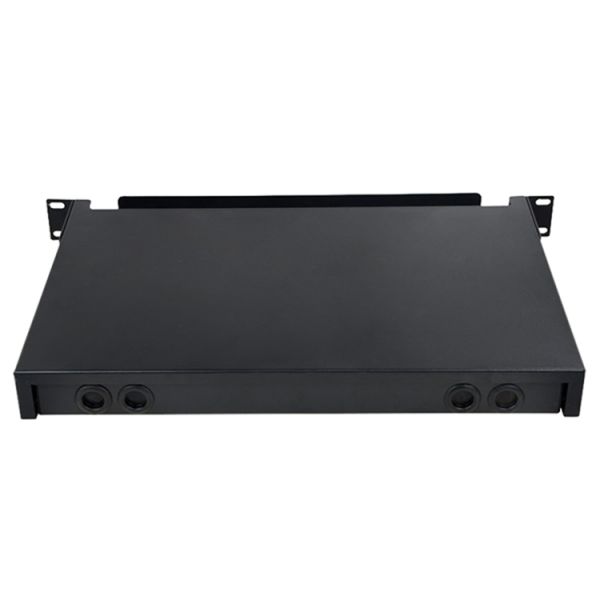

SC Fibre Patch Panel Rack Mount 1U Fiber Optic Terminal Box
SC Fibre Patch Panel Rack Mount 1U Fiber Optic Terminal Box
SC Fibre Patch Panel Rack Mount 1U Fiber Optic Terminal Box
SC Fibre Patch Panel Rack Mount 1U Fiber Optic Terminal Box
Specifications
Brand Name :
KNOFC or OEM
Model Number :
Fiber Optic Patch Panel 24 Ports 1U
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs/month
Packaging Details :
carton
Material :
Cold Roll Steel Sheet
Color :
Black
Connector :
SC LC FC ST
Application :
FTTX Network
Port :
12/24/48/96/144
External size :
1U,2U,3U,4U
Description

1U Fiber Optic Rack Mount Type Fiber Optic Patch Panel Terminal Box

Description:

The box is made of high quality cold rolled steel, and the surface is treated with Powder painting, painted well, is attractive and durable.It is used for the termination of optic cable, 19” standard, rack mounted, for FC, SC, LC adaptors, convenience for use.This plc splitter box meet the National Standard of YD/T925-1997.1-2 cable-in ports,1~32 cores fiber out ports. Protective caps available, increase the flexibility of using.

Features:

1. The body make use of cold rolling steel,and the surface use the technique of dim plastic.strong adhesive force,artistic and durable;
2. Standard size, light weight and reasonable structure;
3. Splice tray inside changeable;
4. Can be used in 19'', 23'' standard distribution frame;
5. Suitable for ribbon and single fiber;
6. SC/ST/FC/LC ports is available;
6. Front mark on the plate is easy for identification and operation;
7. 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters;
8. Easy for management and operation .

Technique Performance:

1. External size 480x250x1U, 2U,
2. Fiber capacity from 12 cores to 48 cores
3. Insertion loss: <0.3dB
4. Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
5. Winding radius ≥40mm
6. Working temperature -25°C~+45°C
7. Atmosphere pressure 70~106Kpa
8. Insulated Resistance 2×10MΩ/500V(DC)W
9. Voltage- resistance:Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.

Application:

1. Widely used in FTTH access network
2. Telecommunication networks
3. CATV networks, LAN Network
4. Data communications networks
5. Local area networks
6. Active device termination

SC Fibre Patch Panel Rack Mount 1U Fiber Optic Terminal Box

SC Fibre Patch Panel Rack Mount 1U Fiber Optic Terminal Box
