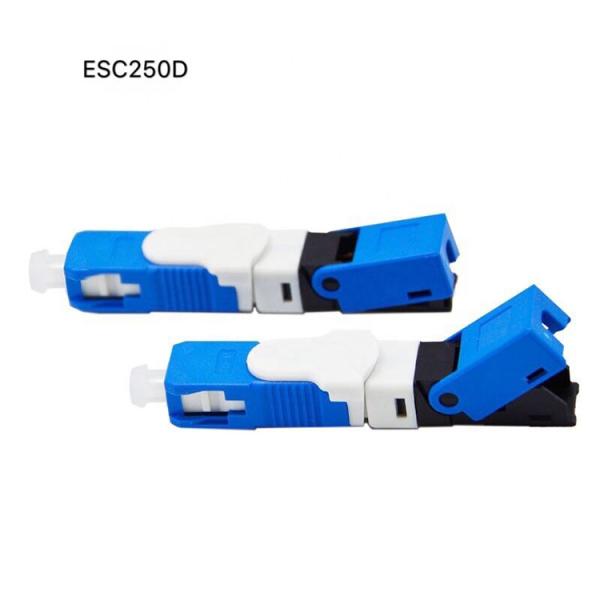

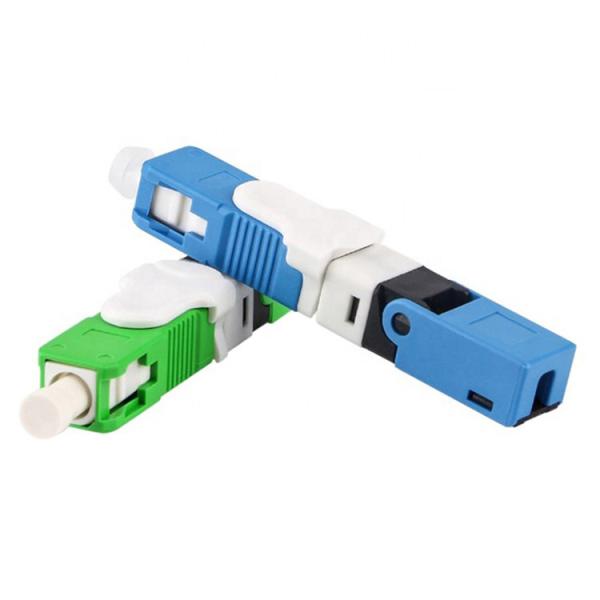

ESC250D SC UPC Fast Connector FTTH Fiber Optic Quick Connector
ESC250D SC UPC Fast Connector FTTH Fiber Optic Quick Connector
ESC250D SC UPC Fast Connector FTTH Fiber Optic Quick Connector
ESC250D SC UPC Fast Connector FTTH Fiber Optic Quick Connector
Specifications
Brand Name :
KNOFC or OEM
Model Number :
ESC250D Fast Connector
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs/week
Packaging Details :
Plastic box
Fiber Type :
Singlemode
Fiber Cable type :
3x2.0mm ftth drop cable
Insertion loss :
≤ 0.25dB
Return loss :
≥50dB
Application :
FTTH,LAN,PON&Optical CATV
Operating Temperature :
-30°C to+60°C
Description

ESC250D SC UPC Fast Connector Fiber Quick Connector

Description:

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Features:

1.Reliable and superior optical performance.
2.Using corning fiber.
3.Imported Brand matching gel(FIS).
4.Print manufacturer name on fast connector body.
5.Easy for assembling with mechanical splice and no polishing.
6.Lock and open the structure to make sure optical fiber, flexible, easy to use.
7.Operating Wavelength: 1310nm, 1490nm, 1510nm.
8.High temperature cycle test 24hours( -40-85℃) is stable working in poor condition.
9.Analysis 3D ferrule (3D geometry test)

Parameter:

Item Parameter
Cable Scope 3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
Size 51*9*7.55mm
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Return Loss ≤ -50dB for UPC, ≤ 55dB for APC
Success Rate >98%
Reusable Times >5 times
Tighten Strength of Naked Fiber >5 N
Tensile Strength >30 N
Temperature -40 ~ +85 C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test

IL ≤ 0.3dB

ESC250D SC UPC Fast Connector FTTH Fiber Optic Quick Connector
