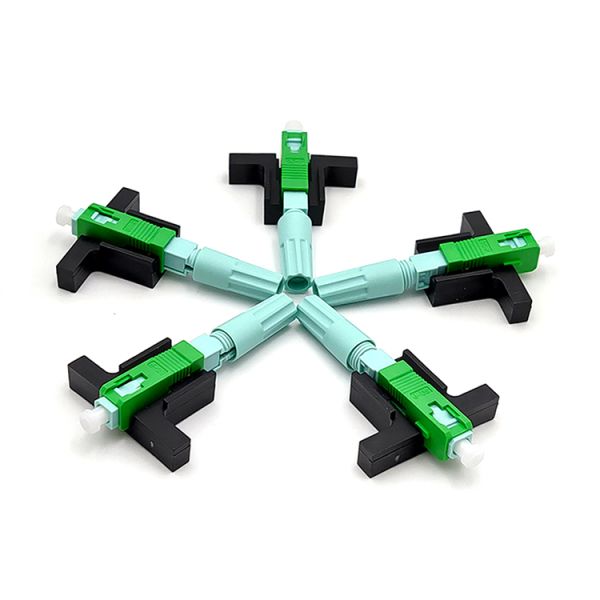

50mm FTTH Sc Apc SM Fiber Optic Fast Connector
50mm FTTH Sc Apc SM Fiber Optic Fast Connector
50mm FTTH Sc Apc SM Fiber Optic Fast Connector
50mm FTTH Sc Apc SM Fiber Optic Fast Connector
Specifications
Brand Name :
KNOFC or OEM
Model Number :
Fast Connector SC/APC
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs/week
Packaging Details :
Plastic box
Fiber Type :
Singlemode
Fiber Cable type :
3x2.0mm ftth drop cable
Insertion loss :
≤ 0.25dB
Return loss :
≥50dB
Application :
FTTH,LAN,PON&Optical CATV
Operating Temperature :
-30°C to+60°C
Description

Ftth Connector Sc Apc Brother Tx Core Fibra Optica Fast SM

Description:

The fast connector designed for FTTH is a new generation of fiber connector used in assembly, fiber connector is a revolutional field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.We provide field installable high reliability fast connectors, our using our top quality ceramic ferrules with reliable and supperior optical performance,their cable tensiletes complied with telcordia GR-326-CORE.Using corning fiber and high temperature cycle test 24hours( -40-85℃) quality is stable working in poor condition.

Features:

1. Reliable and superior optical performance.
2. Using corning fiber.
3. Imported Brand matching gel(FIS).
4. Print manufacturer name on fast connector body.
5. Easy for assembling with mechanical splice and no polishing.
6. Lock and open the structure to make sure optical fiber, flexible, easy to use.
7. Operating Wavelength: 1310nm, 1490nm, 1510nm.
8. High temperature cycle test 24hours( -40-85℃) is stable working in poor condition.
9. Analysis 3D ferrule (3D geometry test)

Specification:

Category Specification
Applicable Dia2.0 x 3.0mm Indoor Drop Cable
Fiber mode 9/125μm Singlemode
Polish Type APC / UPC
Dimension 50mm
Housing Green / Blue PC Plastic
Ferrule Material Ceramic(Zirconia)
Operation time About 50S
Insertion Loss ≤ 0.50dB
Insertion Loss Typical value ≤ 0.30dB
Return Loss ≥ 45.0dB
Fastening strength of naked fiber ≥ 5N
Tensile strength ≥ 50N
Reusable ≥ 10 times
Operating Temperature -40~+75℃
On-line tensile strength (10N) ΔIL≤ 0.3dB
Mechanical durability (500 times) ΔIL≤ 0.3dB
Drop-off test
(drop-off height4m,once per direction,totally 3 times)		 ΔIL≤ 0.3dB
Conformance TIA/EIA 604-3

50mm FTTH Sc Apc SM Fiber Optic Fast Connector
