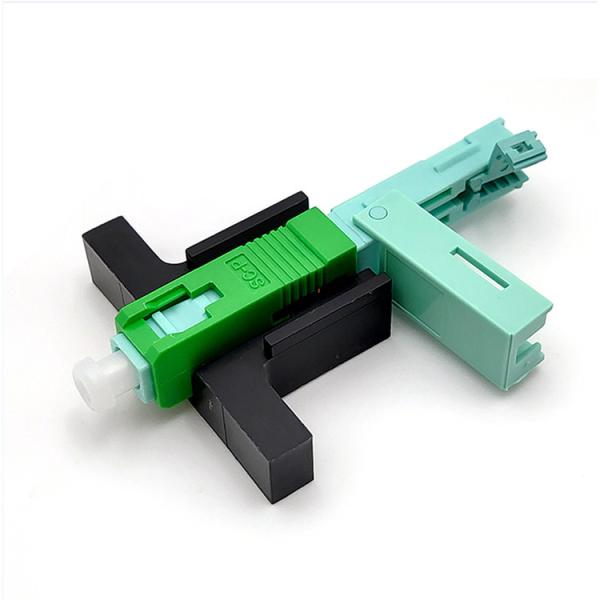

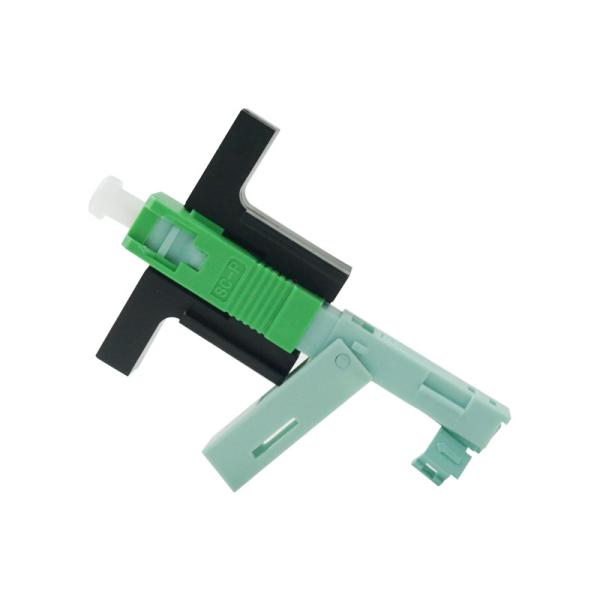

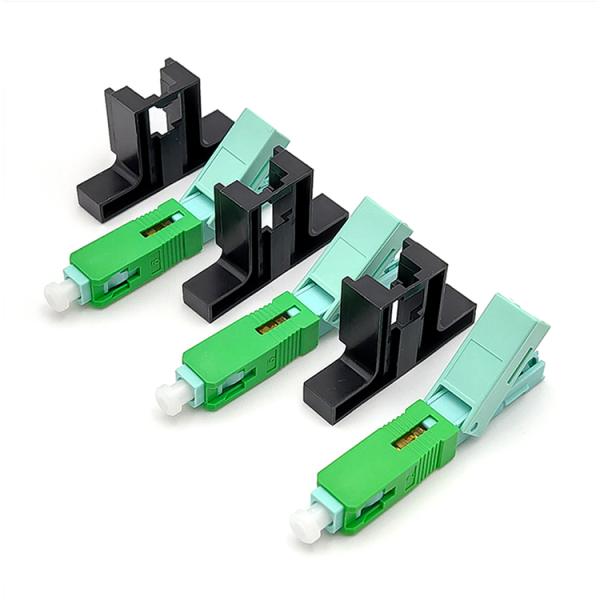

Single Mode Fiber SC Connector FTTH SC APC Fiber Connector
Single Mode Fiber SC Connector FTTH SC APC Fiber Connector
Single Mode Fiber SC Connector FTTH SC APC Fiber Connector
Single Mode Fiber SC Connector FTTH SC APC Fiber Connector
Specifications
Brand Name :
KNOFC or OEM
Model Number :
Fast Connector SC/APC
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs/week
Packaging Details :
Plastic box
Fiber Type :
Singlemode
Fiber Cable type :
3x2.0mm ftth drop cable
Insertion loss :
≤ 0.25dB
Return loss :
≥50dB
Application :
FTTH,LAN,PON&Optical CATV
Operating Temperature :
-30°C to+60°C
Description

Fiber Optic Fast Connector SC APC Single Mode Quick Connector

Description:

The fast connector designed for FTTH is a new generation of fiber connector used in assembly, fiber connector is a revolutional field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.We provide field installable high reliability fast connectors, our using our top quality ceramic ferrules with reliable and supperior optical performance,their cable tensiletes complied with telcordia GR-326-CORE.Using corning fiber and high temperature cycle test 24hours( -40-85℃) quality is stable working in poor condition.

Features:

1. No epoxy and polishing required;
2. No expensive tools required;
3. Quick and easy fiber termination;
4. Precision mechanical alignment insures low insertion loss;
5. Superior optical performance;
6. Streamlined component design, convenient operation;
7. Pre-installed, on-site assembly without end face grinding and consideration;
8. Uses proven, molded v-groove technologies;
9. Allow optical continuity to be verified by use of visual fault locator (VFL);
10. Fiber optic communication system and telecommunication networks;
11. Fiber optic data transmission;
12. CATV;
13. Optical access.

Single Mode Fiber SC Connector FTTH SC APC Fiber Connector
