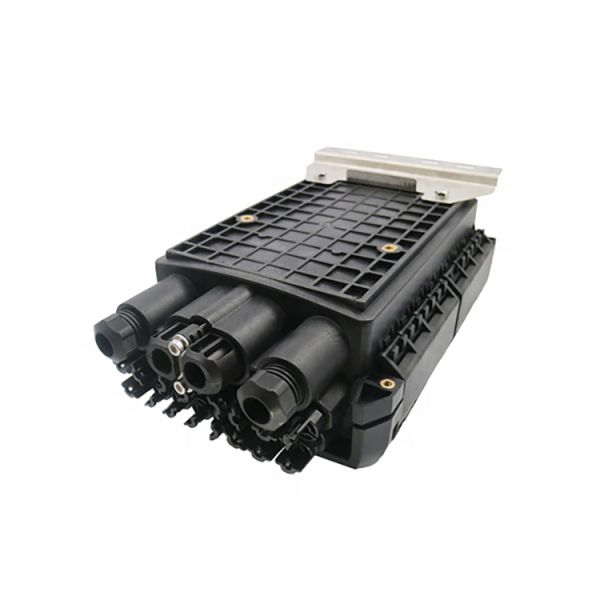

Waterproof FTTH 16 Port Fiber Optic Distribution Box
Waterproof FTTH 16 Port Fiber Optic Distribution Box
Waterproof FTTH 16 Port Fiber Optic Distribution Box
Waterproof FTTH 16 Port Fiber Optic Distribution Box
Waterproof FTTH 16 Port Fiber Optic Distribution Box
Waterproof FTTH 16 Port Fiber Optic Distribution Box
Specifications
Brand Name :
KNOFC or OEM
Model Number :
Fiber Optic Distribution Box 16 C
Certification :
CE / ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/week
Packaging Details :
box
Fiber count :
16 Core
Material :
ABS new material
IP Grade :
IP65
PLC splitter :
1x8 1x16
Installation way :
Pole mount or wall mount
Ports :
2 cable ports+16 drop cable ports
Size :
280x220x82mm
Application :
FTTX Network
Description

Cajas Nap de Distribucion Fibra Optica 16 Port FTTH Fibre Distribution Box​

Description:

Fiber optical terminal box, termination box is applicable PLC Splitter/ coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH. This fiber optic terminal box applies to the communications room and various network room wall installation or desktop installation. FTTH insert optical fiber terminal splitter box, arc, horizontal type.

Specification:

GJS-303 Fiber Optical Splice Box
Material PP+Glass Fiber
Size 380*245*130mm
Cable Ports 1pc un-cut cable port, 2pcs output cable ports, 16pcs drop cable ports
Max Capacity 96FO
Splice Tray 2 pcs 100%PC Material
Weight 4.5~5KG
Accessories Protecting Sleeves, labelling paper, insulation tape, abrasive paper, wall-mount kits, sealing tape, nylon tie, earthing wire, plastic wrench
Sealing Way Silicon Rubbersealing Ring
Installation Way Aerial, wall or pole-Mounting

Features:

1. ABS material used ensures the body strong and light.
2. Water-proof design for outdoor uses.
3. Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5. Ready for splitters: designed space for adding splitters.
6. Space saving! Double-layer design for easier installation and maintenances.
7. Lower layer for splitters and over length fiber storage.
8. Upper layer for splicing, cross-connecting and fiber distribution.
9. Cable fixing units provided for fixing the outdoor optical cable.
10. Protection Level: IP65.
11. Accommodates both cable glands as well as tie-wraps.
12. Lock provided for extra security.

Waterproof FTTH 16 Port Fiber Optic Distribution Box

Waterproof FTTH 16 Port Fiber Optic Distribution Box
